Place all device output pins into their inactive drive (high-impedance) state, allowing
external hardware to drive connections that the processor normally drives

The test-logic unit (Figure 18-1) is fully compliant with IEEE Standard 1149.1. It consists of the
test access port (TAP), the test access port controller, the instruction register (IR), and three data
registers (IDCODE, BYPASS, and BOUND). It also includes logic for generating necessary
clock and control signals.

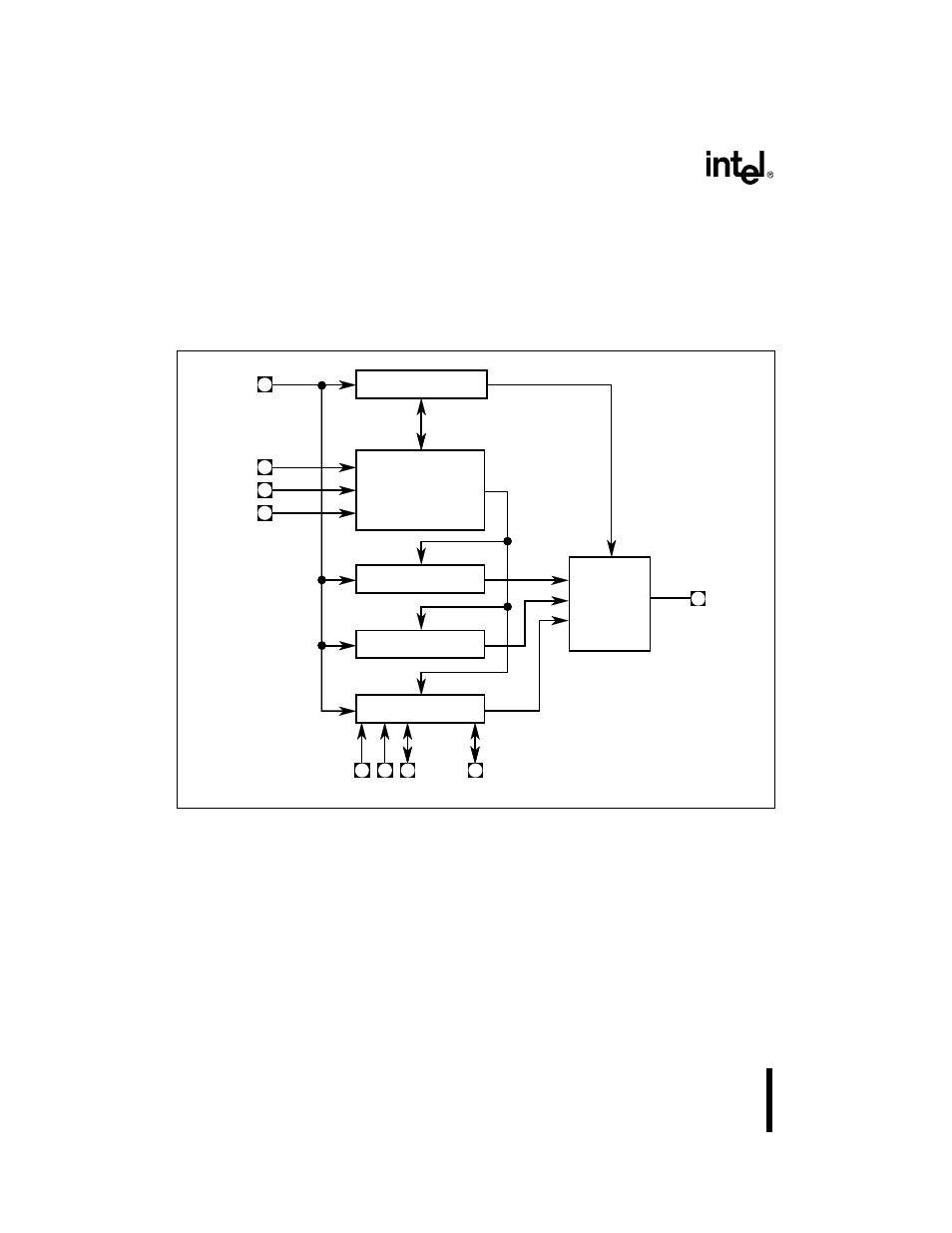

Figure 18-1. Test Logic Unit Connections

A2340-01

IR Register

TAP

Controller

IDCODE Register

BYPASS Register

BOUND Register

TRST#

TDO

TCK

TDI

Output

Stage

. . . . . .

TMS
