TIMER/COUNTER UNIT

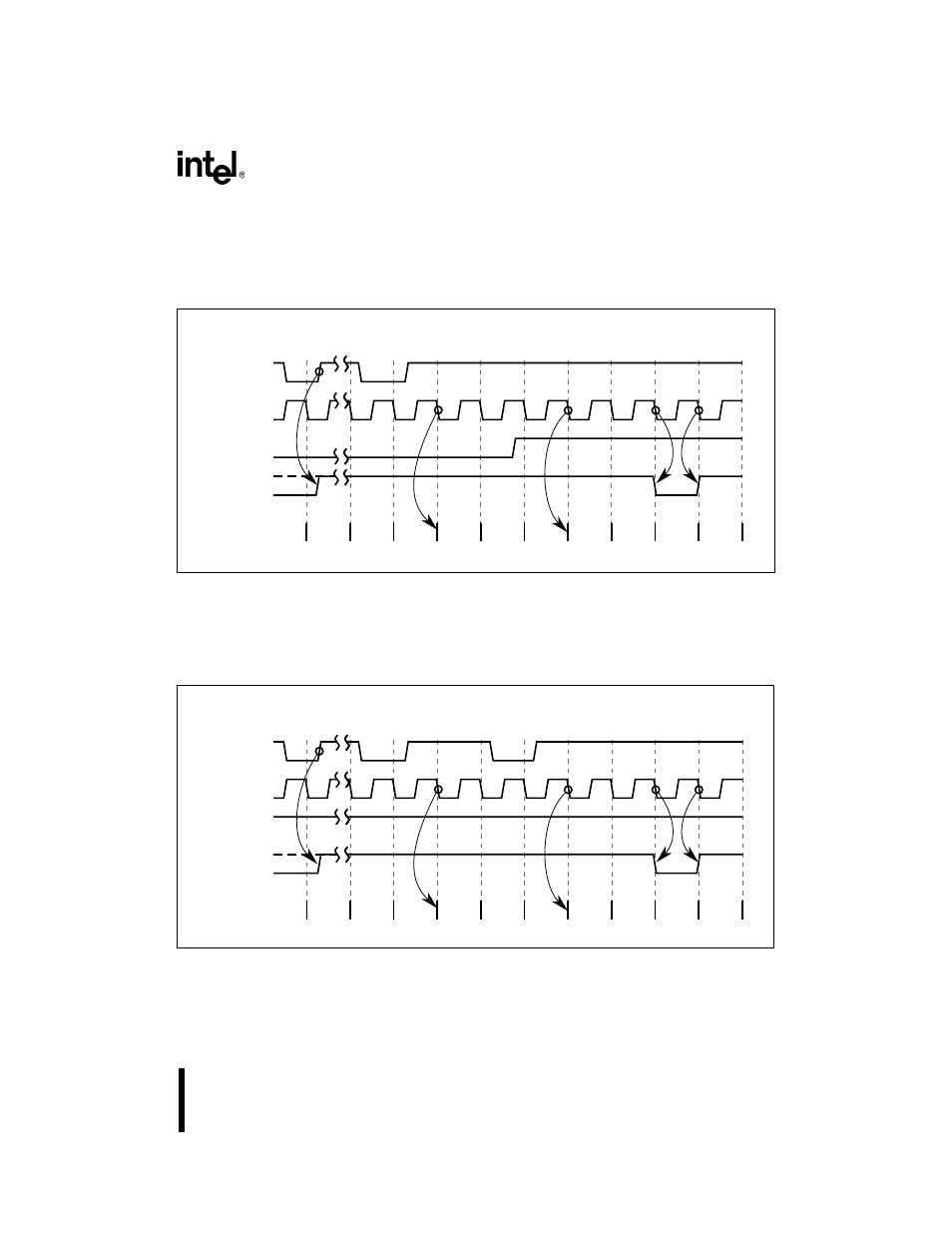

Figure 10-17 shows suspending the counting sequence. A low level on GATEn causes the counter
to suspend counting (both the state of OUTn and the count remain unchanged). A high level on
GATEn resumes counting.
Figure 10-17. Mode 4 – Disabling the Count
Figure 10-18 shows writing a new count. On the CLKINn pulse following the new count write,
the counter loads the new count and counting continues from the new count.
Figure 10-18. Mode 4 – Writing a New Count
A2402-01
? ? ? ? 0003 0003 0003 0002 0001 0000 FFFF
Writes to
Counter n
CLKIN n
GATE n
OUT n
Control
Word = 18H
Count
Count = 3
? ? ? ? 0003 0002 0001 0002 0001 0000 FFFF
Writes to
Counter n
CLKIN n
GATE n
OUT n
Control
Word = 18H
Count
Count = 2 Count = 3
