16-3
INPUT/OUTPUT PORTS

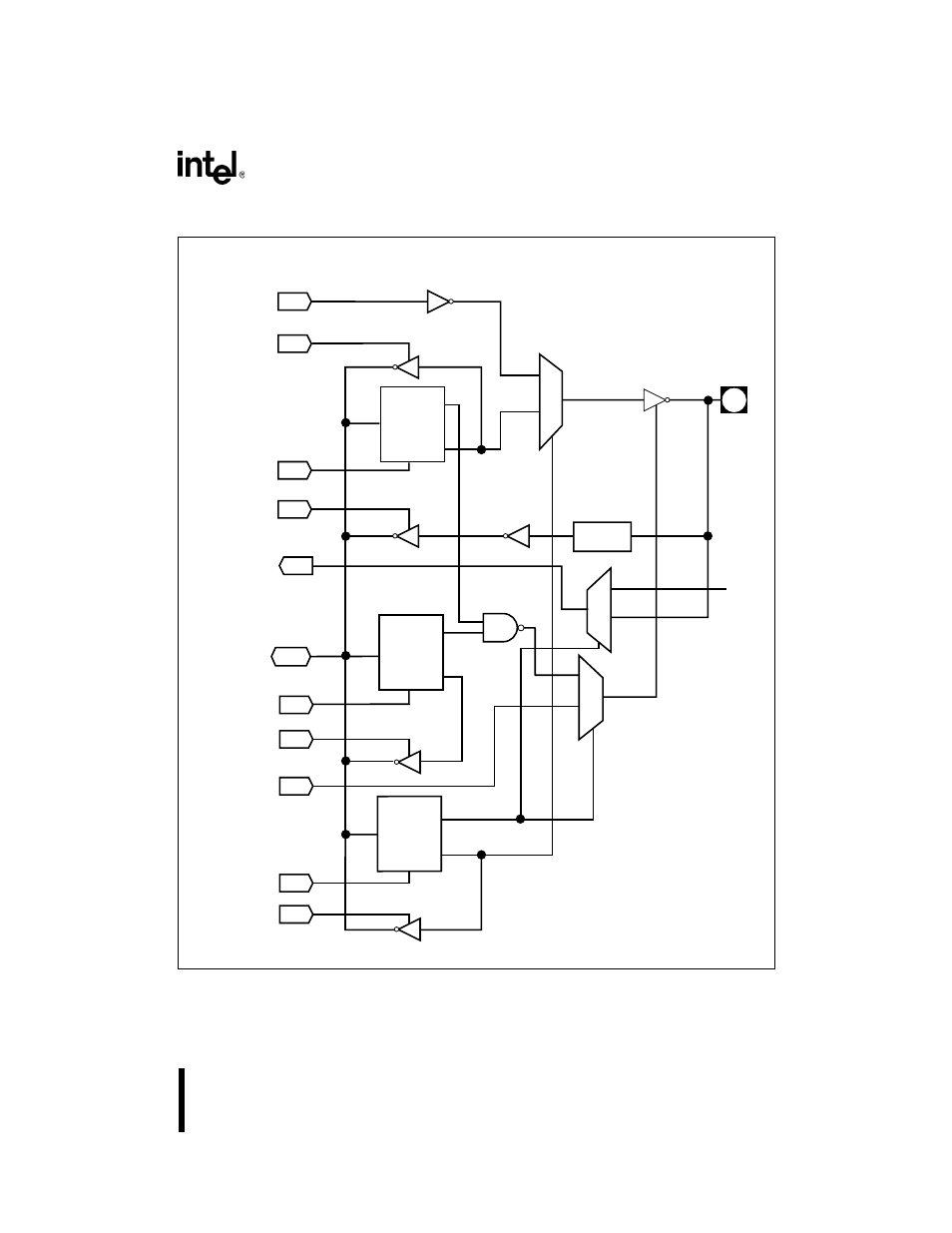

Figure 16-2. Logic Diagram of a Bi-directional Port
0
1
S
Q
D
Q#
CK
P n LTC
From Internal
Peripheral
Read Port
Data latch
Write Port
Data Latch
Read Port
Pin State
To Internal
Peripheral
Write Port
Direction
Read Port
Direction
Write Port
Control
Read Port
Control
Internal Data
Bus (F-Bus)
SYNC
Pin
A3266-01
Q
D
Q#
CK
P n DIR
P n PIN
V
CC
or
VSS
†
0
1
S
0
1
S
Q
D
Q#
CK
P n CFG
From Internal
Peripheral
Direction
Control
† Depends on peripheral's inactive state
