6-43

BUS INTERFACE UNIT

6.6.4

Paged DRAM Interface

External logic is required to interface the Intel386 EX processor to DRAM devices, as shown in
Figure 6-18. The PLD generates the RAS# and CAS# signals.

If RAS#-Only Refresh is being performed (using the Refresh Control Unit of the processor), then
during a Refresh Cycle, the PLD enables the Column Address Buffer and asserts the RAS# signal
(shaded sections in the figure). Refer to Chapter 6, “BUS INTERFACE UNIT,” for more infor-
mation.

A single multiplexer can be used instead of the separate row and column address buffers.

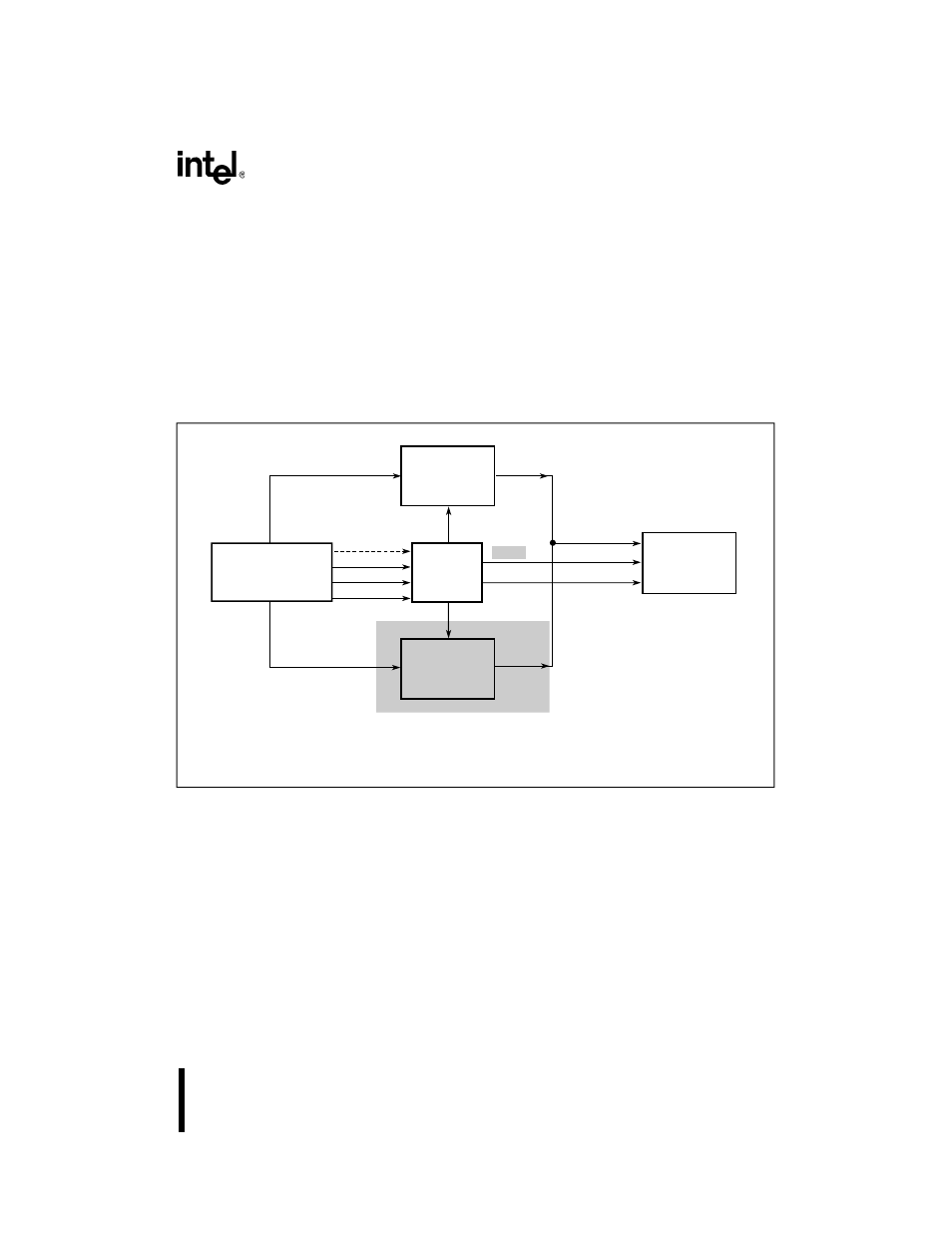

Figure 6-18. Intel386 EX Processor to Paged DRAM Interface

Intel386™ EX

Embedded Processor

Row

Address

Buffer

PLD

Upper Address

Row
Address

Paged
DRAM

Column
Address

Address

Lower Address

OE_ROW#

OE_COL#

RAS#

CAS#

BHE#

BLE#

A3264-02

Column

Address

Buffer

REFRESH#

Note:
A single mux can be used in place of the row and column address buffers.
