Flash Programming
NVMC Graphical User Interface
704 Microcontrollers Debugger Manual

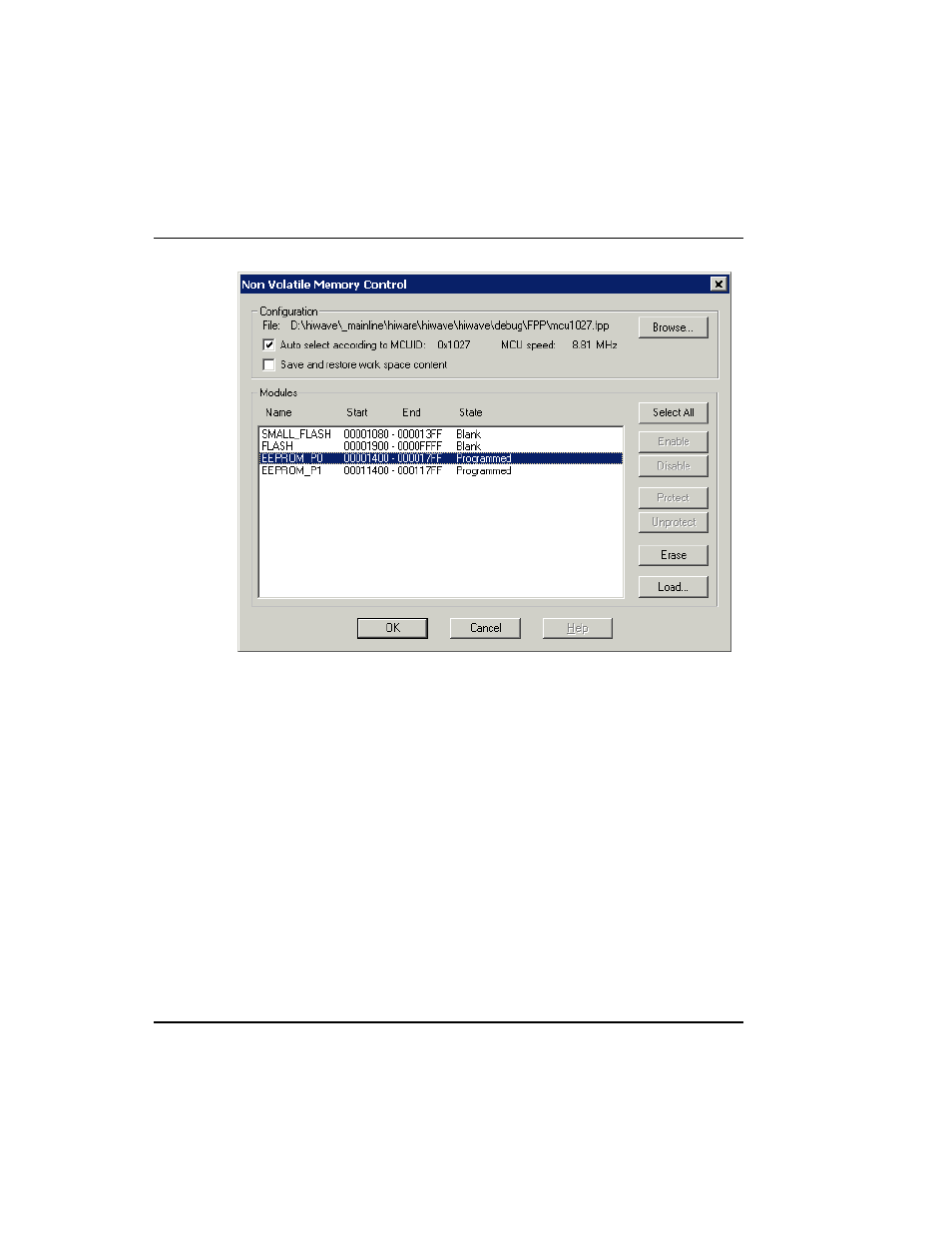

Figure 32.6 Non-Volatile Memory Control Dialog Box
For each block, the dialog box has a line composed of the following fields:
• Name — the module name
• Start — the module start address
• End — the module end address
• State — the modules states, such as disabled, enabled, blank, programmed,
protected, unprotected
Possible state combinations are:
• Bad Device (the interface was unable to detect a correct device)
• Disabled (one or all modules are disabled)
• [Enabled] / / [Unprotected | Protected]
The NVMC dialog box displays only meaningful states. For example, it displays Enabled
only if it is possible to disable a module. It displays Unprotected only if it is possible to
protect a module.
The Configuration group identifies the current.FPP parameter file. This group also
includes the Auto select according to MCUID checkbox. The Configuration: FPP
loading section explains this option.
