HC08 Full Chip Simulation
Configuration Procedure
304 Microcontrollers Debugger Manual

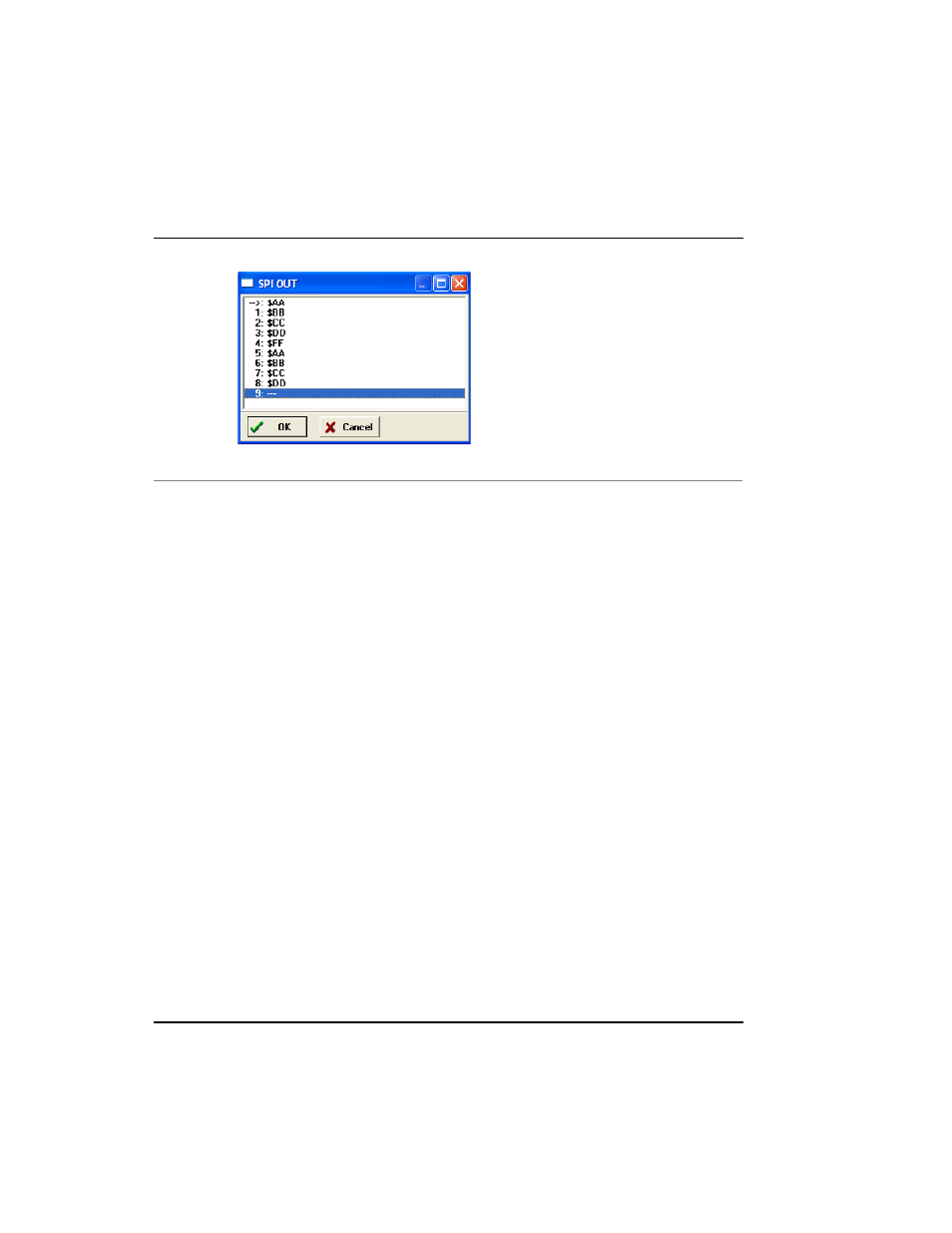

Figure 11.50 SPI OUT Buffer Display
SPFREQ Command
The SPFREQ command lets the user set the frequency of the SPI slave input clock. If the
SPI is configured for the slave mode, this command allows the user to enter the number of
cycles per one input clock period. If no value is given, a window appears and the user
is prompted for a value. If this command is not used, then the clocking is assumed to be set
by the SPI control register.
Syntax
>SPFREQ []
Where:
The number of cycles for the period of the input clock.
Example
>SPFREQ 8
Set the period of the input slave clock to 8 cycles (total shift = 8*8 cycles per bit =
64 cycles)
FCSTimer Interface Module
In FCS Mode, this module simulates all functionality of the Timer Interface module,
including:
• Input capture/output compare
• Pulse width modulation
• Internal or external clock input
• Free running or modulo up count operation
