ColdFire V1 Full Chip Simulation Connection
FCS Visualization Utilities
614 Microcontrollers Debugger Manual
Monitor Component

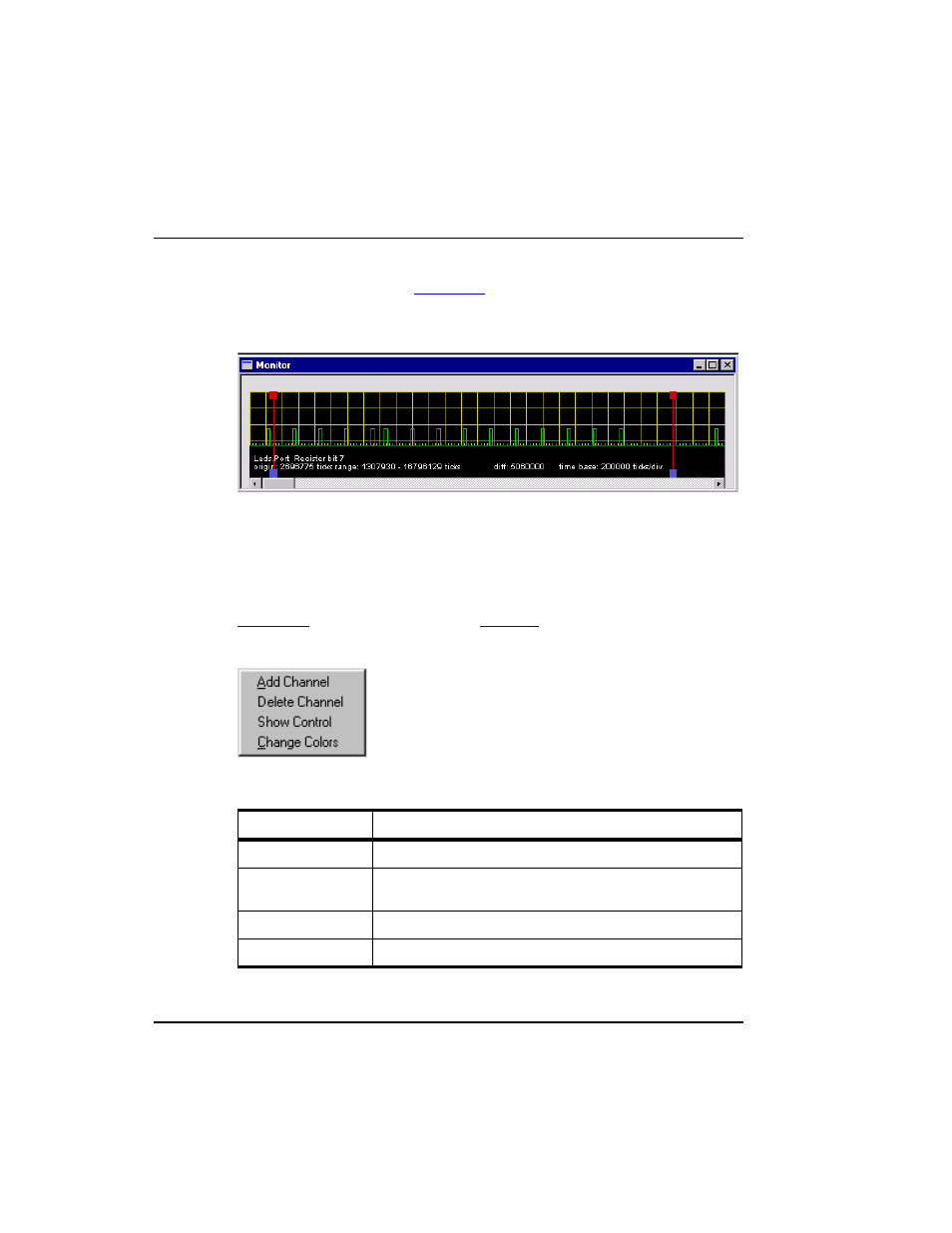

The Monitor window shown in Figure 28.38 is a basic oscilloscope that displays the result
of debugger objects.
Figure 28.38 Monitor Window
The purpose of this component is to display the results of debugger objects observation in
a graphical format (similar to an oscilloscope). The monitor component can save the list of
state modifications and associated time in a file.
Monitor Menu
Figure 28.39 shows the Monitor menu and Table 28.7 describes its entries.
Figure 28.39 Monitor Menu
Table 28.7 Monitor Menu Description
Menu Entry Description
Add Channel Opens the dialog box to create a new Channel in the Monitor.
Delete Channel Deletes the Selected Monitor Channel (click on it in the monitor
view)
Show Control Opens the Settings dialog box to change the time base.
Change Colors Changes colors from the selected Channel.
