HC08 Full Chip Simulation
Configuration Procedure
256 Microcontrollers Debugger Manual
This command is extremely useful for verifying specific timings of a given event, running
until a given event is complete, or just before it completes to enable stepping through the
event or any application where cycle-timed execution is desired.
Initialize Input Ports On Startup
The Initialize Input Ports on Startup option initializes all simulated inputs to $00 when
the software is started, or when the Device Mode or Debug Target is switched. This
initialization doesn't apply to a reset command. When you change this option, the new
state takes effect the next time HiWave is started (or Device Mode/Debug Target is
switched).
View Register Files Option
The View Register Files option in the HCS08FCS Menu also gives you the option of
running the register file viewer/editor. If register files are available for the device that you
have chosen, the Choose a Register Block dialog box (see
Figure 11.4 ) is opened. You
may also open it by entering the R command in the Command Window command line.

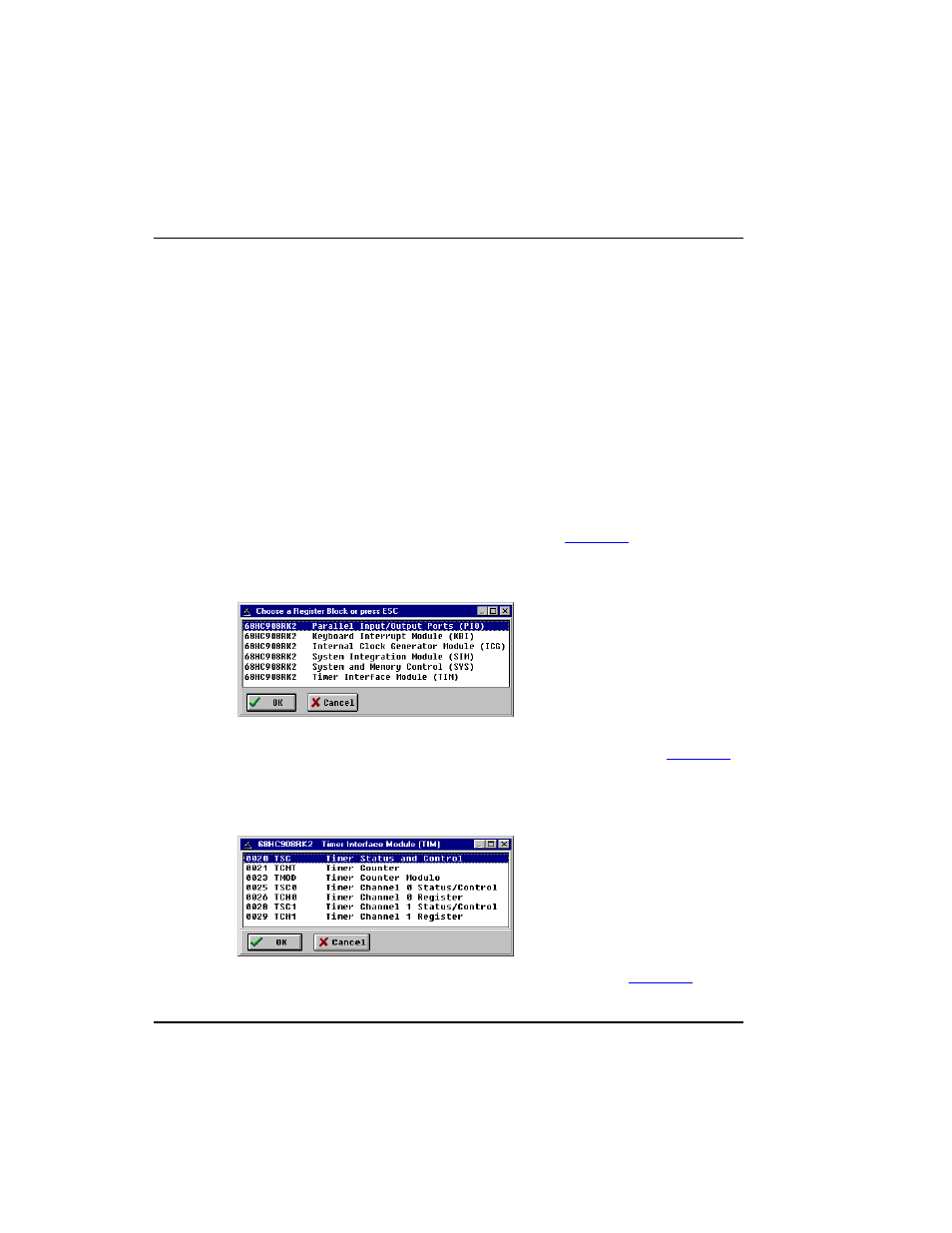

Figure 11.4 Choose A Register Block Dialog Box
If register files have been installed on the host computer, selecting a block brings up the
Register Block register listing in the Timer Interface Module dialog box (see
Figure 11.5 ),
which shows a list of the associated registers, their addresses, and their descriptions. This
begins interactive setup of system registers such as I/O, timer, and COP watchdog.
Figure 11.5 Timer Interface Module Dialog Box - Register Listing
Selecting a file in this dialog box brings up the Register Window (see Figure 11.6 ), which
displays the values and significance for each bit in the register. The registers can be
