ColdFire V1 Full Chip Simulation Connection
FCS Visualization Utilities
603 Microcontrollers Debugger Manual
ADC/DAC Setup Dialog Box
The dialog box shown in Figure 28.23 allows you to define the port and address or select
one port of the five proposed. These ports are used when this component functions with
the
Programmable IO_Ports Component .

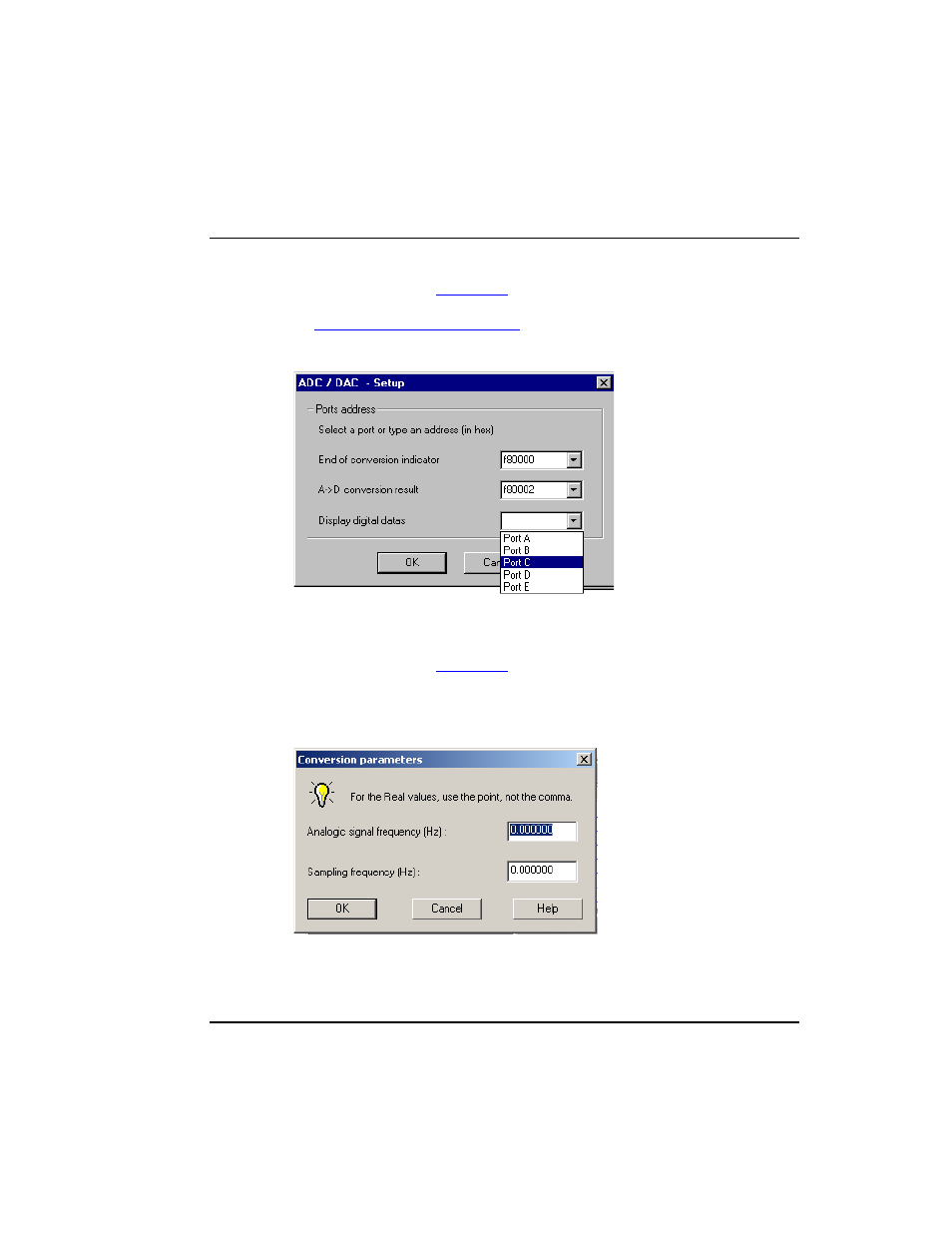

Figure 28.23 ADC/DAC - Setup Dialog Box
Conversion Parameters Dialog Box
The dialog box shown in Figure 28.24 allows you to choose the analog signal frequency
generated by the sinus generator and the sampling frequency. The choice of these two
frequencies internally initializes the timer, which gives the conversion orders.
Figure 28.24 Conversion Parameters Dialog Box
Now you can start the conversion with Start conversion menu entries.
