Fuel Point PLUS Vehicle Installation and Configuration Manual 69

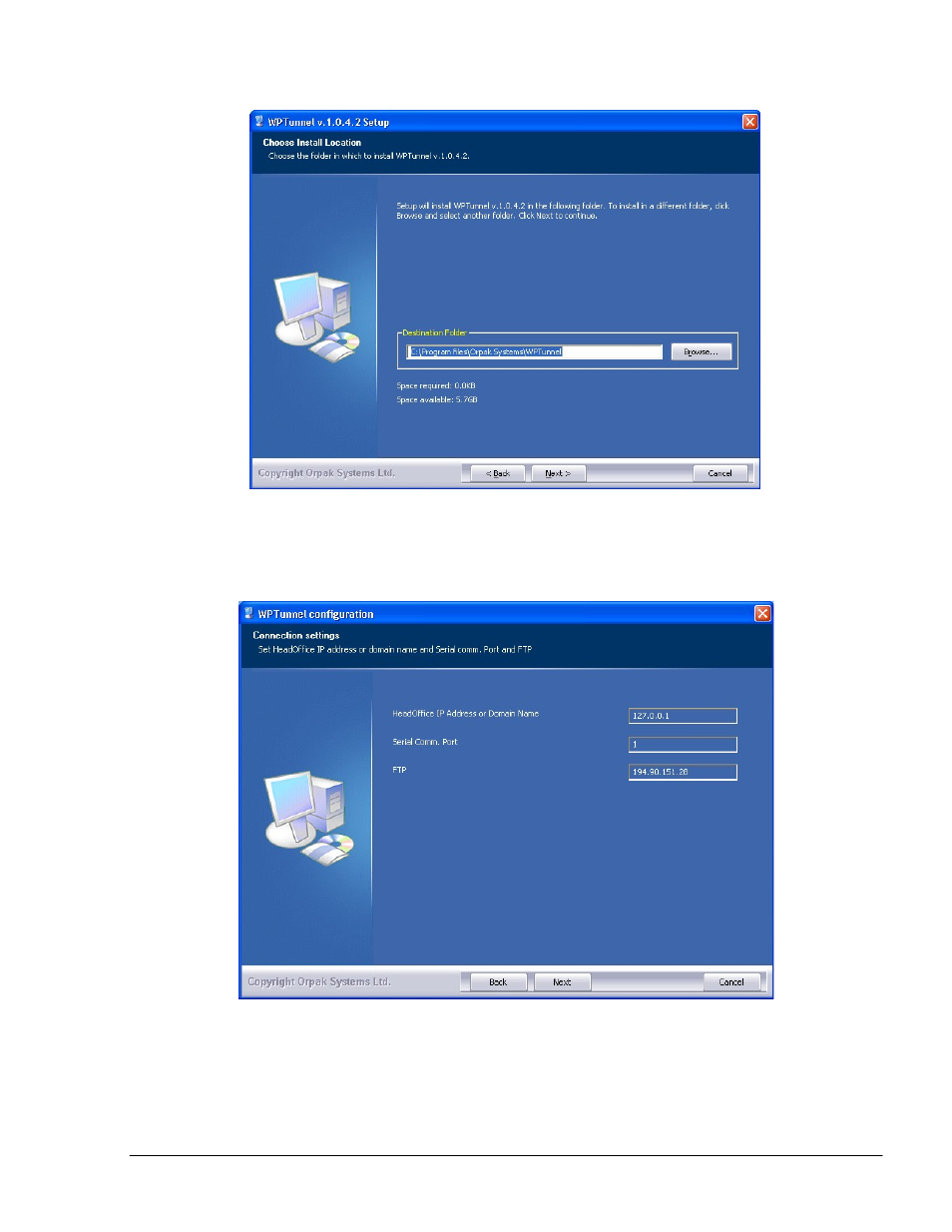

Figure 4-6. WP Tunnel Setup Wizard Choose Install Location Screen
4. Click Next to install the files in the default folder, or click Browse to choose another destination
folder and then click Next. The Connection settings screen appears (see Figure 4-7)
Figure 4-7. WP Tunnel Setup Wizard Connection Settings Screen
5. Enter the Head Office IP Address. In the example above, WP Tunnel is installed in FHO PC, so
the local Host IP address (127.0.0.1) is entered
6. Enter the Serial Com port to which the WP device is to be connected. Click Next
