Keypad operation – AMT Datasouth Journey II User Manual
Page 34
24
Section
2
Keypad Operation
2.1 Keypad Configuration
The Journey II Desktop user interface consists of a 12-button keypad; a 2 line
by 24 character wide, back-lit, Liquid Crystal Display (LCD); and one green
Light Emitting Diode (LED) indicator.
The user interface is used to display the current status of the printer, configure
the printer, recover from error conditions, perform cleaning functions, and
update the printer’s internal software.

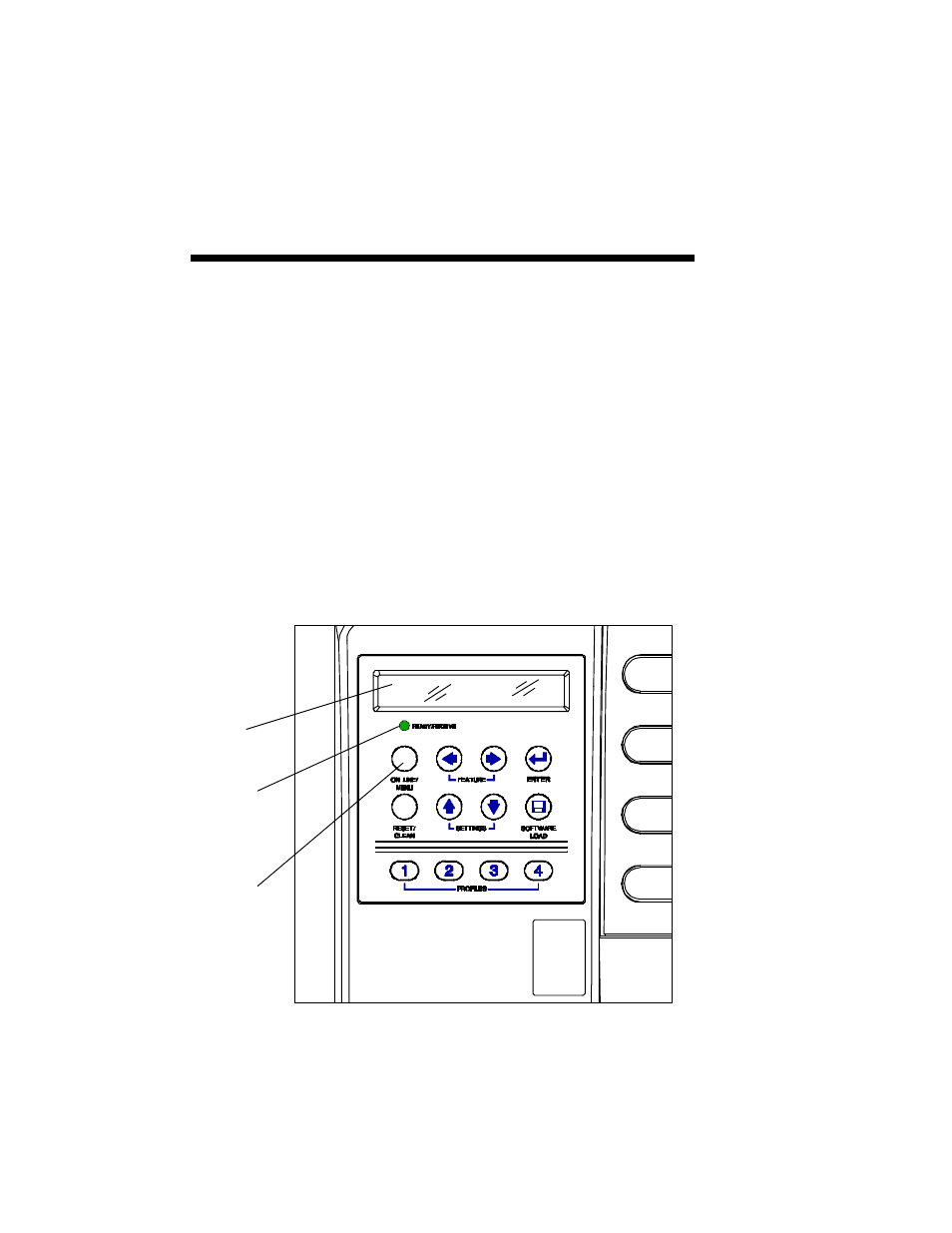

Refer to the illustration below to locate the keys, the LCD panel, and the LED
indicator.
Figure 2-1. Keypad Configuration
LCD
LED
KEYS
(12)
