Leica mojo3D, mojo3D Enhancements 351
steer remains enabled. However, if the drift from the wayline is greater than
this value, then auto-steer is disabled.
Select or deselect Enable GL1DE
TM

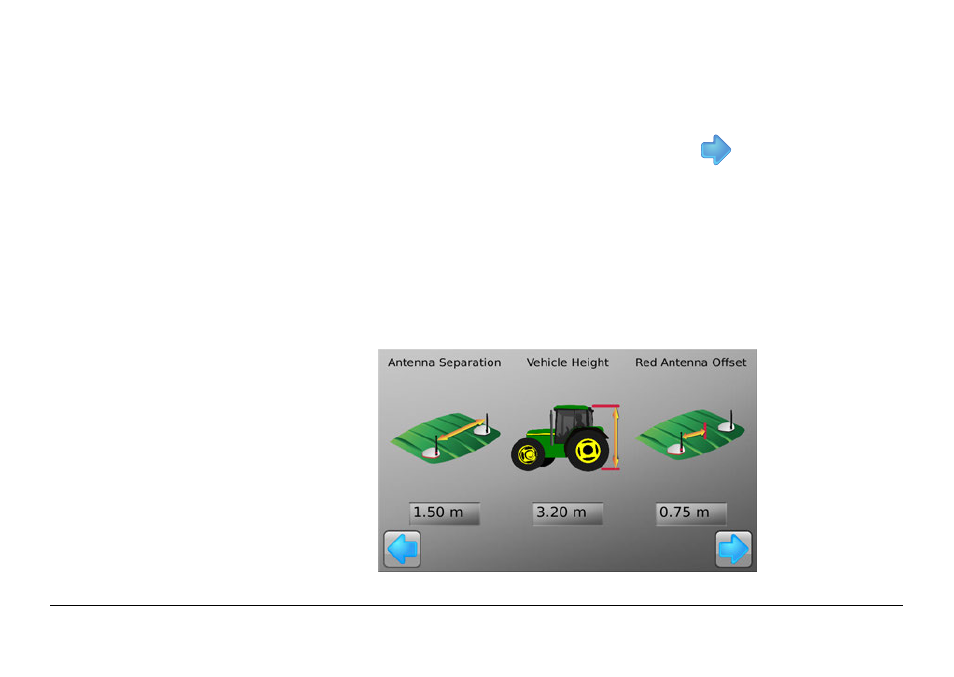

Fallback and tap the button. The Antenna
Separation/Vehicle Height/Red Antenna Offset screen appears.
60. Measure the distances shown by the image, then tap the measurement value
field under the relevant image.
Note that for a mojoXact Plus, only the red antenna is mounted, so there is no
Antenna Separation value, Ideally the red antenna will be mounted at the center
front resulting in the Red Antenna Offset having a value of zero.
