Leica mojo3D, mojo3D Enhancements 309
Installation To install single-section control, carry out the following steps:

The relay has a normally open contact which is closed when the mojo3D
switches the output on. The mojo3D can be configured to set the relay to
normally closed operation by selecting Planter as the Implement Mode.

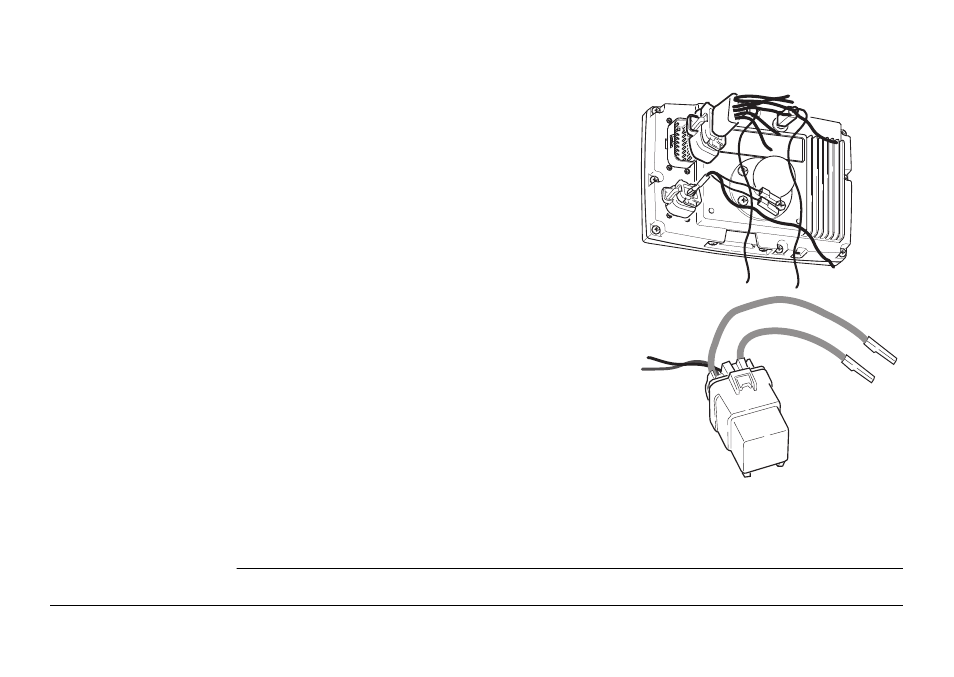

1. Connect the port expansion cable to the
mojo3D.
2. Connect two wires from the relay to the
equipment which is to be switched.
mojo3D_013
mojo3D_020
