Leica mojo3D, mojo3D Enhancements 329
A.4.3 Antenna Installation
Position of the GPS
antennas 1. First find the locations that allow the antennas to have a large separation and be
as close to the front of the tractor as possible.
2. Mark out these locations on the roof of the tractor.

• The antennas must be square with one another, meaning that one antenna
should not be closer to the back of the vehicle than the other.
• Optional Antenna Adaptor brackets are available.
Visit www.virtualwrench.com for more information.

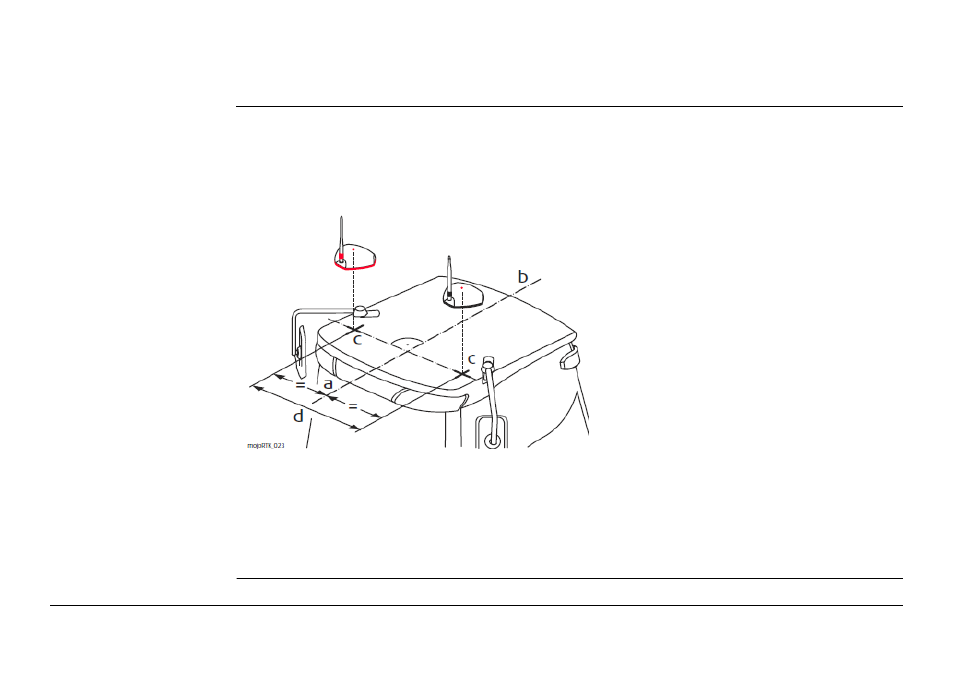

a) Red (Black) antenna offset
b) Center line
c)
Measurement dots
d) Antenna separation, minimum
distance 80 cm/32”
