Prepare the
GeoPRO antenna 1. Clean the cab roof to prepare for the installation of the GeoPRO antenna.
Approved cleaning products are denatured alcohol and Windex
®
glass cleaner.

Start all antenna cable connections by hand before using the wrench to
tighten. Do not overtighten the cable connections. Run the threads to the
end and tighten only 1/8 turn more.
2. Connect the cable with the small connector to the GeoPRO antenna.

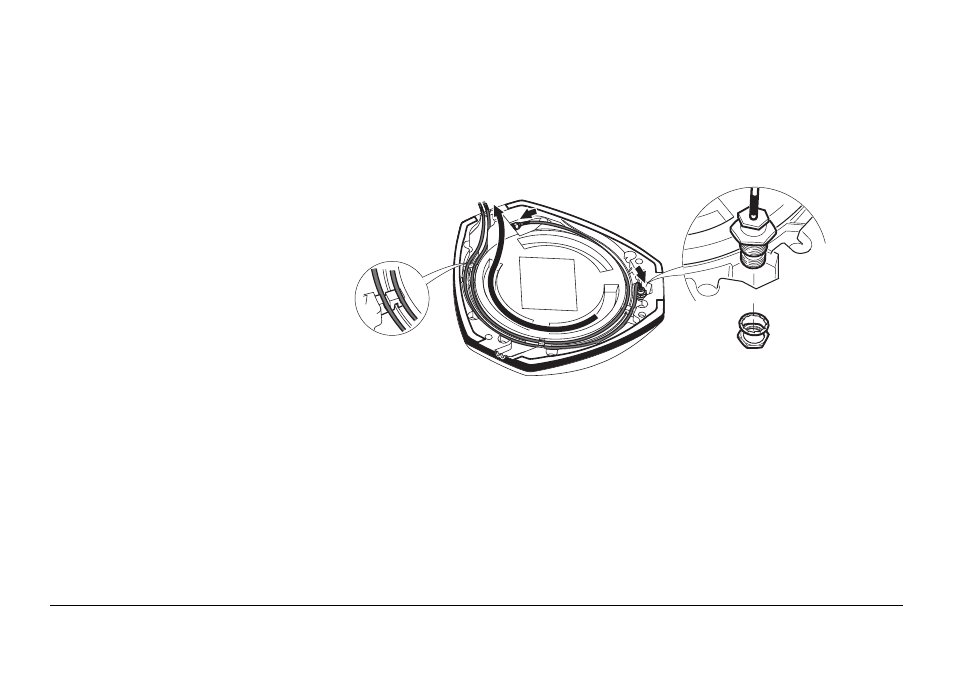

3. Insert the thread of the whip antenna cable as shown, bring on the washer and
fix with the nut.
4. Run the cables through the circular slot provided on the bottom side of the cover.
Align each cable with the slot and push it into the slot using the antenna cable
grommets and antenna cable supports provided.
5. You have several options for how you want the cables to exit the antenna cover.
Choose whatever works best for your application.
2
3
4
5
mojo3D_022
