7.2 Initial commissioning
7 Commissioning
7.2.2 Adjustment template with bracket
Adjustment template with bracket 7- Inbetriebnahme_Erstinbetriebnahme_Justageschablone_mit_Traeger
An adjustment template screwed to a suitable bracket is also available
as an accessory. This bracket is not supplied with the system.
 Fasten the template to the bracket using half length taper-grooved
dowel pins and cylinder head bolts (see illustration).

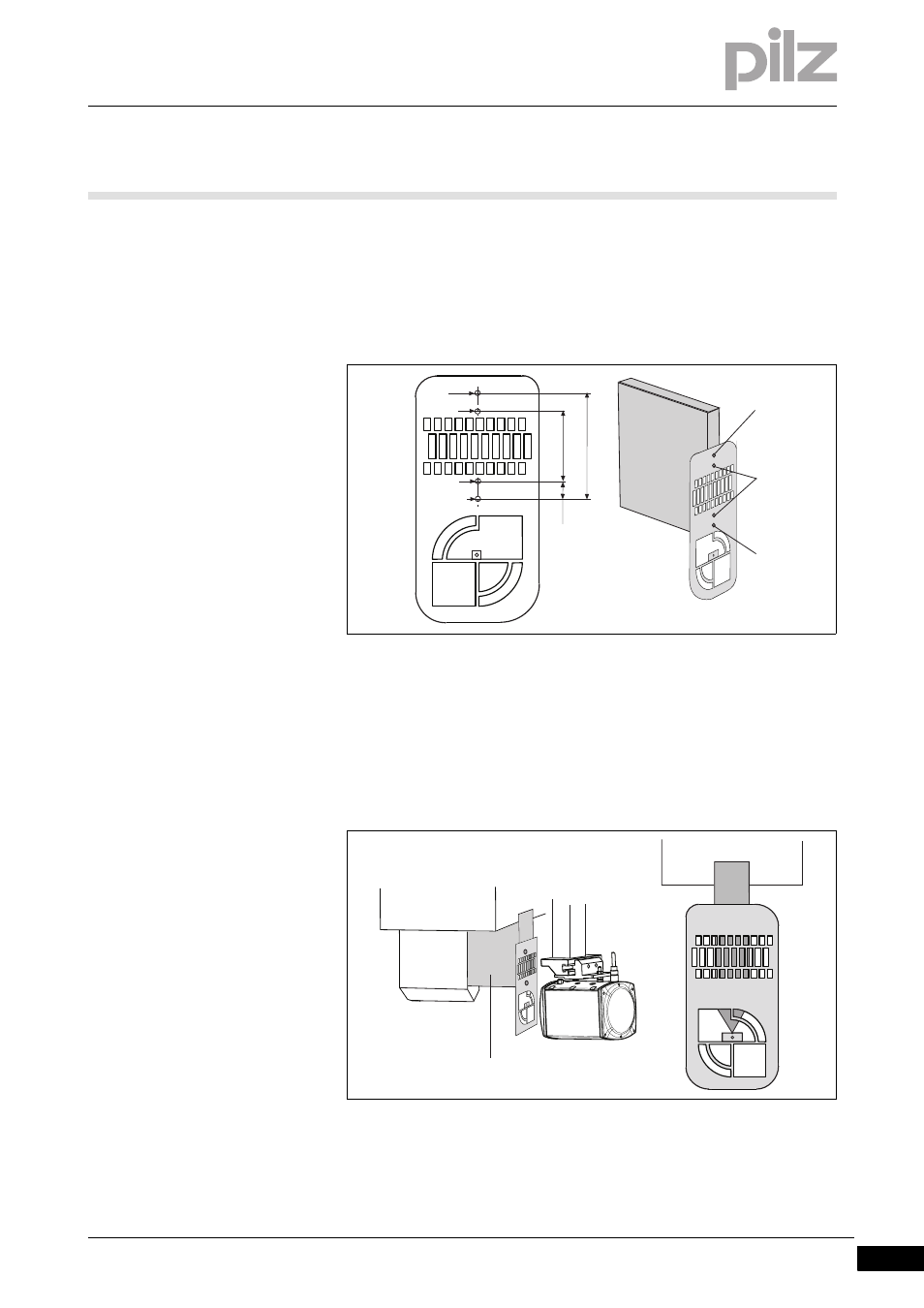

Fig. 7-11: Adjustment template to attach to bracket
 1: Ø 3 mm DIN 1472 half length taper-grooved dowel pin
 2: M3 x 10 cylinder head bolts
 3: Ø 3 mm DIN 1472 half length taper-grooved dowel pin
 Attach the bracket to the upper tool clamp.
Fig. 7-12: Adjustment template with bracket
 1: Bracket
10
45 65
Ш 3
+0,1
Ш 3,4
Ш 3,4
Ш 3
+0,1
1
3
2
1
