4.4 Description of the units
4 Function Description
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
4-12

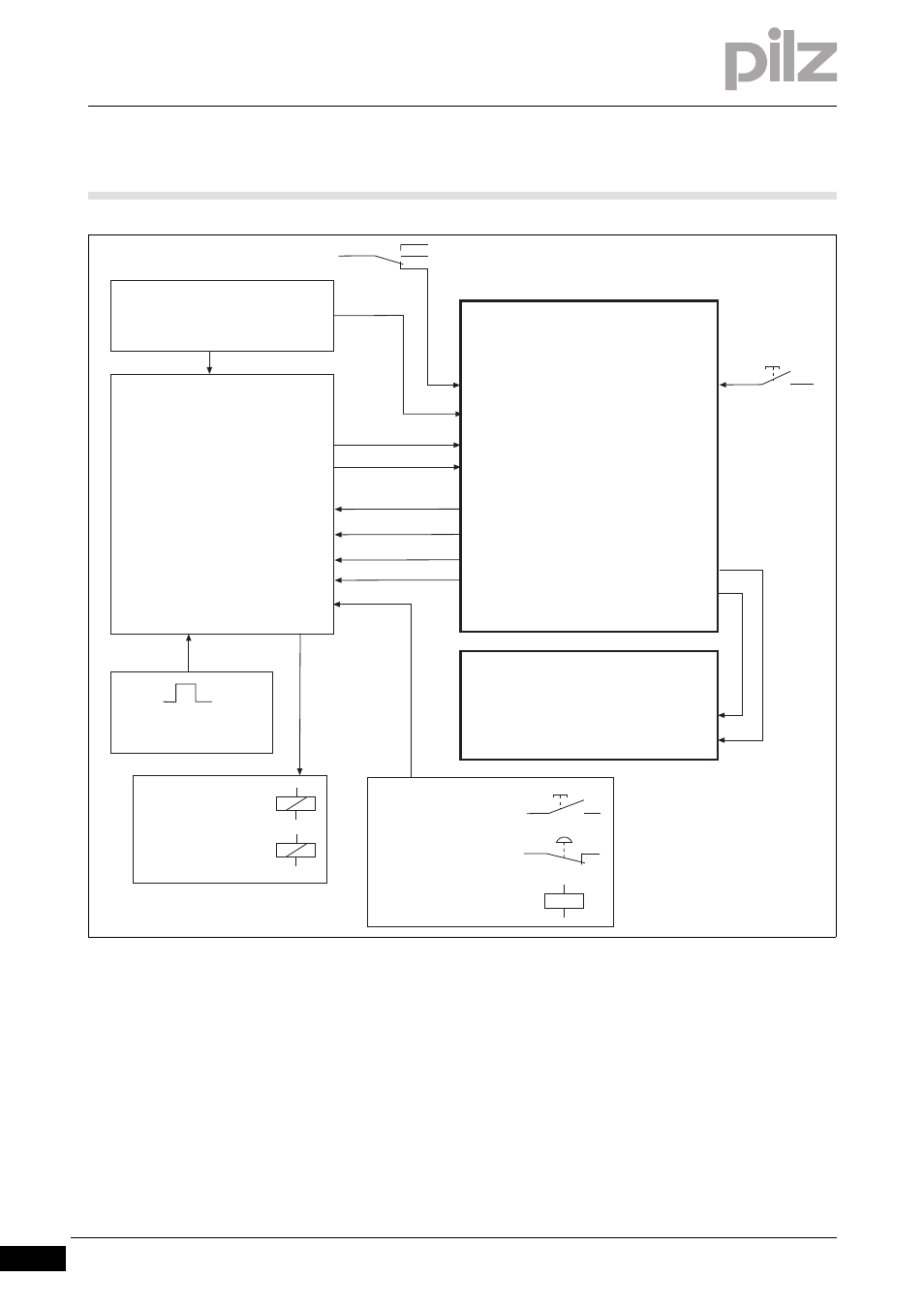

Fig. 4-5: Overview of overall system
Funktion_Geraete_Sender_Empfaenger
The transmitter and receiver form one unit. The receiver contains all the
inputs and outputs required for communication with the CNC controller,
programmable safety system, transmitter and press brake. The trans-
mitter merely contains the inputs for controlling the light source.
Funktion_Geraete_Schutzfeldmodus
Power Off
System-Init
Protected field mode
Acknowledge-
ment of reduced
protected field
Inputs
Outputs
OSSD 1
OSSD 2
Overrun measurement
TRM_ON
TRM_SYNC
PSENvip Receiver
PSENvip Transmitter
TRM_ON
TRM_SYNC
Safety system
e.g. PSS
CNC Controller
Protected field mode
Setup
Creep speed signal
from press brake
Foot switch
E-STOP
E-STOP contactor
User program
Safety valve
Prefill valve
