7.2 Initial commissioning
7 Commissioning
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
7-12
In the case of an invalid adjustment (right-hand diagram), the Out of ran-
ge
message will also appear.
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_5_mittig

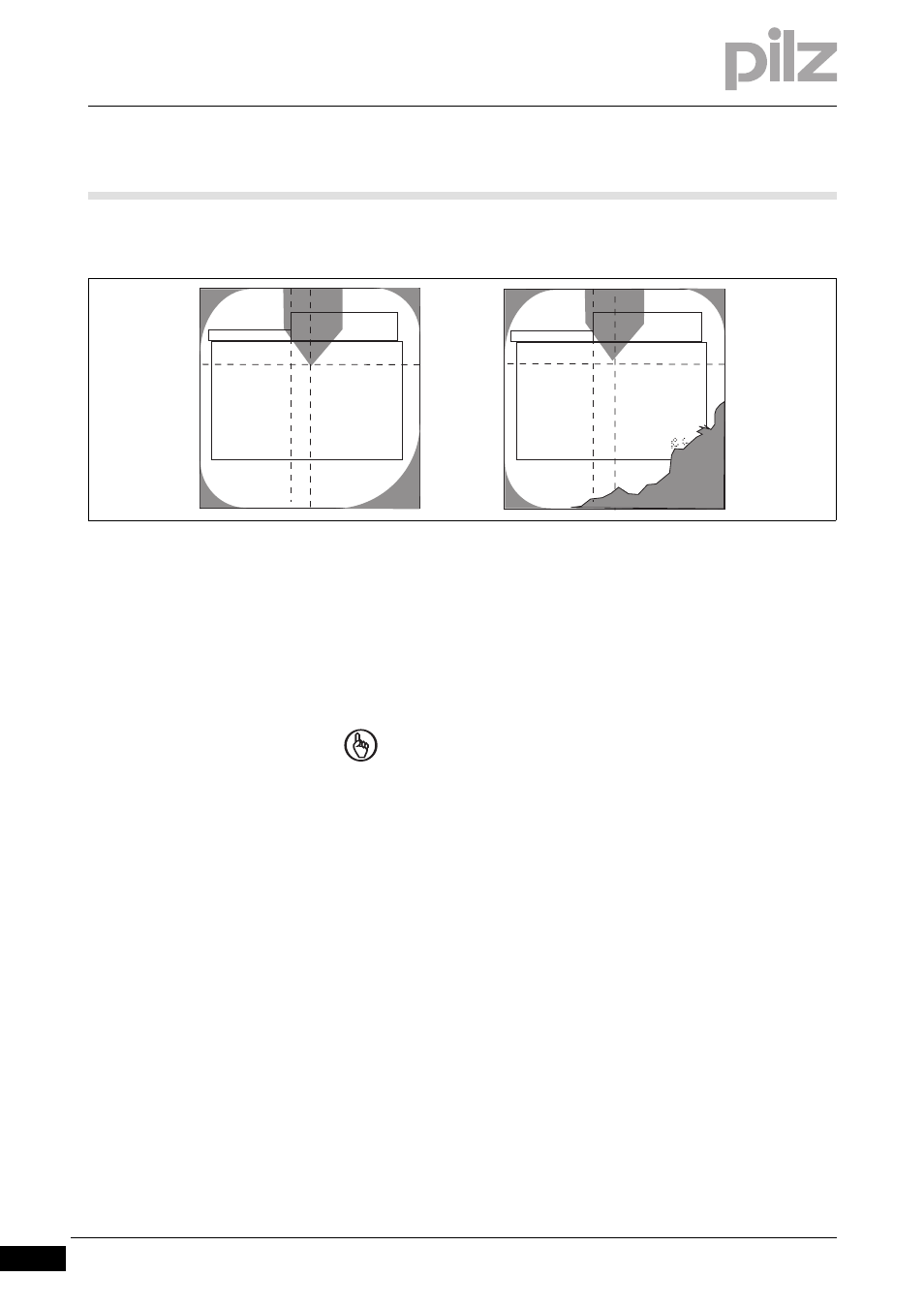

Fig. 7-10: Checking the adjustment image with superimposed guide
frame
Inbetriebnahme_Erstinbetriebnahme_Empfaenger_ausrichten_6  You can switch to the adjustment image without guide frame by
pressing again.
 Exit the adjustment using the key.
The transmitter and receiver are now mechanically aligned.
NOTICE
After you have aligned the transmitter and receiver you will still
need to carry out the step for "Adjustment during tool change"
(see section entitled "Adjustment during tool change").
Out of range
