4.4 Description of the units
4 Function Description
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
4-20
Funktion_Display_Abbildung
Display

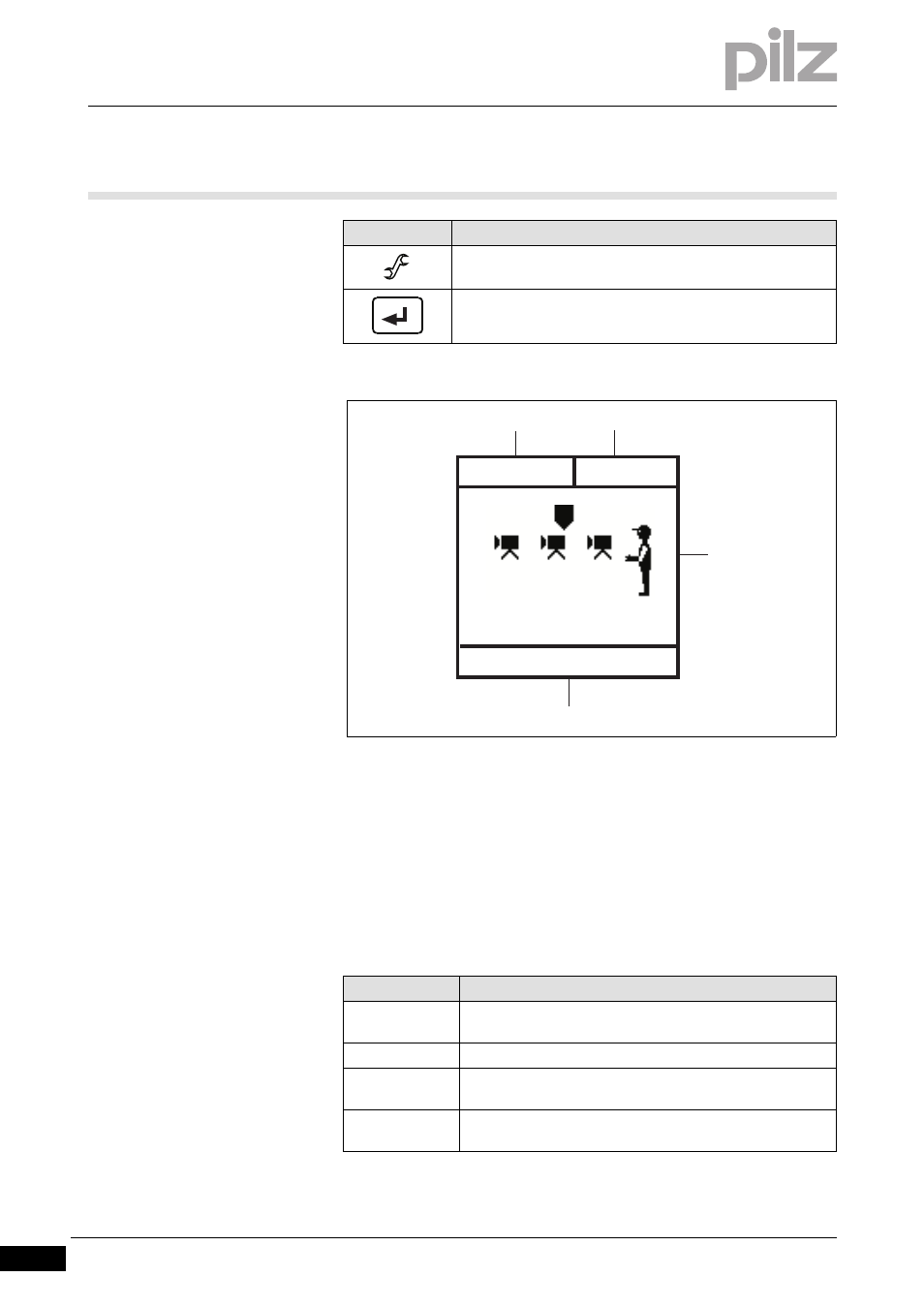

Fig. 4-10: Information on the display
The display is divided into 4 segments:
 1: System status
 2: Status of the OSSD
 3: Input and display field
 4: Operating status
Funktion_Display_Systemzustand
System status
Funktion_Display_OSSD
Call up tool change operating mode directly
Confirm entry or menu option selection
Status Description
SYSTEM OK The PSENvip is performing the specified operating mode
without error, see table: "Operating status"
TEST The PSENvip is performing calibration and internal tests.
STANDBY The PSENvip is deactivated when the press is in setup
mode.
ERROR An error has occurred (HOLD, STOP, FATAL). See
Chapter 9, "Diagnostics and Troubleshooting"
Key Description
SYSTEM OK OSSD ON
NORMAL OPERATION
