Data Analysis Windows
102
•
QC Rule Summary. Shows the selected QC rule and highlights wells that fail the rule

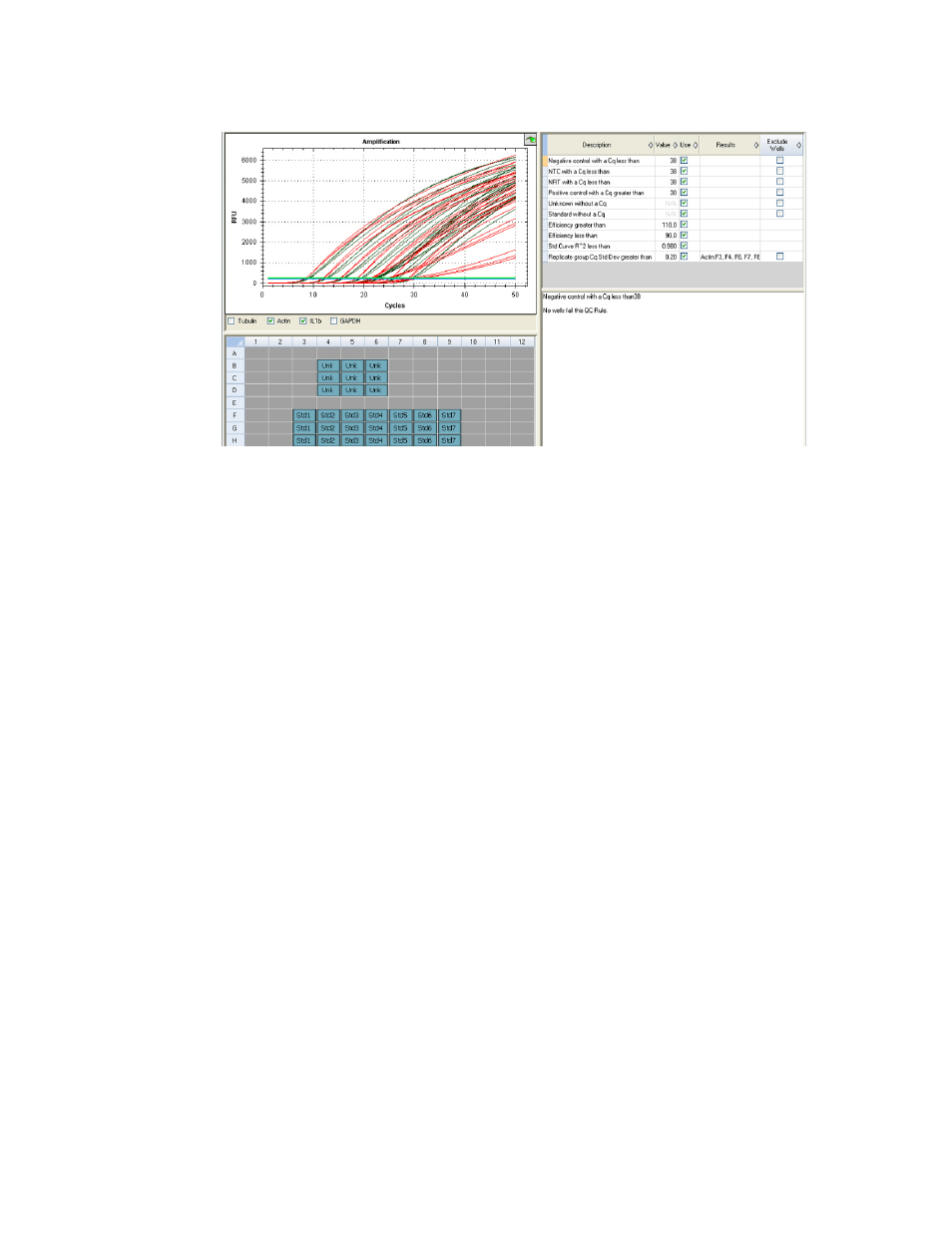

Figure 76. QC tab layout.
Excluding Wells that Fail QC
Wells failing QC criteria are listed in the results column of the QC rules table and in the
summary pane. These wells can be excluded or included in analysis by checking or un-
checking the appropriate Exclude Wells checkbox.
Run Information Tab
The Run Information tab (Figure 77) shows the protocol and other information about each run.
Open this tab for the following options:
•
View the protocol
•
Enter and edit Notes. Enter or edit notes about the run by typing in the Notes box
•
Enter and edit data ID for the run by typing in the ID box
•
View the Other section to see events, such as error messages, that might have
occurred during the run. View these messages to help troubleshoot a run
TIP: Right-click the Protocol to copy, export, or print it. Right-click the Notes, ID, or
Other panes to undo, cut, copy, paste, delete, or select the text.
