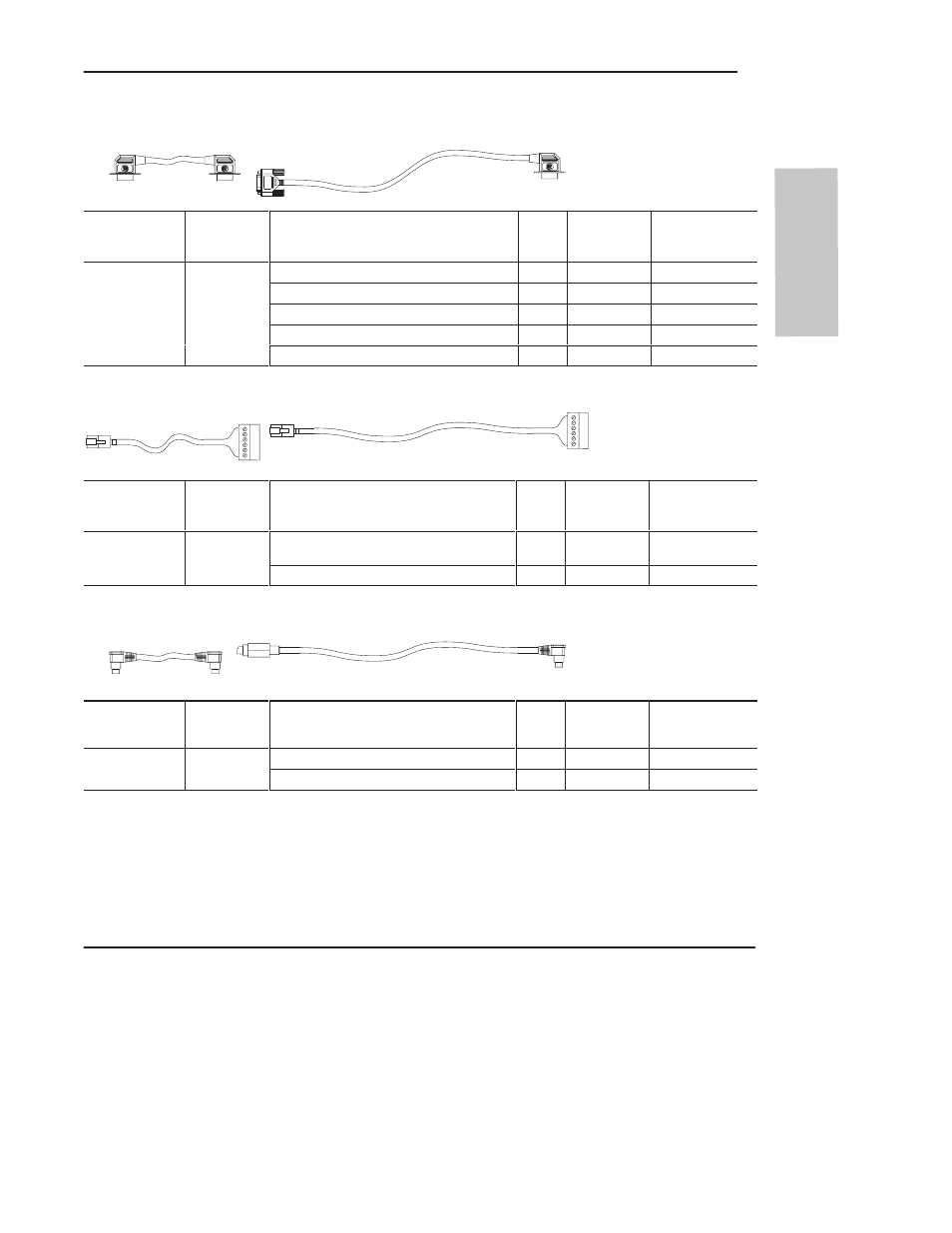

Cable Selection Guide
1747-CP3
1761-CBL-AC00
Cable Length Connections from to AIC+
External
Power Supply
Required
➁
Power Selection
Switch Setting
➁
1747-CP3 3m (9.8 ft)
c 7 7
SLC 5/03 or SLC 5/04 processor, channel 0 port 1 yes external 7 7 C
1761-CBL-AC00
➀
9 f
45 cm (17.7 in) PC COM port port 1 yes external 76 C C00
PanelView 550 through NULL modem adapter port 1 yes external
DTAM Plus / DTAM Micro t port 1 yes external
Port 1 on another AIC+ port 1 yes external
1761-CBL-AS03
1761-CBL-AS09
Cable Length Connections from to AIC+
External
Power Supply
Required
➀
Power Selection
Switch Setting
➀
1761-CBL-AS03
1761-CBL-AS09
3m (9.8 ft)
9.5m (31.17 ft)
SLC 500 Fixed,
SLC 5/01, SLC 5/02, and SLC 5/03 processors port 3 yes external
1761-CBL-AS09 9.5m (31.17 ft)
PanelView 550 RJ45 port port 3 yes external
1761-CBL-AM00
1761-CBL-HM02
➁
Cable Length Connections from to AIC+
External
Power Supply
Required
Power Selection
Switch Setting
1761-CBL-AM00 45 cm (17.7 in)
2 6 f
MicroLogix 1000 port 2 no cable 76 C 00
1761-CBL-HM02
➁
c 7 7
2m (6.5 ft) to port 2 on another AIC+ port 2 yes external
➀
External power supply required unless the AIC+ is powered by the device connected to port 2, then
the selection switch should be set to cable.
➁
Series B or higher cables are required for hardware handshaking.
