Reference – Rockwell Automation 1761 MicroLogix 1000 Programmable Controllers User Manual
Page 349
Reference
Understanding the Communication Protocols
D–21

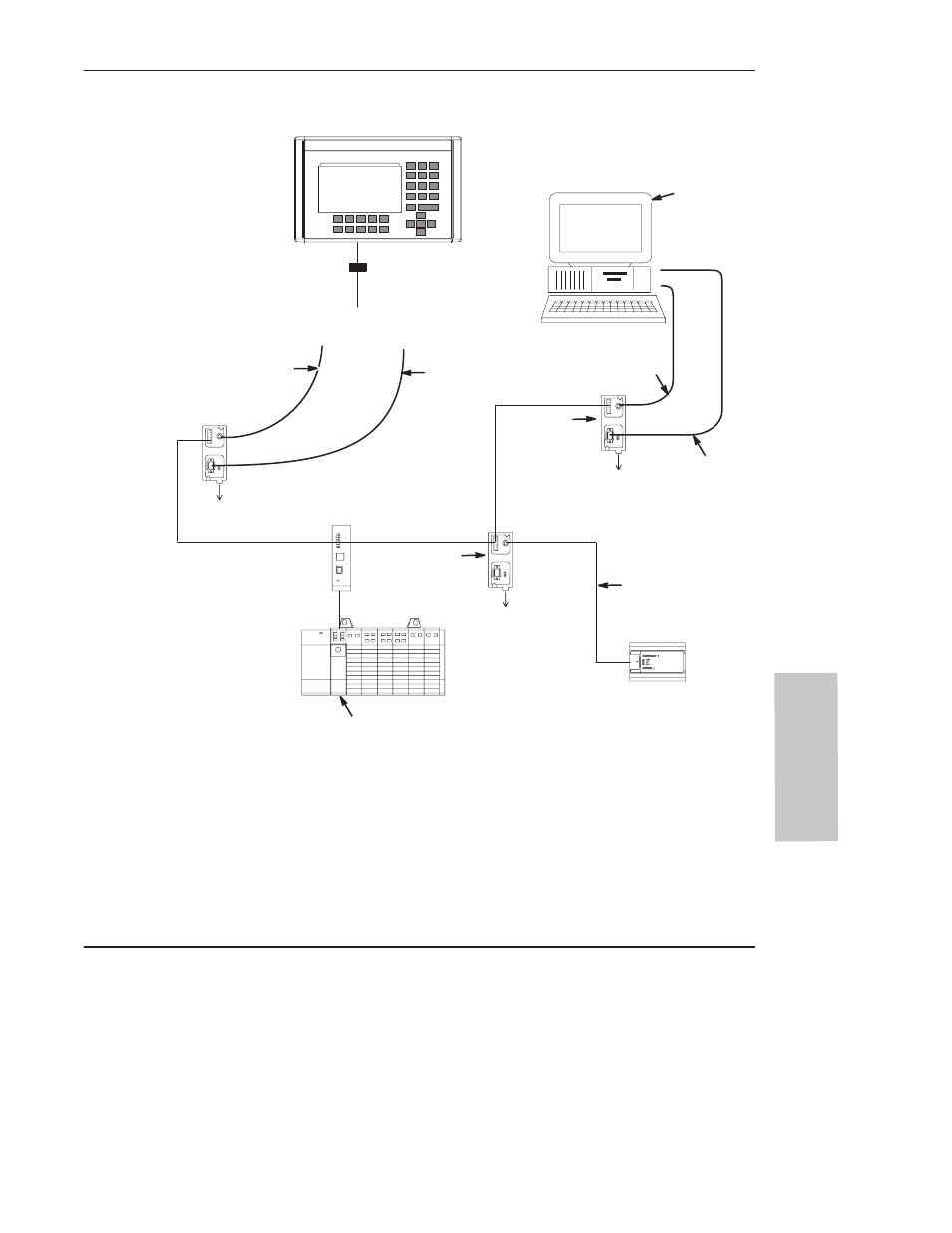

Networked Operator Interface Device and MicroLogix Controller
1761-CBL-AM00
or
1761-CBL-HM02
1747-CP3
or
1761-CBL-AC00
PC to port 1
or port 2
1761-CBL-AP00
or
1761-CBL-PM02
connection from NULL modem
adapter to port 1 or port 2
PanelView 550
RS-232 port
NULL modem adapter
DH-485 Network
APS
PC
1761-CBL-AP00
or
1761-CBL-PM02
1747-CP3
or
1761-CBL-AC00
24V dc
(user supplied)
SLC 5/03 processor
1747-AIC
24V dc
(user supplied)
24V dc
(Not needed in this
configuration since the
MicroLogix 1000
provides power to the
AIC+ via port 2.)
Selection
Switch Up
AIC+
(1761-NET-AIC)
AIC+
(1761-NET-AIC)
AIC+
(1761-NET-AIC)
MicroLogix 1000
(Series C or later discrete or all analog)
DB-9 RS-232 port
mini-DIN 8 RS-232 port
DH-485/DF1 port
