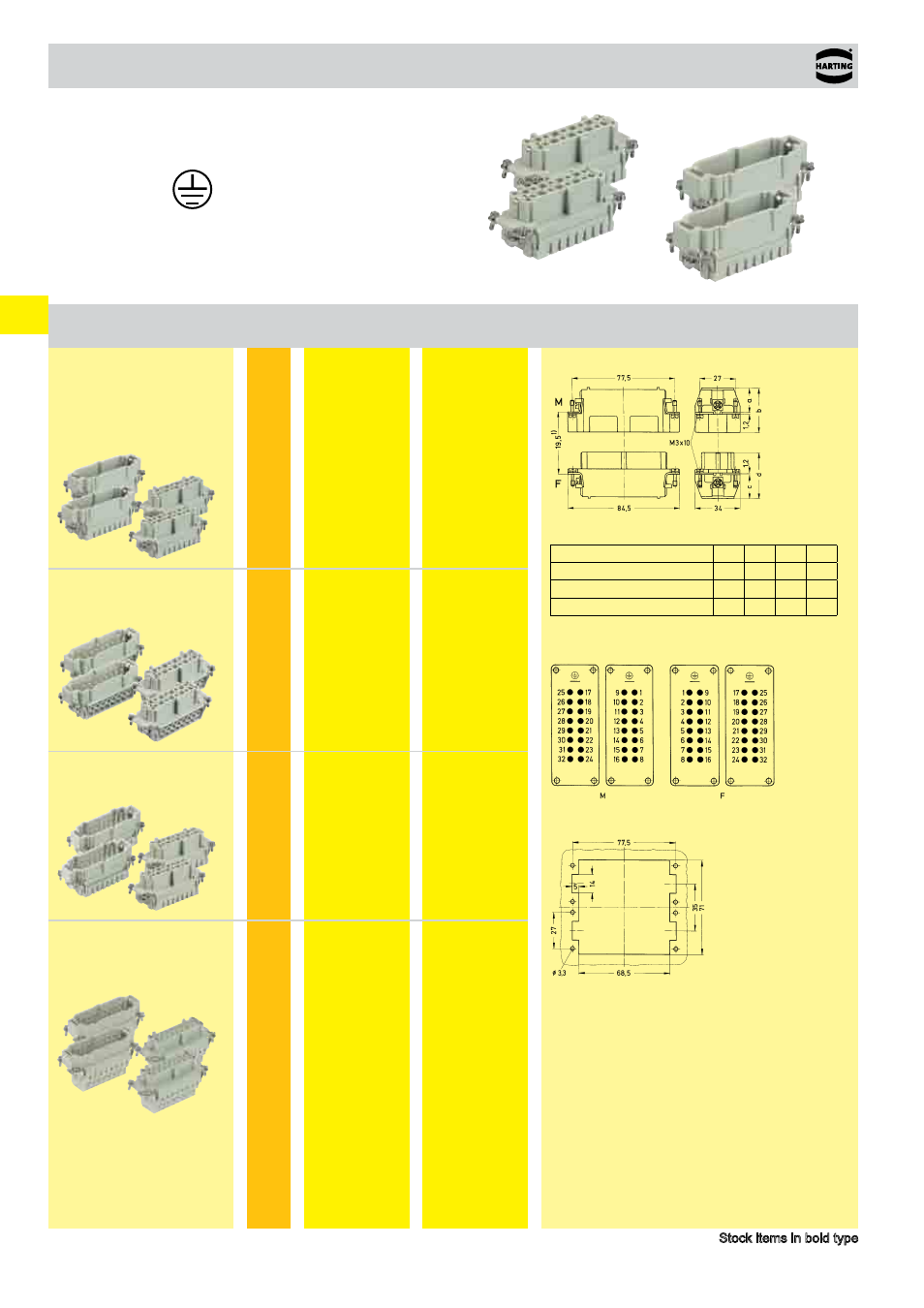

03
.
22
Han
E / EE
Han ® 32 E
Size 32 B 500 V 16 A
Stock items in bold type
Number of contacts
32 +
Inserts
Part number
Identification Series Male insert (M) Female insert (F) Drawing Dimensions in mm
Crimp terminal
Order crimp contacts
separately (see
Technical characteristics
on page 03.03)
Han E ®
1 - 16
17 - 32
"https://b2b.harting.com/ebusiness/en/
09 33 016 2602
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2612
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2702
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2712
"
Screw terminal
with wire protection
Han E ®
1 - 16
17 - 32
"https://b2b.harting.com/ebusiness/en/
09 33 016 2601
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2611
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2701
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2711
"
Cage-clamp terminal
Han ®
ES
1 - 16
17 - 32
"https://b2b.harting.com/ebusiness/en/
09 33 016 2616
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2626
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2716
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2726
"
Cage-clamp terminal
two terminals per contact
Han ®
ESS
1 - 16
1 - 16
"https://b2b.harting.com/ebusiness/en/
09 33 016 2672
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2672
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2772
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 2772
"
1) Distance for contact max. 21 mm
a b c d
Han E ® screw 18 33 18 35
Han ® ES / Han E ® crimp 19 34 19 36
Han ® ESS 34 49 32 49
Contact arrangement
view from termination side
Panel cut out
