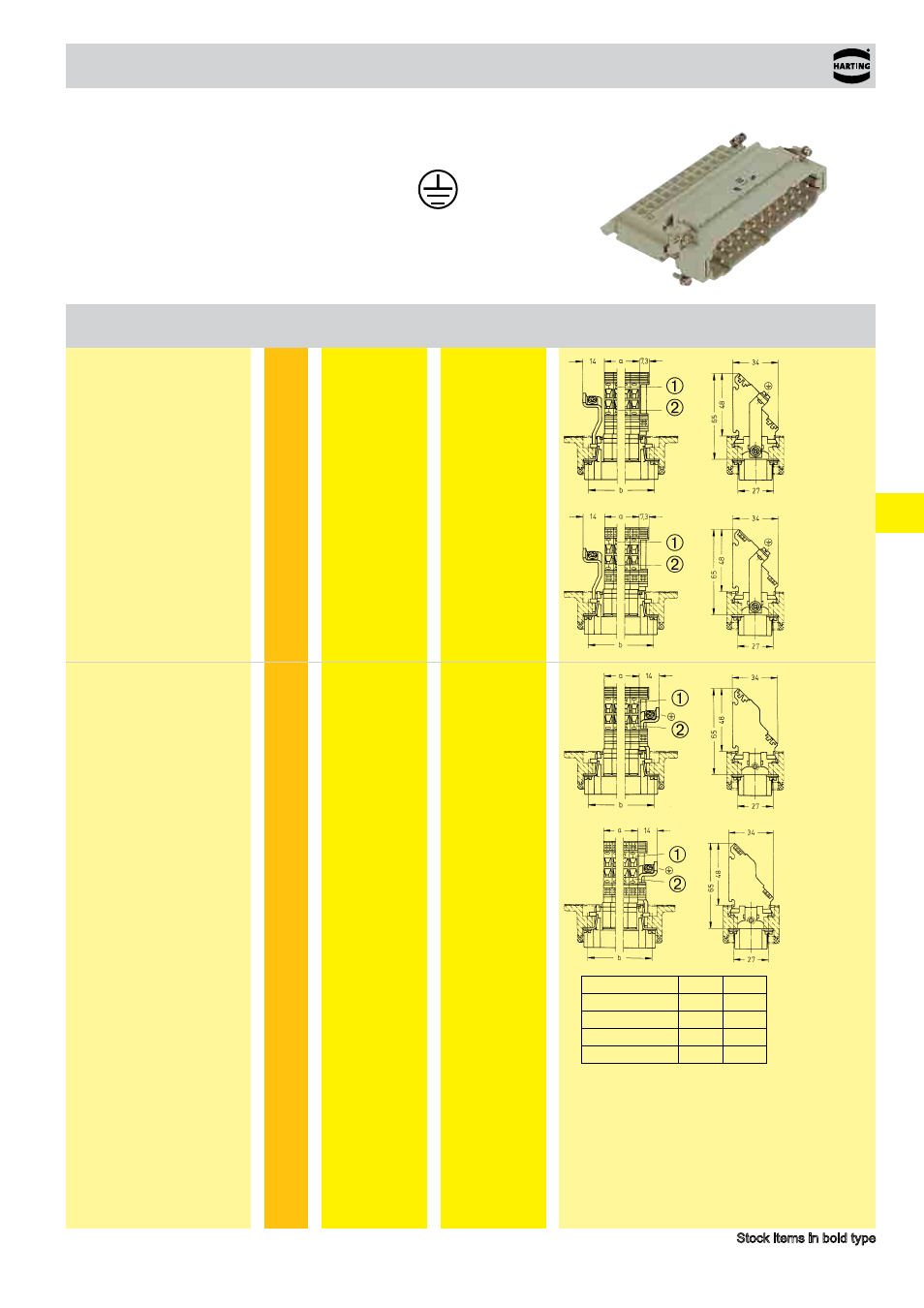

Northern Connectors Harting HAN Industrial Rectangular Connectors - Manual (Page 150)

08.
09
Han
AV
Han E ® AV
500 V 16 A
Stock items in bold type
Number of
contacts
Part number
Identification Male insert Female insert Drawing Dimensions in mm
Number of contacts
6, 10, 16, 24 +
Left hand version
Multi contour (MK)
6
10
16
24
"https://b2b.harting.com/ebusiness/en/
09 33 006 4625
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4625
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4625
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4625
"
"https://b2b.harting.com/ebusiness/en/
09 33 006 4725
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4725
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4725
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4725
"
Left hand version
Single contour (SK)
6
10
16
24
"https://b2b.harting.com/ebusiness/en/
09 33 006 4626
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4626
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4626
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4626
"
"https://b2b.harting.com/ebusiness/en/
09 33 006 4726
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4726
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4726
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4726
"
Right hand version
Multi contour (MK)
6
10
16
24
"https://b2b.harting.com/ebusiness/en/
09 33 006 4635
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4635
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4635
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4635
"
"https://b2b.harting.com/ebusiness/en/
09 33 006 4735
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4735
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4735
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4735
"
Right hand version
Single contour (SK)
6
10
16
24
"https://b2b.harting.com/ebusiness/en/
09 33 006 4636
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4636
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4636
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4636
"
"https://b2b.harting.com/ebusiness/en/
09 33 006 4736
"
"https://b2b.harting.com/ebusiness/en/
09 33 010 4736
"
"https://b2b.harting.com/ebusiness/en/
09 33 016 4736
"
"https://b2b.harting.com/ebusiness/en/
09 33 024 4736
"
a b
Han ® 6 E AV 20 44
Han ® 10 E AV 34 57
Han ® 16 E AV 54 77.5
Han ® 24 E AV 81 104
➀ Contact arrangement for male insert
➁ Contact arrangement for female insert
