Han ® K 8/24
Features
• Combination of power and signal area in one con-
nector
• Crimp termination for power and signal area
• Use of standard Han E ® and Han D ® contacts

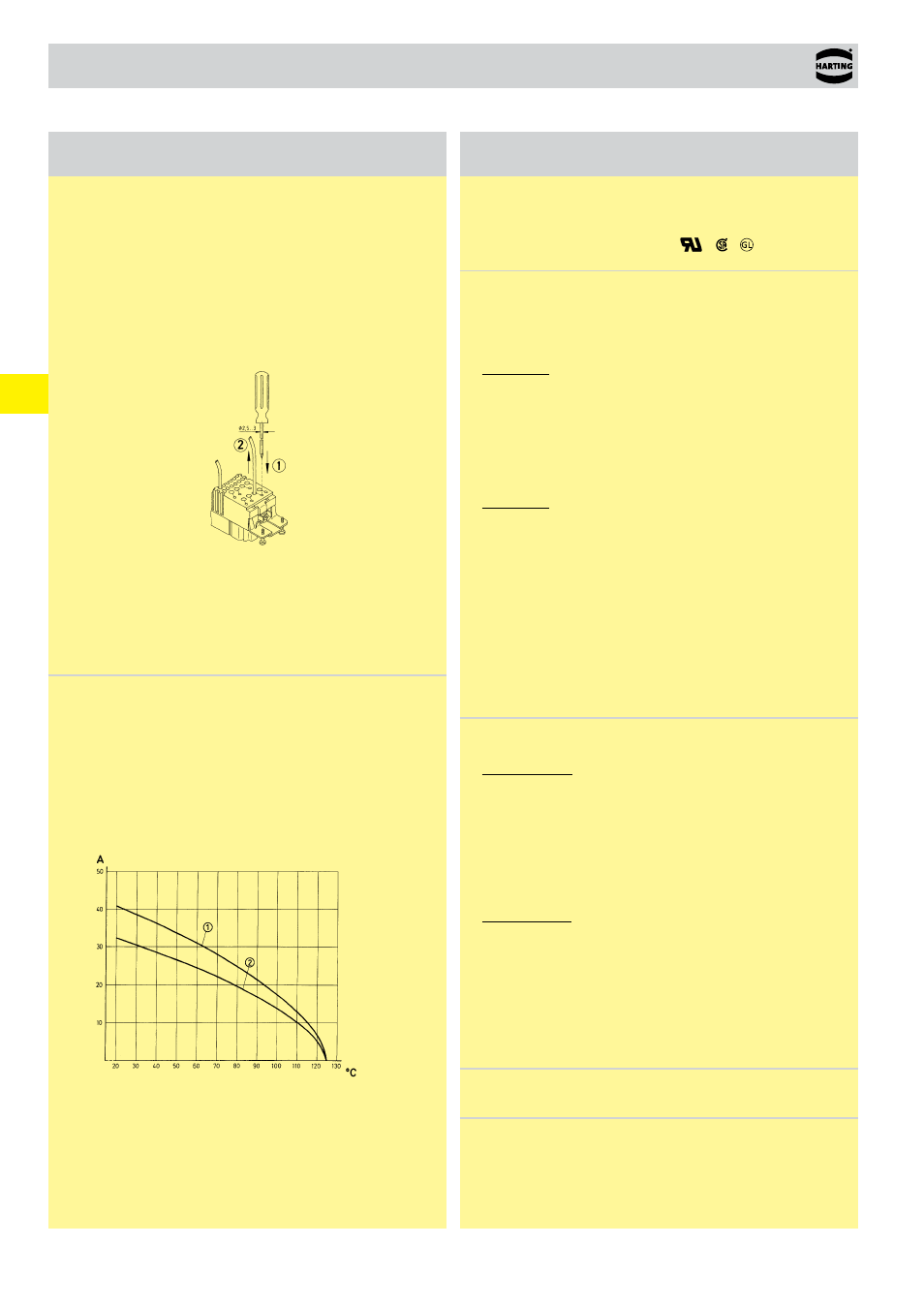

Removal of power contacts (Han E ® )
➀ Push cross-slotted screw driver ( size 0 acc. to DIN 5260) in the
relevant hole of the contact until it reaches the bottom
➁ Withdraw the crimped contact from the insert
Removal of signal contacts (Han D ® )
Description see removal tool chapter 99
Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
Wire gauge: ➀ 4 mm²
➁ 2.5 mm²
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Approvals , ,
Inserts
Number of contacts 8 / 24 + PE
Electrical data
acc. to EN 61 984
Power area 16 A 230/400 V 4 kV 3
Rated current 16 A
Rated voltage conductor - ground 230 V
Rated voltage conductor - conductor 400 V
Rated impulse voltage 4 kV
Pollution degree 3
Pollution degree 2 also 10 A 250 V 4 kV 2
Signal area 10 A 160 V 2.5 kV 3
Rated current 10 A
Rated voltage 160 V
Rated impulse voltage 2.5 kV
Pollution degree 3
Rated voltage
acc. to UL/CSA 600 V / 300 V
Insulation resistance ≥ 10 10 Ω
Material Polyamide
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 HB
Mechanical working life
- mating cycles ≥ 500
Contacts
Power contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 1 mΩ
Crimp terminal
- mm² 0.5 ... 4 mm²
- AWG 20 ... 12
Signal contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 3 mΩ
Crimp terminal
- mm² 0.14 ... 2.5 mm²
- AWG 25 ... 14
Hoods/Housings see chapter 31
