Tools
Identification Part No .

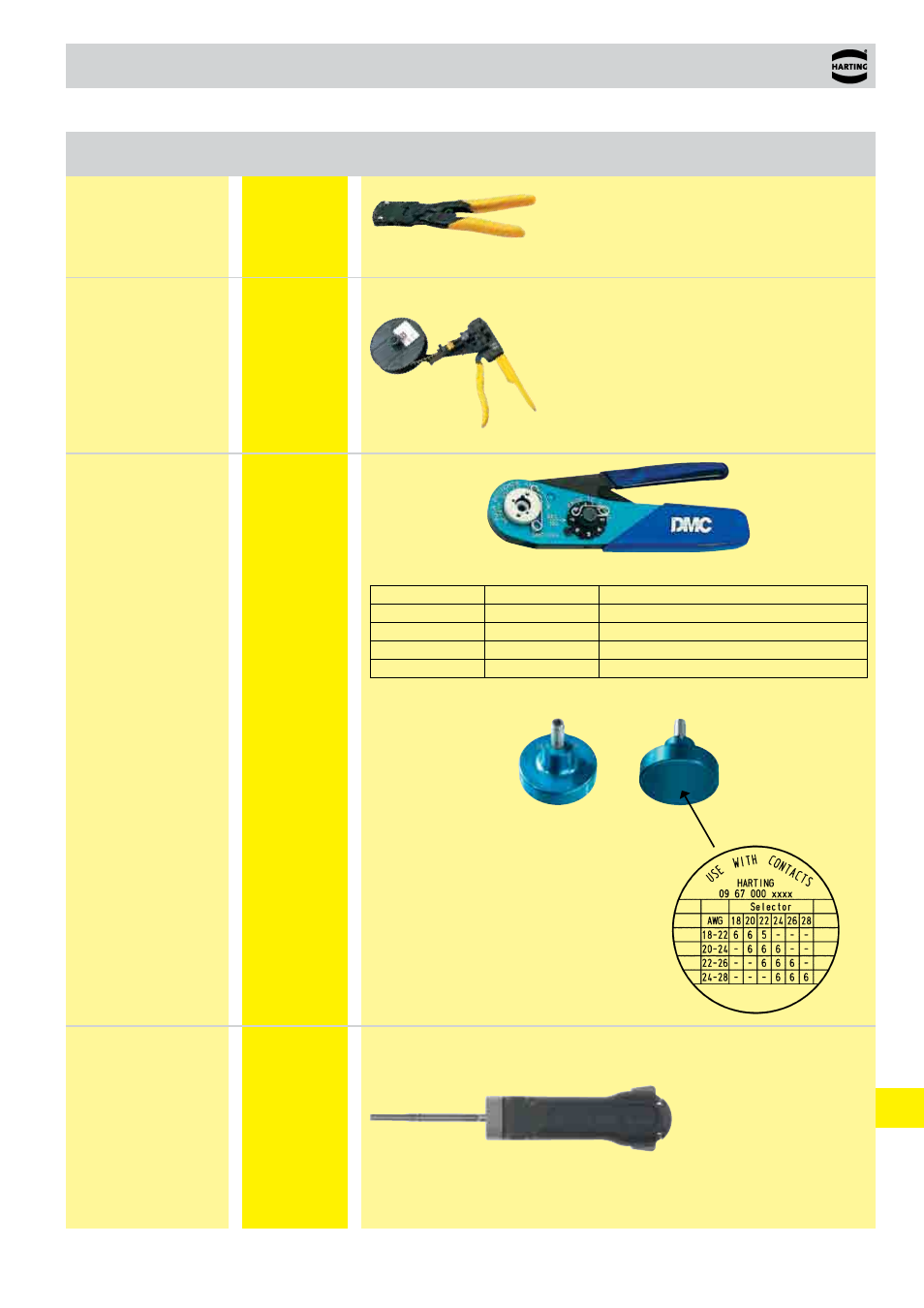

Service crimp tool
for single
standard contacts
for 500 bandoliered
standard contacts
HARTING-
Crimp tool
For all crimp tools: These tools are designed specifically for standard wires and not for solid wires .
Tools
for contacts
D-Sub
Crimp tool
for turned male
and female contacts
AWG 28-18
4 indent crimp
in acc . to
MIL 22 520/2-01
Locator for crimp tool
Details see table
Contact Part No. Gauge Crimp tool selection No.
09 67 000 3x76 AWG 18, 20, 22 6 for AWG 18 and AWG 20, 5 for AWG 22
09 67 000 8x76 AWG 20, 22, 24 6
09 67 000 5x76 AWG 22, 24, 26 6
09 67 000 7x76 AWG 24, 26, 28 6
printing
Insertion and
removal tool
for D-Sub
crimp contacts
