PCB
termination
PCB adapter for Han-Modular ®
Features
• Modular assembly
• Robust design
• Suitable for standard and EMC housings
• Low wiring costs
Technical characteristics
Han DD ® module with PCB-Adapter
Electrical data
acc. to EN 61 984 7.5 A 250 V 4 kV 3
Rated current 7.5 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Wire gauge 0.14 ... 2.5 mm²
Han ® 40 A module for PCB adaptions
Electrical data
acc. to EN 61 984 40 A 500 V
Rated current 40 A
Rated voltage 500 V
Wire gauge 2.5 ... 10 mm²

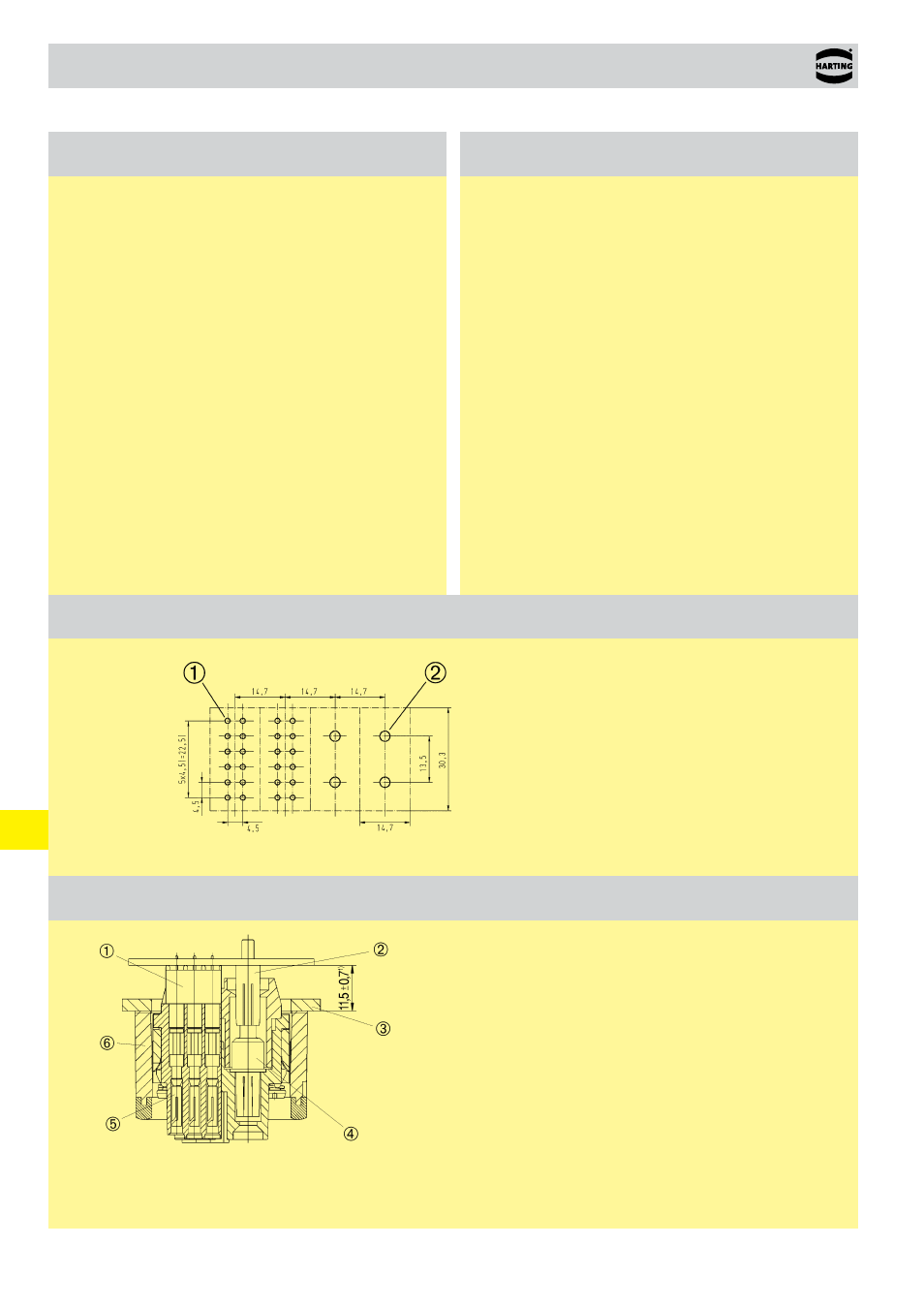

Layout of PCB
Dimensions in mm
Han DD ® module Han ® 40 A module
➀ Recommended hole diameter:
0.8 mm
➁ Recommended hole diameter:
3.2 mm
Assembly situation
➀ Han DD ® PCB-adapter
➁ Han ® C Solder contact
➂ Switch board panel
➃ Module for connection to printed
circuit board
➄ Han D ® double contact
➅ Han ® B bulkhead mounted
housing
1) for Han ® B EMC housings spacing of 12.5 ± 0.7 mm is necessary as no flange seal is used
