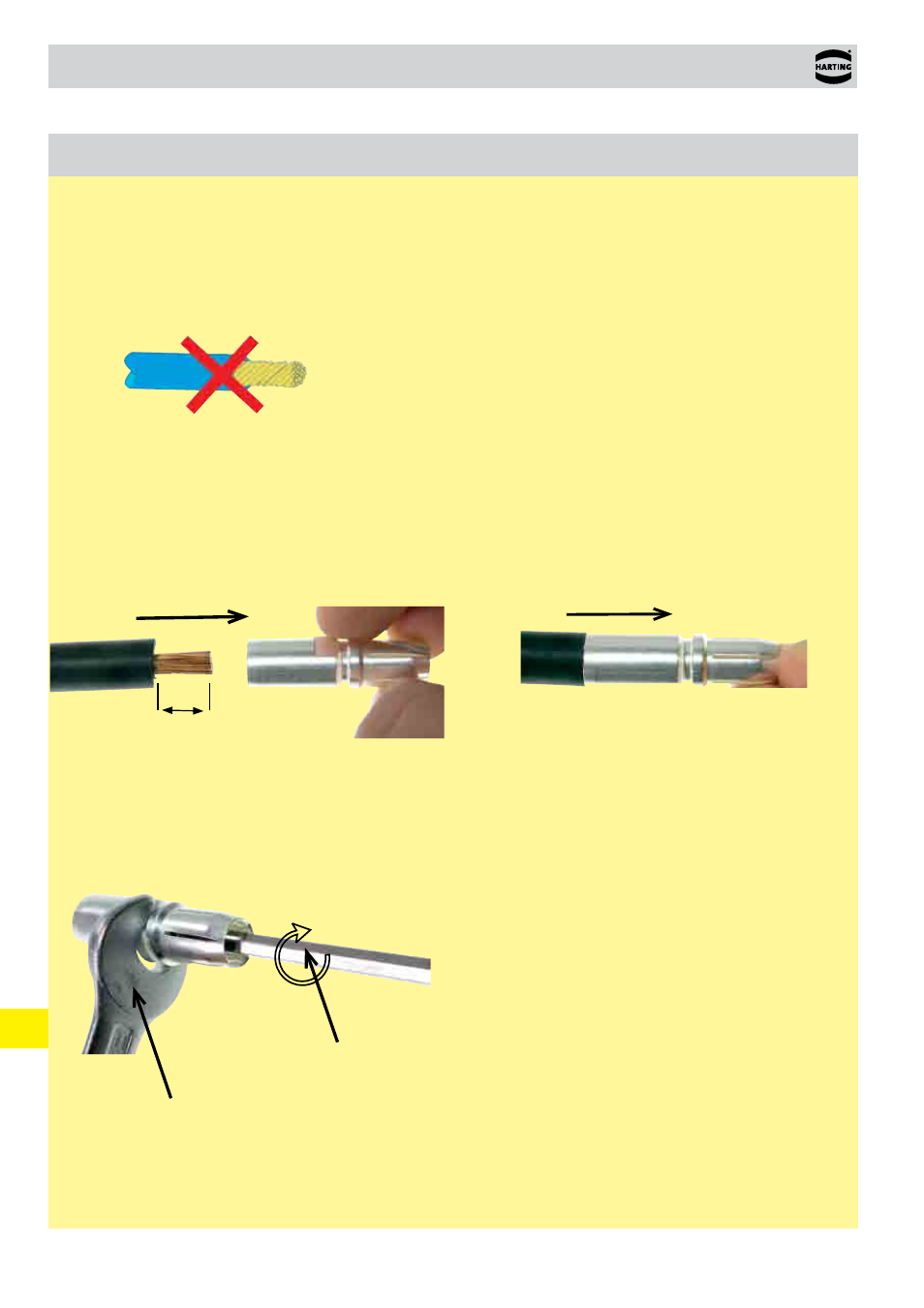

Assembly and construction
1.
Please strip the wire. All suitable wire
gauges have to be stripped with a length
of 13 mm (acc. to Class 5 wire).
Insert stripped wire into the terminal and
push fully inside. Pay attention that all fine
stranded wires are inserted in the contact.
2.
Please insert suitable torque key (SW
4) into the contact from mating side and
turn the axial screw clockwise. For that
purpose secure the axial screw with a
spanner (SW 11).
Tighten the screw to the specified torque
value.
Assembly
Please use fine stranded wire (Class 5) which is recommend for the axial screw termination.
turn clockwise
Secure axial screw
Do not twist the stripped wire!
stripping lenght
