99
.
08
"https://b2b.harting.com/ebusiness/en/
09 99 000 0319
"
"https://b2b.harting.com/ebusiness/en/
11 99 300 0001
"
"https://b2b.harting.com/ebusiness/en/
11 99 600 0001
"
"https://b2b.harting.com/ebusiness/en/
09 99 000 0059
"

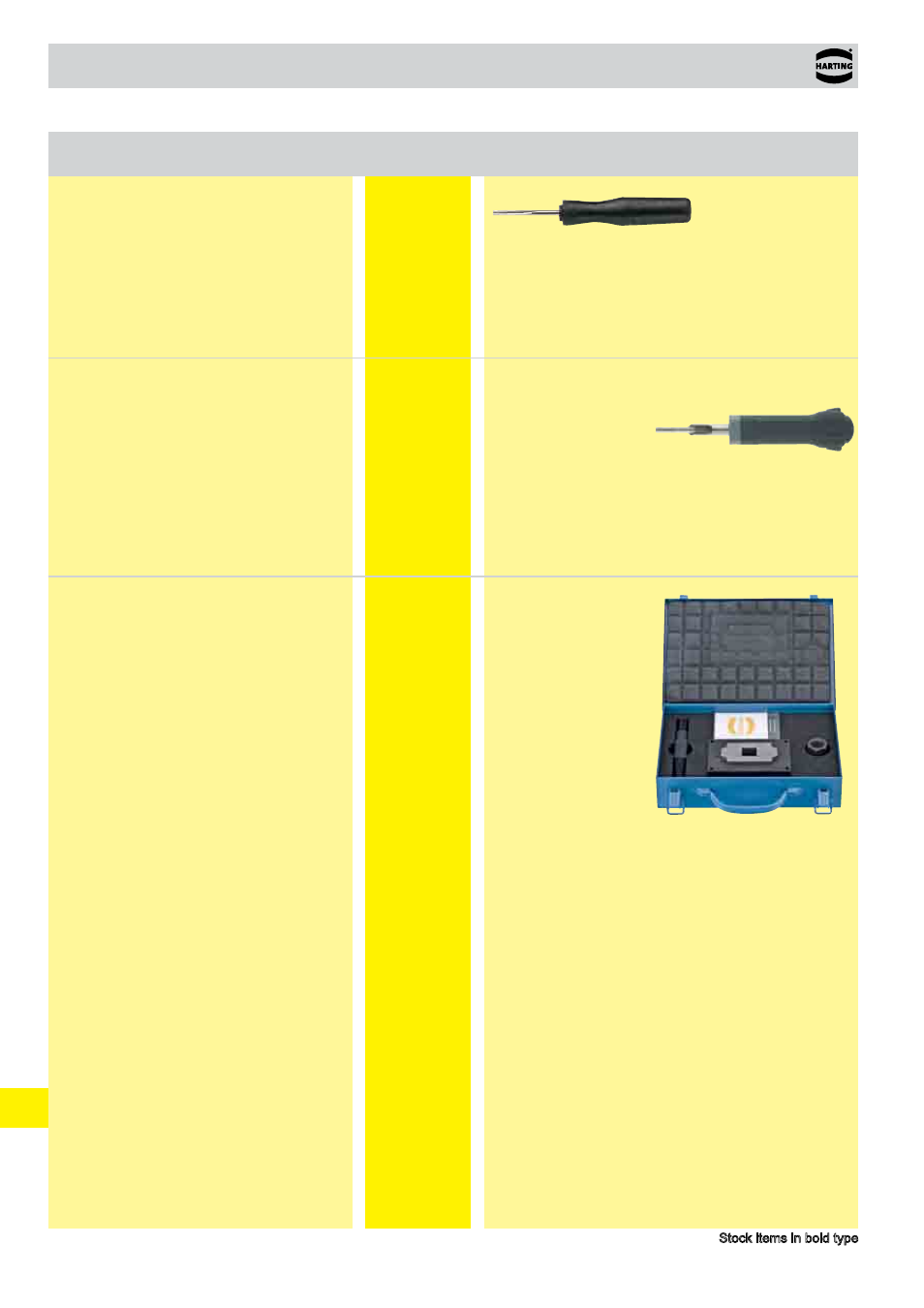

Tools
Tools
for contacts
Han-Yellock ®
(11 05 ...)
Identification Part number Drawing Dimensions in mm
Removal tool for crimp contacts
A removal tool is necessary if contacts are to be replaced in
the insert. The tool is inserted from the wiring side until a stop
is noticeable. The wire with the crimp contact can then be pul-
led out from the same side of the insert.
Panel punch
panel cut out tool
panel thickness
steel: ≤ 2.5 mm
stainless steel: ≤ 2 mm
for hydraulic pump
punch force: ≥ 60 kN
thread: 3/4“ UNF
for Han-Yellock ® 30
for Han-Yellock ® 60
Insertion tool for crimp contacts
For crimp contacts with wires of less than 0.75 mm² it is
recommended that an insertion tool is used. Contacts should
be inserted from the wiring side and pushed down until a
positive locking is achieved.
Stock items in bold type
