08
.
04
Han
AV
Han D
®
AV
Features
• For left hand or right hand applications available
• PE and connecting terminal for contact no.1 are at
the top in both types of installation
• Mountable in standard bulkhead housing and on
standard rails by using of fixing elements
• Screw terminal with integrated wire protection

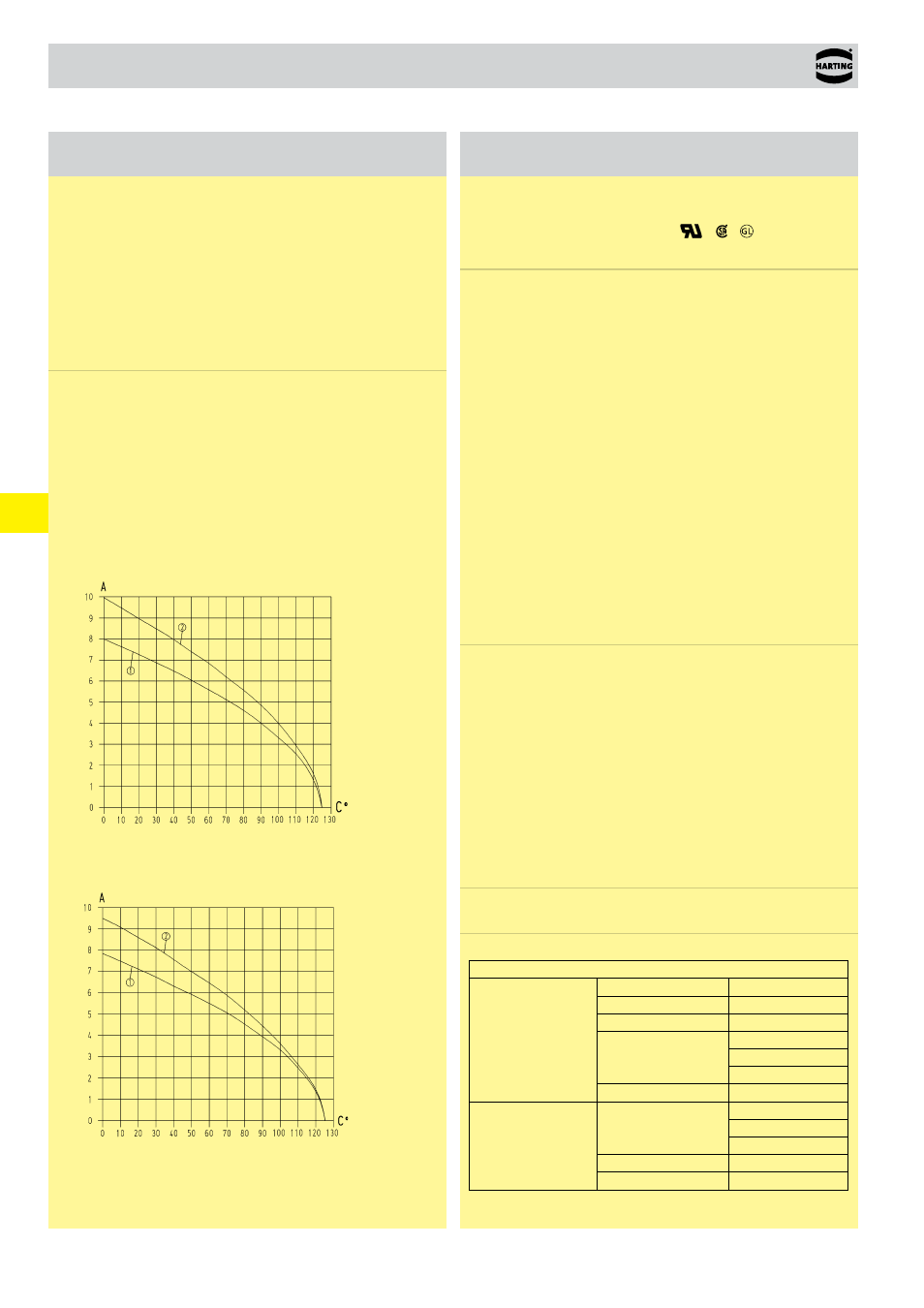

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Han
®
40 D AV
Operating current
Ambient temperature
Han
®
64 D AV
Operating current
Ambient temperature
➀ wire gauge: 0.75 mm²
➁ wire gauge: 1.5 mm²
Technical characteristics
Specifications
DIN EN 60 664-1
DIN EN 61 984
Approvals
,
,
Inserts
Number of contacts
40, 64 + PE
Electrical data
acc. to EN 61 984
10 A 250 V 4 kV 3
Rated current
10 A
Rated voltage
250 V
Rated impulse voltage
4 kV
Pollution degree
3
Pollution degree 2 also
10 A 230/400 V 4 kV 2
Rated voltage
acc. to UL/CSA
600 V
Insulation resistance
≥ 10
10
Ω
Material
polycarbonate
Limiting temperatures
r&
r&
Flammability acc. to UL 94
V 0
Mechanical working life
- mating cycles
≥ 500
Contacts
Material
copper alloy
Surface
- mating side
3 µm Ag
- termination side
tin plated
Contact resistance
≤ 4 mΩ
Screw terminal
- Wire gauge
1)
0.2 ... 2.5 mm²
- AWG
24 ... 14
- Tightening/test torque
0.5 Nm
Hoods/Housings
see chapter 31
Identification strips
the following identifcation strips may be used
Multi-Contour (MK)
HARTING
"
Murrplastik
KPX 5/10-5
Weidmüller
DEK 5
Phoenix
4K-DST 5
DS 5
ZB 5
WAGO
WSB 5
Single-Contour
(SK)
Murrplastik
KWI 5/10
KWI 5/10-5
KWI 8,6-5
Wieland
9705 A/5/10
WAGO
Mini-WSB
1)
geometric wire gauge
