Han ® K 12/2
Features
• Combination of power and signal area in one
connector
• Crimp termination for power and signal area
• Use of standard Han ® C and Han D ® contacts
Removal of power contacts (Han ® C)
Description see removal tool chapter 99
Removal of signal contacts (Han D ® )
Description see removal tool chapter 99

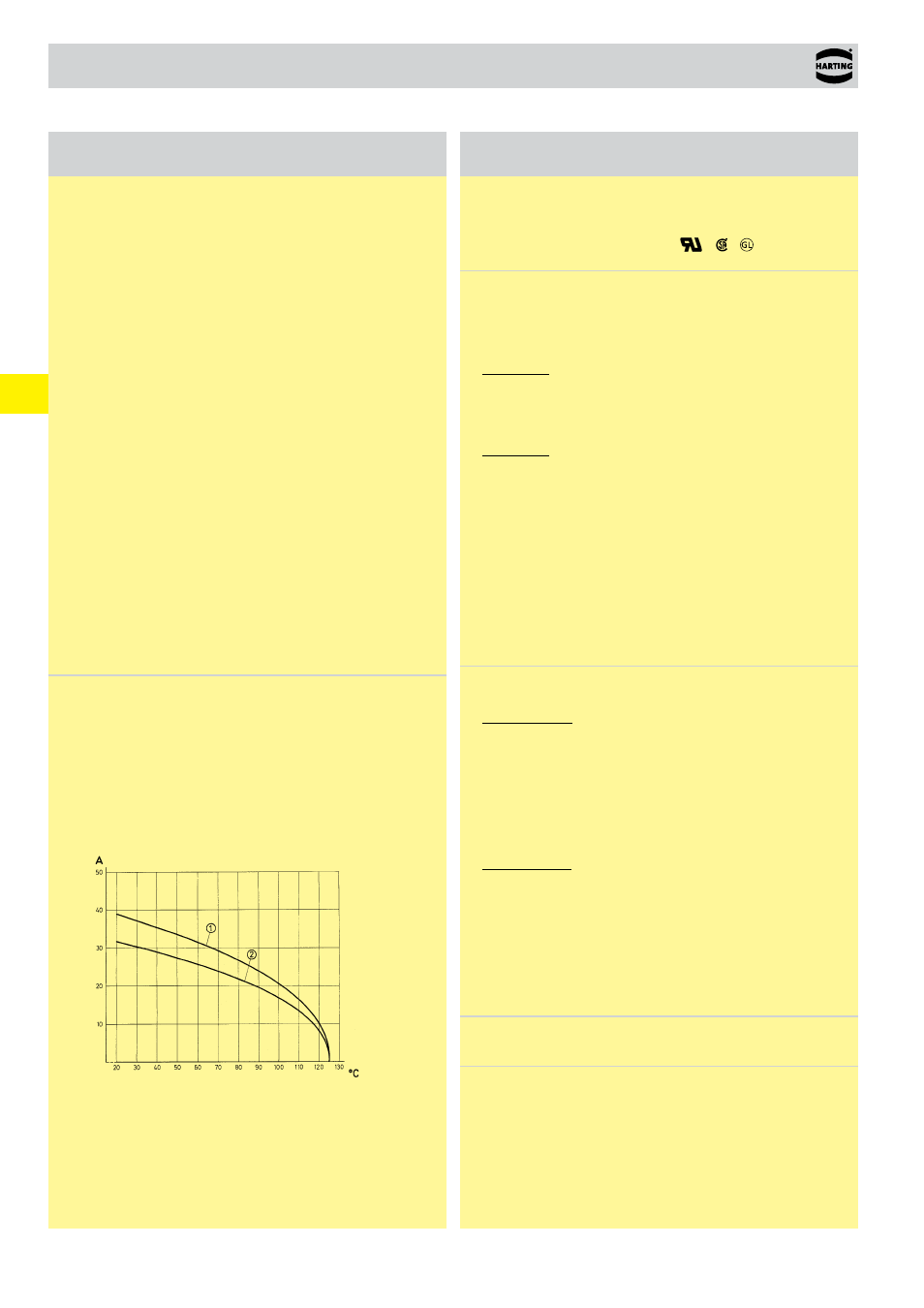

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
Wire gauge: ➀ 6 mm²
➁ 4 mm²
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Approvals , ,
Inserts
Number of contacts 12 / 2 + PE
Electrical data
acc. to EN 61 984
Power area 40 A 690 V 8 kV 3
Rated current 40 A
Rated voltage 690 V
Rated impulse voltage 8 kV
Pollution degree 3
Signal area 10 A 250 V 4 kV 3
Rated current 10 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Rated voltage
acc. to UL/CSA 600 V / 300 V
Insulation resistance ≥ 10 10 Ω
Material polycarbonate
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Power contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 0.3 mΩ
Crimp terminal
- mm² 1.5 ... 6 mm²
- AWG 16 ... 10
Signal contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 3 mΩ
Crimp terminal
- mm² 0.14 ... 2.5 mm²
- AWG 26 ... 14
Hoods/Housings see chapter 31
