Part number explanation

Our computerized ordering system
uses the following code:

Product-group
(connectors)

Series
(i. e. Han E

)

Number of contacts
(i. e. 6, 10, 16, 24)

Part of connector assembly
(hoods/housings, inserts)

How to order connectors

For a complete connector components may be ordered from the
following sub headings

Cable entry protection

Universal cable glands

Special cable clamp with strain relief, bell
mouthed cable fitting and anti-twist devices

Cable gland with normal or multiple seal

Extensive range of accessories

Hoods

low or high construction
top or side cable entry
1 or 2 locking levers

Male insert

with

screw terminal or
crimp terminal (order contacts separately)
or cage-clamp terminal

Female insert

with

screw terminal or
crimp terminal (order contacts separately)
or cage-clamp terminal

Housings

Housing (bulkhead mounting)

with or without thermoplastic
or metal covers
1 or 2 locking levers

Housing (surface mounting)

low or high construction
with or without thermoplastic
or metal covers
1 or 2 locking levers
1 or 2 cable entries

Hood (cable to cable)
low or high construction
for cable to cable connections

Accessories

Protective covers available

Code and guide pins for coding

Special insert fixing screws for use without hoods
and housings

Label according to CSA-approval

Suitable hoods and housings will be found on the same
page.

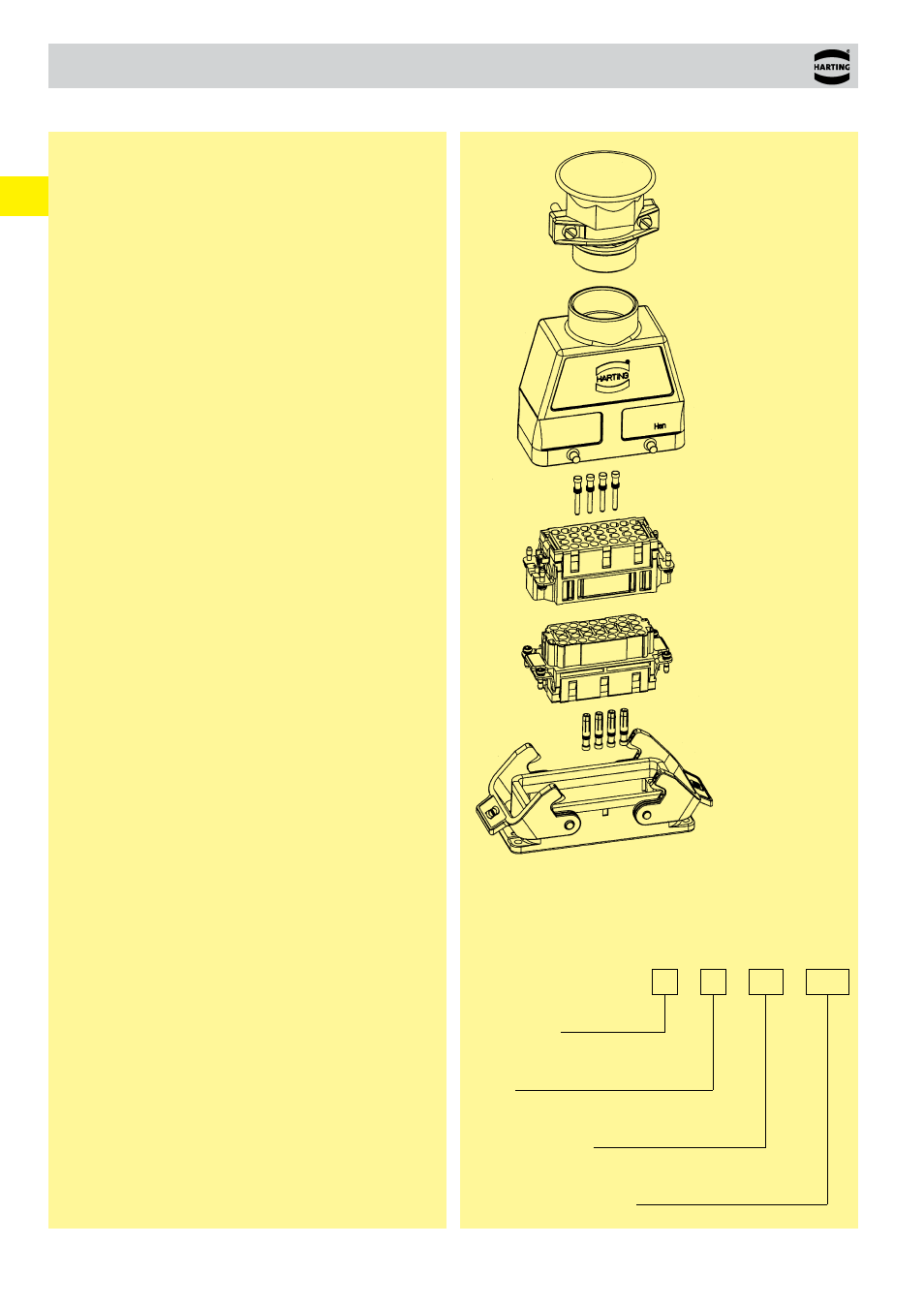

Cable clamp

Hood

Male contacts

Male insert

Female insert

Female contacts

Housing
