Northern Connectors Harting HAN Industrial Rectangular Connectors - Manual (Page 271)

15
.
06
Power
Distribution
Features Technical characteristics
Han-Power ® S with 1x Han ® Q 4/2 with Power Supply 24 V
• 6 IDC‘s + PE for 4.0 mm² to 6.0 mm² wires
• No interruption of the energy supply
• Space-saving and compact design
• Leading protective ground within the insert
• Assembly with standard tools
•
24 V power supply integrated
• Secondary connection 2 x M12
Assembly Details
Specifications DIN EN 61 984
DIN EN 60 664-1
Han-Power ® S
Number of contacts
- Power contacts 4 + PE
- Signal contacts 2
Electrical data
acc. to EN 61 984
Power side 40 A 230/400 V 4 kV 2
Rated current 40 A
Rated voltage conductor - ground 230 V
Rated voltage conductor - conductor 400 V
Rated impulse voltage 4 kV
Pollution degree 2
Signal side 10 A 250 V 4 kV 2
Rated current 10 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 2
Rated voltage
acc. to UL/CSA 600 / 250 V
Insulation resistance ≥ 10 10 kΩ
Material polycarbonate
Limiting temperatures
- without derating -20 °C ... +50 °C
- with derating -20 °C ... +70 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Degree of protection acc. to DIN EN 60 529 IP 65
Cables
Design of conductor acc. to DIN VDE 0281
DIN EN 60 228
Wire gauge 4 mm²
- Number of single strands 56 x 0.3 mm ∅
- Outer diameter 4.2 mm
Wire gauge 6 mm²
- Number of single strands 84 x 0.3 mm ∅
- Outer diameter 4.8 mm
Technical data power supply
Input data 100 V ... 240 V AC
(50 Hz / 60 Hz)
Output data 24 V DC / 2 A
(adjustable from 23 V ... 29 V)
Pre-setting: 24.5 V ± 0,5 %
Efficiency >86% (at 230 V AC)
Reverse voltage max 32 V
Tide overtime for power-fail >20 ms
Low voltage system SELV / PELV
Additionally features short-circuit proof
open-circuit proof
automatic switch off in
the case of short-circuit
Green LED marks normal operating condition.
Han ® Q 4/2 fully loaded
with wire gauge 4 x 6 mm²
➀ Han ® Q 4/2 Wire gauge: 4 mm²
➁ Han ® Q 4/2 Wire gauge: 6 mm²
Ambient temperature
Operating
current
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to DIN EN 60 512-
5-2
The Han-Power ® S connector is suitable for the assembly of
serial power bus. Having assembled the energy supply
Han-Power ® S can be inserted at any place of the power cable.
The cable jacket has to be removed, the conductor is placed
without interruption in the IDC.
Han-Power ® S is suitable for cables with single strands
manufactured acc. to DIN VDE 0281/ DIN EN 60 228 with wire
gauges of 4.0 mm² up to 6 mm². For the distribution of the
device Han-Compact ® hoods or cable to cable housings are
used. This power supply can be used with Han-Compact ® hood.

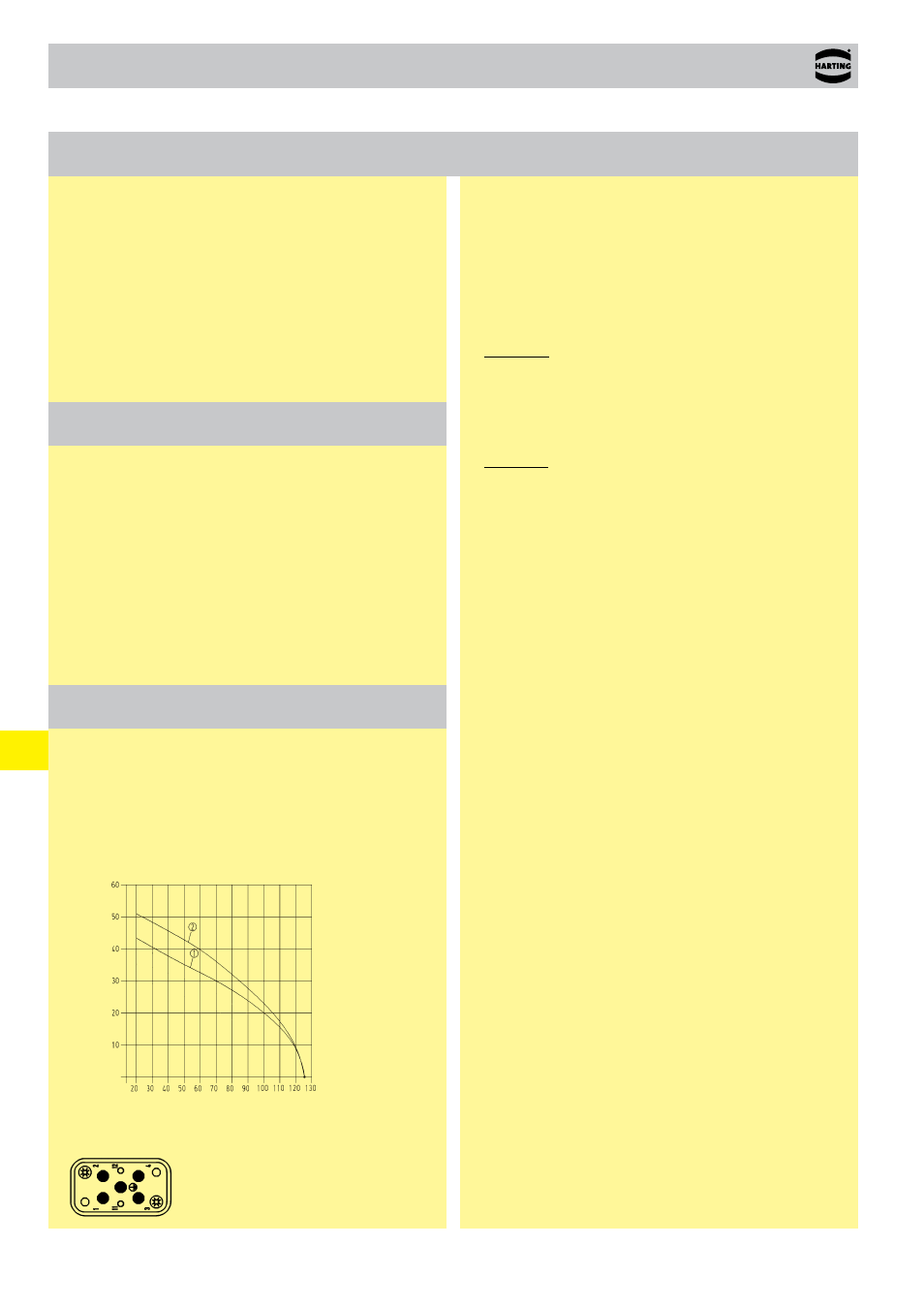

Current carrying capacity base element
