Page 319: Technical characteristics features description, Current carrying capacity

20
.
02
PCB
termination
Technical characteristics
Features
Description
➀ Wire gauge: 4 mm²
➁ Wire gauge: 6 mm²
➂ Wire gauge: 10 mm²
Ambient temperature (°C)
Operating current (A)

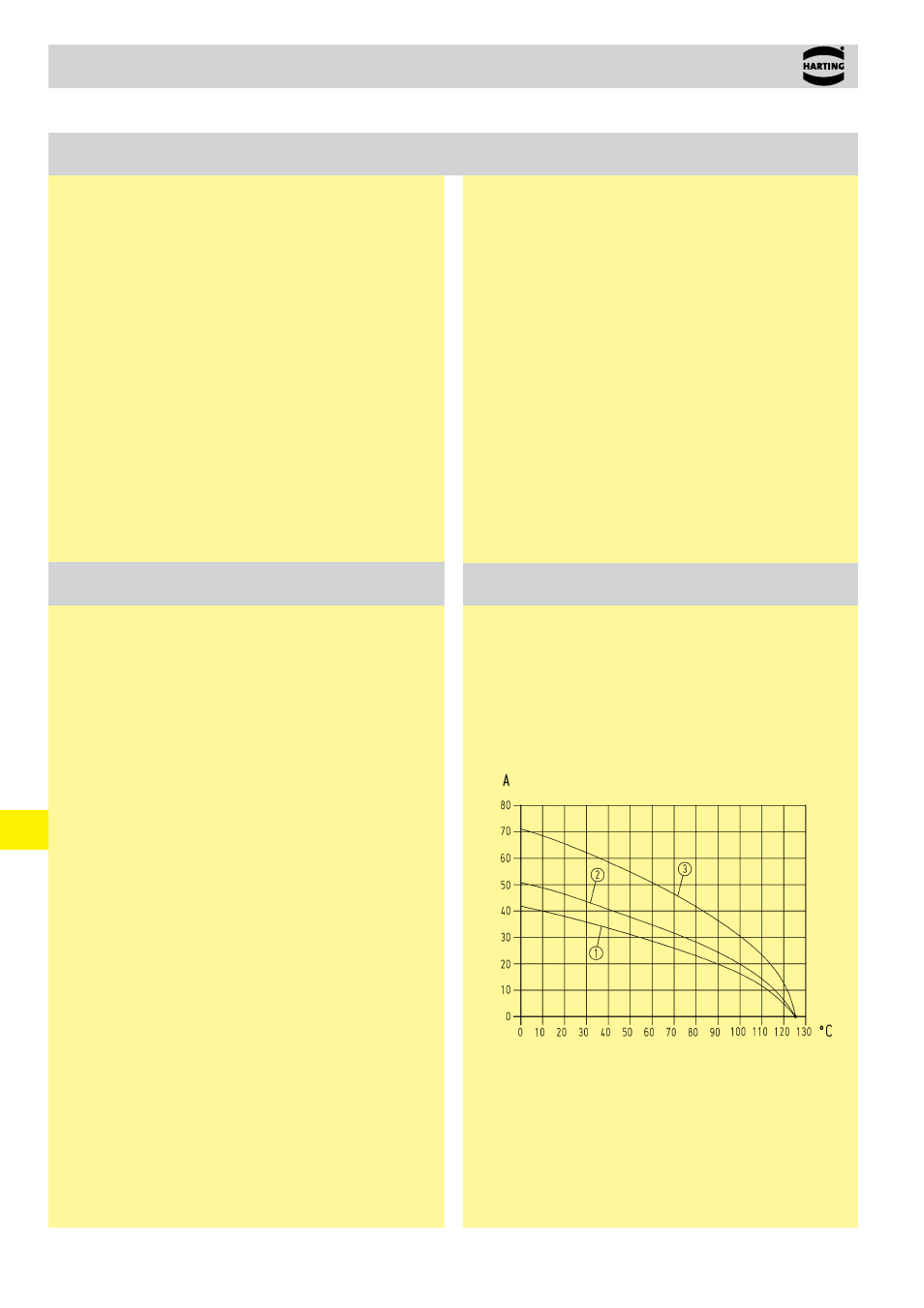

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
• Solder free PCB termination
• PCB contact with locking element
• Stamped contact element
• Automatic crimping process compatible
• For use with different Han
®
connectors
• Cost-effective
• Easy handling
• Fast assembly to PCB
• Contacts with pin
- Locking directly on the PCB
• Contacts without pin
- Fast positioning with plastic adapter
Contact
Material
Copper alloy
- Hard silver plated
3 µm Ag
Contact resistance
< 2 mΩ
Locking
Material
Copper alloy
Surface finish
Passivation
Current 10 mm² stranded wire
60 A
Voltage
Clearance and creepage
distances have to be
considered
Board density
t= 1.6 - 2.0 mm
The new connection of wires to the PCB offers
optimized PCB design, combined with outstanding
contact qualities. The Han-Fast
®
Lock is flexible and
allows a fast and simple PCB connection. The PCB
has one drilled hole and a pad. The inner surface of
the plated drilled hole serves as the interface.
The Han-Fast
®
Lock is simply inserted into the
plated through contact hole. The locking pin is
pushed in and hence locks the contact into positi-
on. The solder free connection technique is easy
to handle and to operate. Maintenance has been
made simple with the facility to detach the contact.
Han-Fast
®
Lock also supports SMD assembly of the
PCB.
• Current up to 60 Amps
• Standard drilled hole with pad
• Position independent of connector
• Solder free PCB termination
• Easy locking solution
• Pull out force ≥ 340 N
Han-Fast
®
Lock
