Han-
Brid
19
.
06
Han-Brid ® Cu
50 V 10 A
"https://b2b.harting.com/ebusiness/en/
09 12 006 3111
"
"https://b2b .harting .com/ebusiness/en/
09 12 006 2611
"
"https://b2b .harting .com/ebusiness/en/
09 12 002 2611
"
"https://b2b .harting .com/ebusiness/en/
09 12 002 3011
"
"https://b2b .harting .com/ebusiness/en/
09 12 004 3011
"
"https://b2b.harting.com/ebusiness/en/
09 12 006 3001
"
"https://b2b .harting .com/ebusiness/en/
09 12 006 2701
"
"https://b2b .harting .com/ebusiness/en/
09 12 002 2701
"
"https://b2b .harting .com/ebusiness/en/
09 12 002 3101
"
"https://b2b .harting .com/ebusiness/en/
09 12 004 3101
"

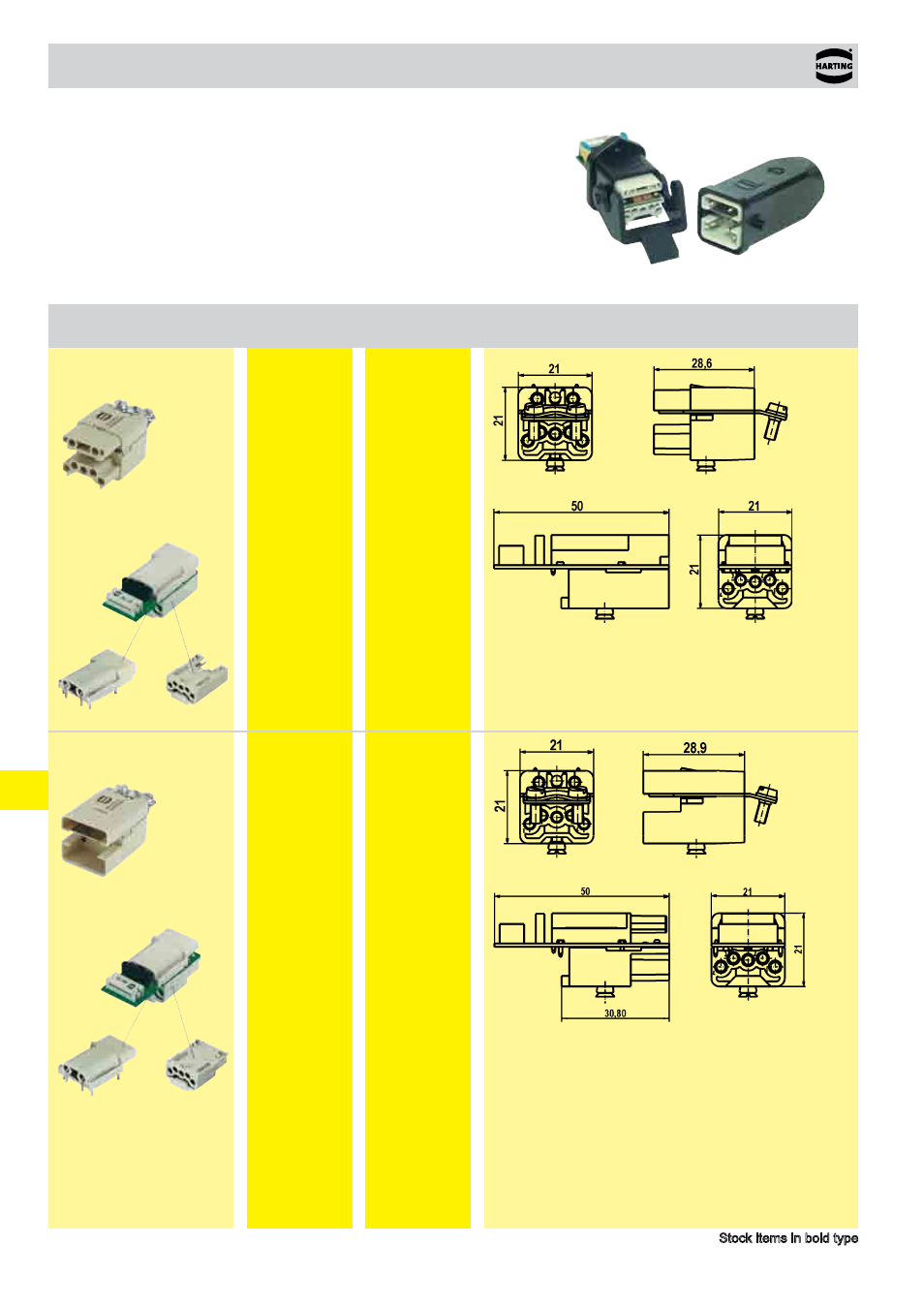

Stock items in bold type
Hybrid field bus connector
for shielded twisted pair
+ 4 electrical contacts 10 A
+ option for PE
Part number
Identification Male insert (M) Female insert (F) Drawing Dimensions in mm
Cable side
Female insert
view from termination side
Device side
Male insert
Also available as
single part
loaded
unloaded
unloaded
Cable side
Male insert
view from termination side
Device side
Female insert
Also available as
single part
loaded
unloaded
unloaded
