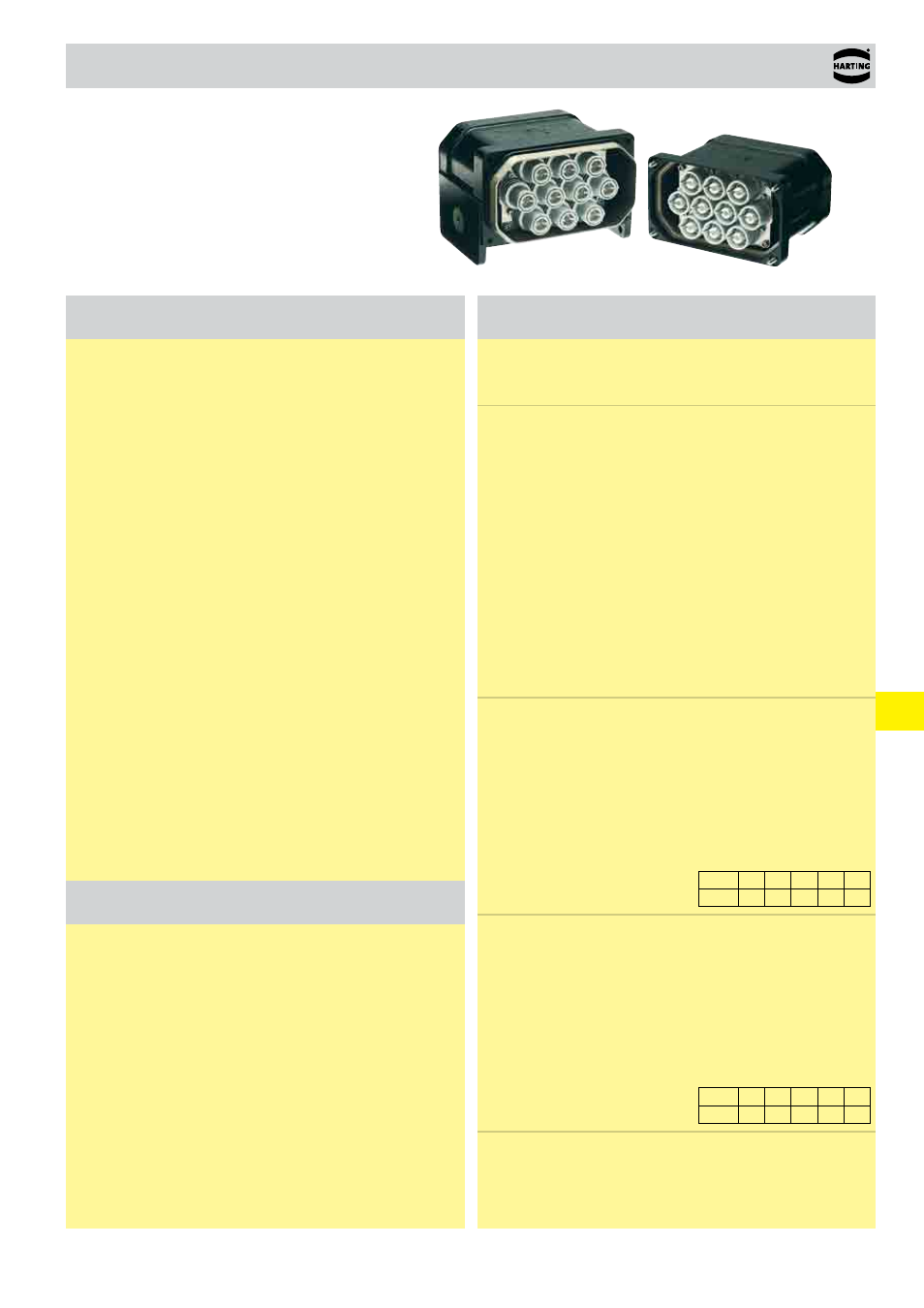

Han HC
Modular
14.
35
Han ® 48 HPR
4000 V 650 A
Features
• Easy assembly
• Good EMC features
• Secure termination, easy to control
• Vibration resistant acc. to DIN EN 61 373 Category
1B (Category 2 possible with usage of M6 distance
bolts)
• Ideal motor / drive connector for transportation
sector
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Inserts
Number of contacts i. e. 4, 5, 6, 10
depending on the frame
Electrical data
acc. to EN 61 984 350/650 A 4000 V 18 kV 3
Rated current 350/650 A
Rated voltage 4000 V
Rated impulse voltage 18 kV
Pollution degree 3
Insulation resistance ≥ 10 10 Ω
Material polyamide
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts Han ® HC Modular 350
Material copper alloy
Surface silver
Contact resistance ≤ 0.2 mΩ
Axial screw termination
- Wire gauge 1) 35 ... 120 mm²
- AWG 1 ... 0000
- Stripping length 19 ... 20 mm
- Max. cable diameter 19.5 mm
- Tightening torque
mm 2 35 50 70 95 120
Nm 8 10 12 14 16
Contacts Han ® HC Modular 650
Material copper alloy
Surface silver
Contact resistance ≤ 0.2 mΩ
Axial screw termination
- Wire gauge 1) 70 ... 185 mm²
- MCM 138 ... 350
- Stripping length 23 ... 25 mm
- Max. cable diameter 26.5 mm
- Tightening torque
mm 2 70 95 120 150 185
Nm 12 14 16 17 18
Frame
Tightening torque
of the fixing screws 2 Nm
Material stainless steel
Technical characteristics
Han ® HPR Hoods/Housings
Material aluminium die-cast, corrosion
resistant
Surface
- Top coat Epoxy powder paint
RAL 9005
Locking element Stainless steel
Tightening torque 4 Nm
Sealing NBR
Limiting temperatures -40 °C ... +125 °C
Degree of protection acc. to
DIN EN 60 529
for coupled connector IP 68
1) geometric wire gauge
