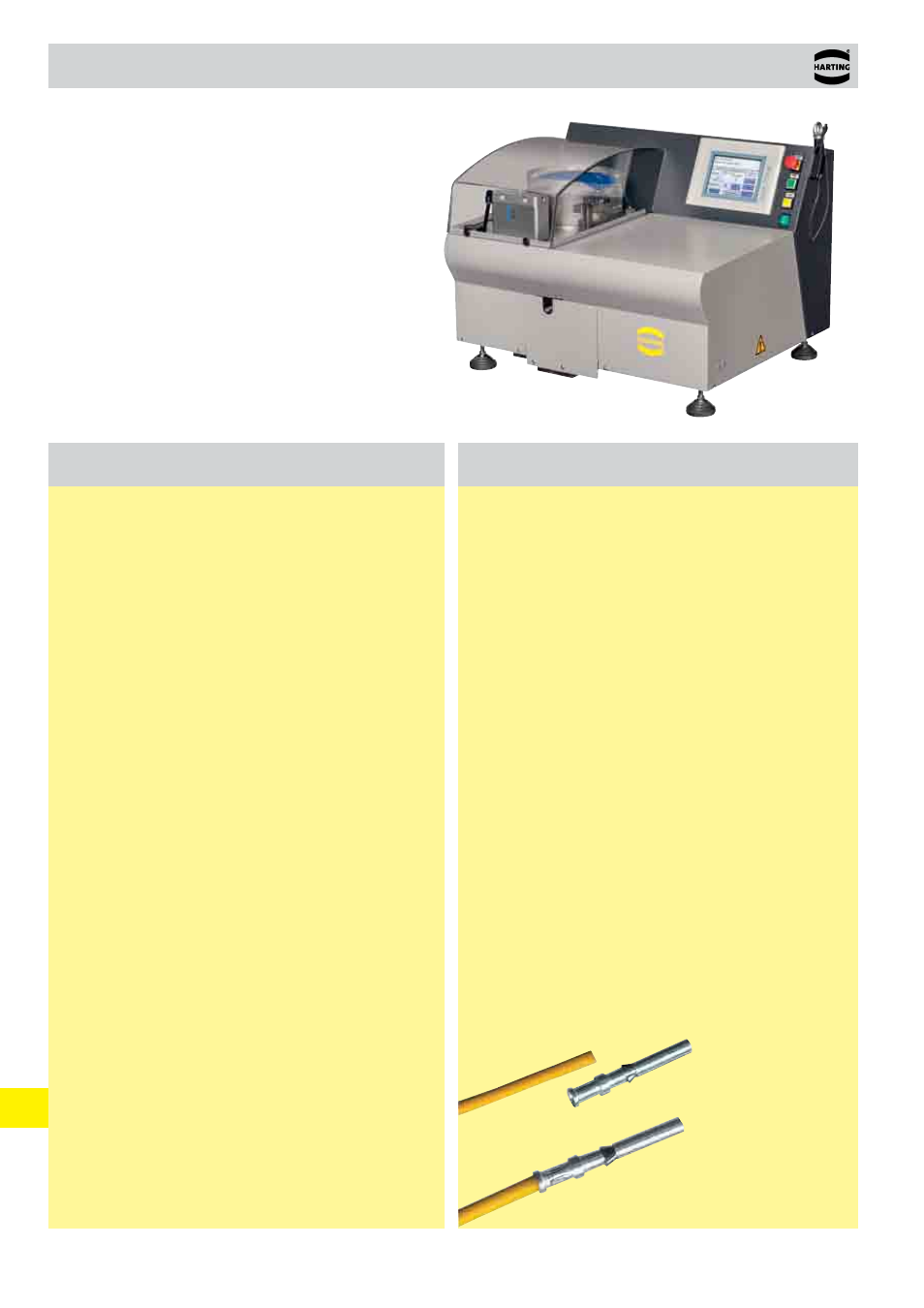

Crimping machine TC-SC
Features Technical characteristics
❏ Fast stripping and crimping in one operation
❏ Basic unit in compact construction
❏ Simple handling because of well-arranged
construction with touchscreen controlling
❏ For individual, turned male and female
contacts
(for the HARTING series Han D ® , Han E ® ,
Han ® C, Han P ® , Han-Yellock ® , D- Sub)
❏ Selective processing of male and female
contacts
(Wire gauge from 0 .14 mm 2 to 10 .0 mm 2 ,
AWG 28 to AWG 8)
❏ Contact magazine with filling control
❏ Reproducible, top quality gas-tight crimp
connections
❏ Motor-driven variable adjustment parameters
– Stripping depth
– Stripping length
– Crimping depth
– Wire position
❏ Infinitely variable adjustment parameters
– Wire retention force
– Crimp contact feed rate
❏ Low noise level
❏ For oil-free compressed air
❏ Very low setup effort
❏ Low maintenance costs of the modular con-
struction
Dimensions:
Height 480 mm
Width 650 mm
Depth 560 mm
Total weight: Approx . 75 kg
Local noise level: < 75 dB (A)
Drive: Electro-pneumatic
Electrical connection: 230 V, 50 Hz
Power rating:
1 .0 kW
Pneumatic pressure: 6 bar
Compressed air
connection: 3 dm³ / work cycle
Control system: PLC
Work cycle trigger: Sensor
Machine work cycle: 2 seconds (stripping and
crimping)
Crimp type: Four-notch crimping
Contact feed: Vibratory bowl feed
Stroke counters: Resettable daily
counter and quantity
preselection
