05
.
08
Han
Com
Han ® K 4/0, Han ® K 4/2
Features
• Combination of power and signal area in one
connector
• Screw termination for power and signal area
• Missing signal contacts for Han ® K 4/0
In accordance with the appropriate regulations a wire-end
sleeve has to be used at clamps without wire protection
(see „Screw terminal“, chapter 00).

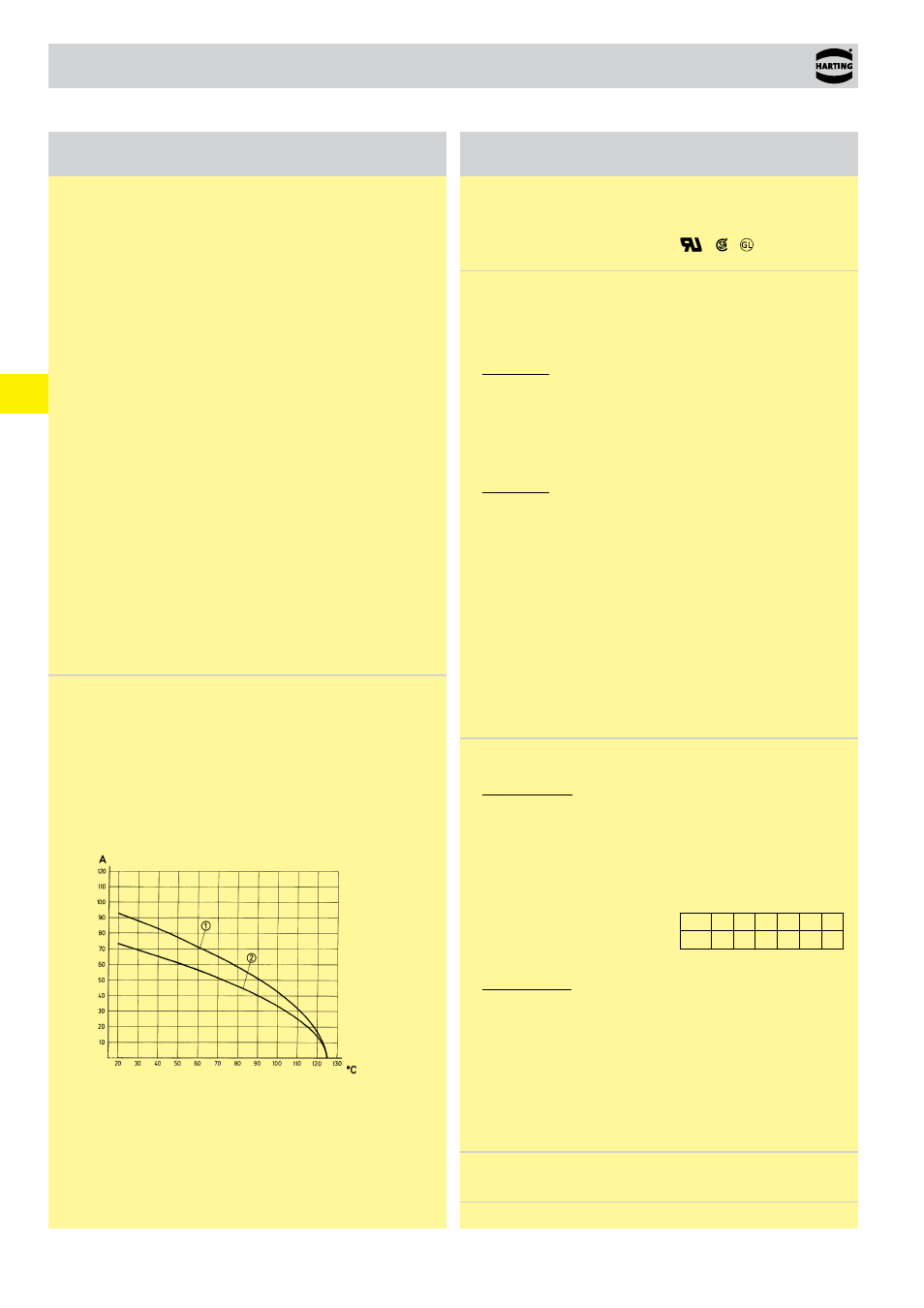

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
Wire gauge: ➀ 16 mm²
➁ 10 mm²
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Approvals , ,
Inserts
Number of contacts 4 / 2 + PE
Electrical data
acc. to EN 61 984
Power area 80 A 830 V 8 kV 3
Rated current 80 A
Rated voltage 830 V
Rated impulse voltage 8 kV
Pollution degree 3
Pollution degree 2 also 80 A 1000 V 8 kV 2
Signal area 16 A 400 V 6 kV 3
Rated current 16 A
Rated voltage 400 V
Rated impulse voltage 6 kV
Pollution degree 3
Pollution degree 2 also 16 A 400/690 V 6 kV 2
Rated voltage
acc. to UL/CSA 600 V / 300 V
Insulation resistance ≥ 10 10 Ω
Material polycarbonate
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Power contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 0.3 mΩ
Screw terminal
- geometric wire gauge 1.5 ... 16 mm²
- AWG 16 ... 6
Tightening tourque
mm² 1.5 2.5 4 6 10 16
Nm 1.2 2 3 3 3 3
Stripping length 14 mm
Signal contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 1 mΩ
Screw terminal
- geometric wire gauge 0.5 ... 2.5 mm²
- AWG 20 ... 14
Tightening tourque 0.5 Nm
Stripping length 7.5 mm
Hoods/Housings see chapter 31
