Han
Q
13
.
16
Han ® Q 12/0
Features
• 12 contact chambers for crimp contacts of Han D ®
series
• 1 PE contact with innovative Han-Quick Lock ®
termination technology
• 2 coding pins offering 16 coding possibilities
• Inserts suitable for metal and plastic hoods and
housings of the series Han ® 3 A
Attention
By using in Han ® 3 A HPR hoods/housings the sealing on the
insert has to be removed.

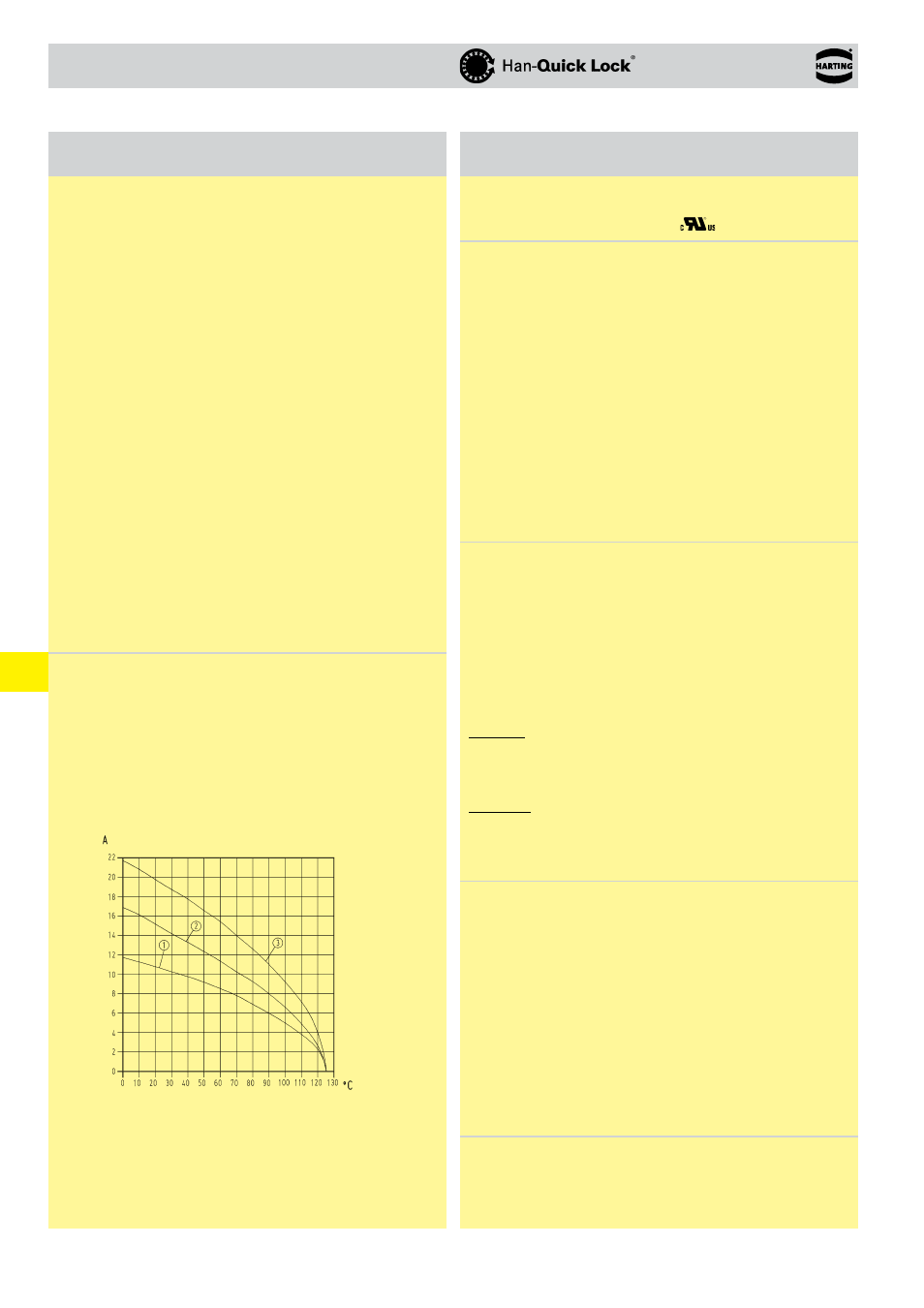

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5
Operating current
Ambient temperature
Wire gauge: ➀ 0.75 mm²
➁ 1.5 mm²
➂ 2.5 mm²
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Approvals
Inserts
Number of contacts 12 + PE
Electrical data
acc. to EN 61 984 10 A 400 V 6 kV 3
Rated current 10 A
Rated voltage 400 V
Rated impulse voltage 6 kV
Pollution degree 3
Pollution degree 2 also 10 A 400/690 V 6 kV 2
Rated voltage
acc. to UL/CSA 600 V
Insulation resistance ≥ 10 10 Ω
Material polycarbonate
Limiting temperatures -40 °C ... 125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 3 mΩ
Crimp terminal
- mm² 0.14 ... 2.5 mm²
- AWG 26 ... 14
Termination PE contact Han-Quick Lock ®
blue slide
Terminal wire gauge
0.5 ... 2.5 mm 2
(AWG 20 - 14)
max. Insulation diameter 3.6 mm
black slide
Terminal wire gauge
0.25 ... 1.5 mm 2
(AWG 23 - 16)
max. Insulation diameter 3.0 mm
Hoods/Housings
Selection of hoods/housings see chapter 31
Plastic hoods/housings
Material polycarbonate
Flammability acc. to UL 94 V 0
Degree of protection acc. to DIN EN 60 529
for coupled connector IP 67
Hoods/Housings, metal
Material zinc die-cast
Degree of protection acc. to DIN EN 60 529
for coupled connector IP 44
IP 67 is achieved with seal
screw
"https://b2b.harting.com/ebusiness/en/
09 20 000 9918
"
Accessories
Crimping tools chapter 99
Cable clamps chapter 95
Sealing screw chapter 95
