Tools

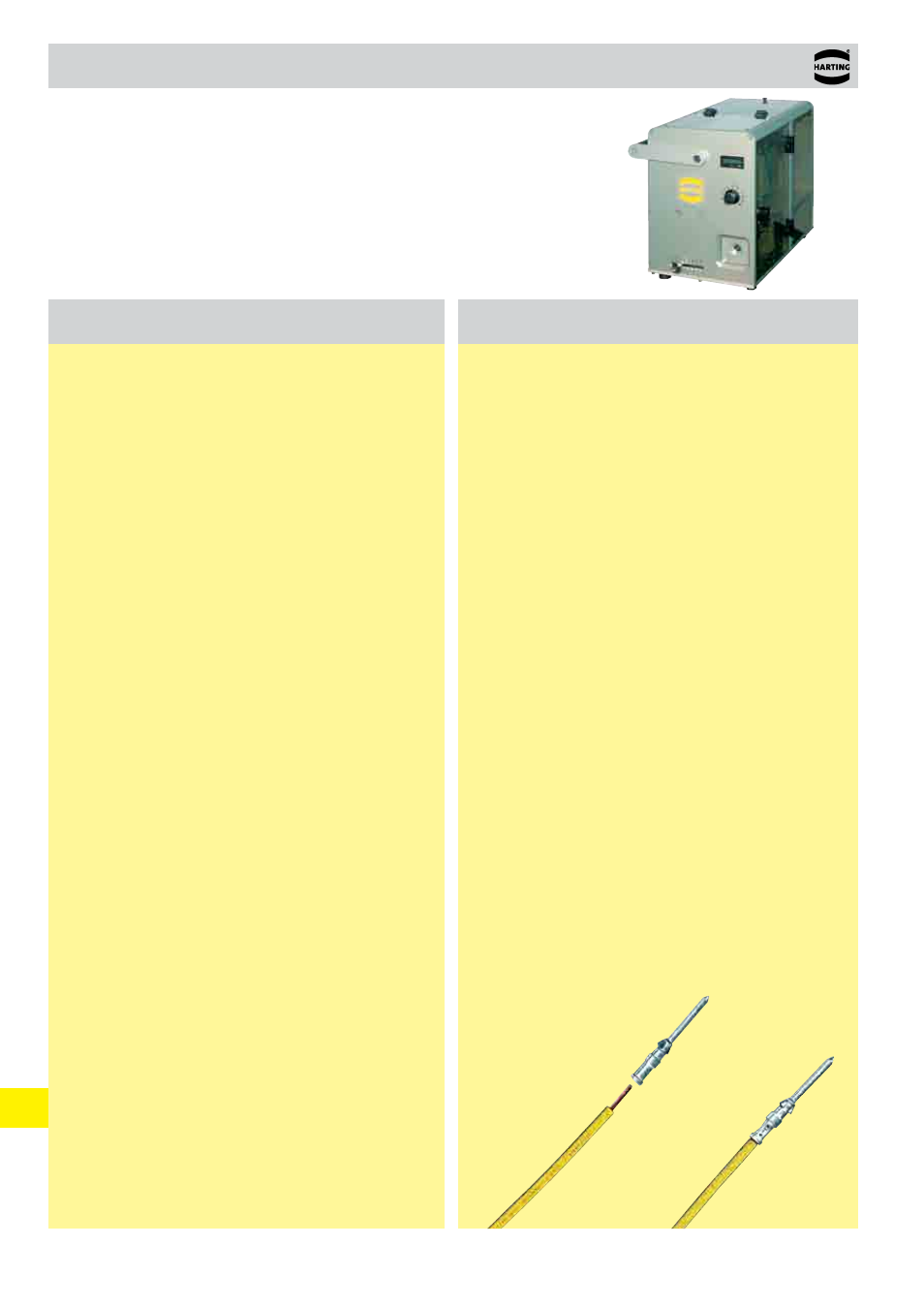

Crimping machine TC-C01
Features Technical characteristics
❏ Basic unit in compact construction for
pre-stripped wire
❏ Simple handling due to ergonomic design
❏ For individual, turned male and female con-
tacts
❏ Selective processing of male and female
HARTING contacts (wire gauge from
0 .14 mm² to 10 .0 mm², AWG 26 to AWG 8)
❏ Automatic contact feed
❏ Reproducible, top quality gas-tight crimp
connections
❏ Non-slip, anti-vibration adjustable feet for
setting the height
❏ Low noise level
❏ Can be transported with carrying handle
❏ Removable electric and pneumatic supply
connections
❏ Maintenance interval counter
❏ Minimal setup effort
❏ Crimping depth can be set without tools
❏ Low maintenance costs
❏ Low follow-up costs for maintenance and
repair
❏ Easy replacement of wearing components
Dimensions:
Height 345 mm
Width 230 mm
Depth 400 mm
Total weight: app . 24 kg
Local noise level: 62 dB (A)
Electrical connection: 230 V, 50 Hz
Power rating: 0 .20 kW
Compressed air
connection: 6 bar
Control system: PLC
Work cycle trigger: Footswitch
Machine work cycle: 1 second
Crimp type: Four-point crimping
Contact feed: Vibratory bowl feed
Stroke counters: Resettable daily counter
and permanent counter
