Han HC
Modular
14
.
10
Han
®
HC Modular 350
Current carrying capacity

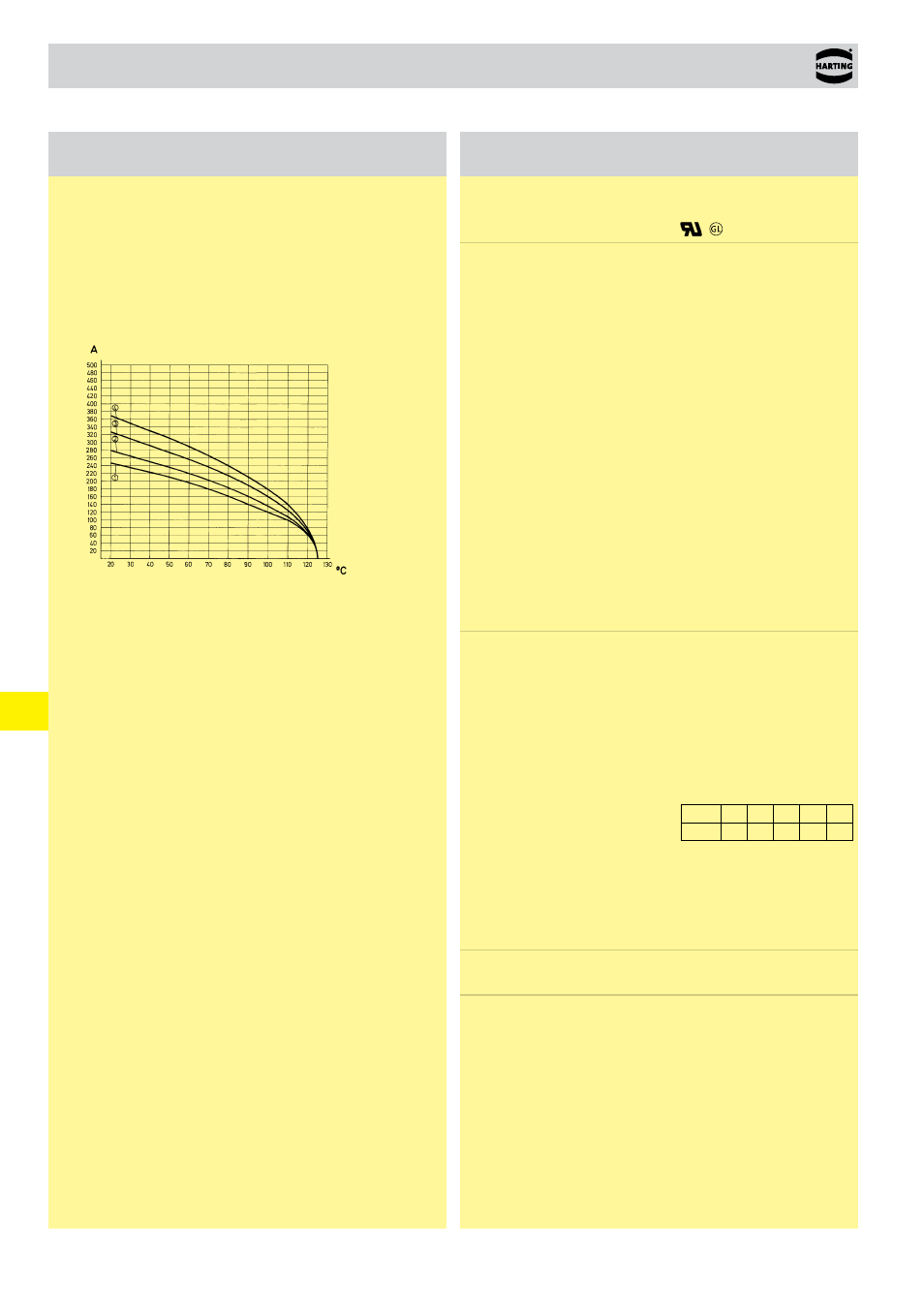

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
➀ Wire gauge 50 mm²
➁ Wire gauge 70 mm²
➂ Wire gauge 95 mm²
➃ Wire gauge 120 mm²
three contacts in Han
®
24 HPR
Technical characteristics
Specifications
DIN EN 60 664-1
DIN EN 61 984
Approvals
,
Inserts
Number of contacts
1, 2, 3 or 3 + PE
Electrical data acc. to EN 61 984
without adapter
350 A 2000 V 12 kV 3
Rated current
350 A
Rated voltage
2000 V
Rated impulse voltage
12 kV
Pollution degree
3
with adapter
350 A 4000 V 18 kV 3
Rated current
350 A
Rated voltage
4000 V
Rated impulse voltage
18 kV
Pollution degree
3
Insulation resistance
≥ 10
10
Ω
Material
polyamide
Limiting temperatures
-40 °C ... +125 °C
Flammability acc. to UL 94
V 0
Mechanical working life
- mating cycles
≥ 500
Contacts
Material
copper alloy
Surface
silver
Contact resistance
≤ 0.2 mΩ
Axial screw termination
- Wire gauge
1)
35 ... 120 mm²
- AWG
1 ... 0000
- Stripping length
19 ... 20 mm
- Max. cable diameter
19.5 mm
- Tightening torque
mm
2
35 50 70 95 120
Nm
8 10 12 14 16
Screw terminal
- Thread
- Wrench size
- Tightening torque
M 10
SW 17
14 Nm
Hoods/Housings
For technical details see chapter 31
Frame
Tightening torque
of the fixing screws
0.5 Nm
Tightening torque
of the cross-tying screws
on the frame for 4 poles
1.5 Nm
Material
stainless steel
1)
geometric wire gauge
