Han
Q
13
.
24
Han ® Q 4/2 Crimp
Features
• 4 power contacts Han ® C and 2 signal contacts
Han D ®
• Finger protection
• Leading protective ground with crimp terminal
• Inserts suitable for standard plastic and metal
hoods/housings with additional PE contact from
the Han-Compact ® size

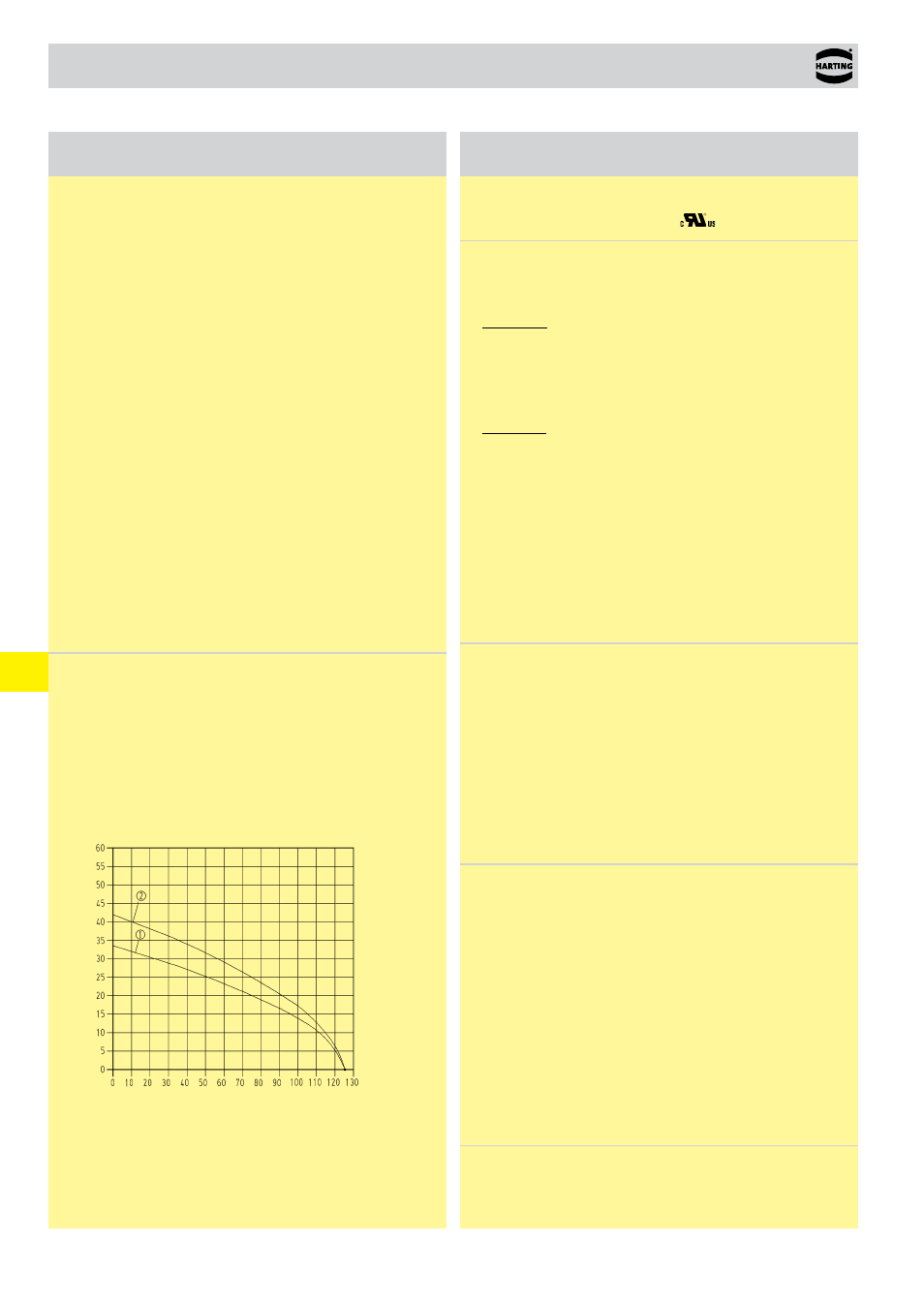

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5
Operating current
Ambient temperature
Wire gauge: ➀ 2.5 mm²
➁ 4 mm²
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Approvals
Inserts
Number of contacts 4 / 2 + PE
Electrical data
acc. to EN 61 984
Power side 40 A 400/690 V 6 kV 3
Rated current 40 A
Rated voltage conductor - ground 400 V
Rated voltage conductor - conductor 690 V
Rated impulse voltage 6 kV
Pollution degree 3
Signal side 10 A 250 V 4 kV 3
Rated current 10 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Rated voltage
acc. to UL/CSA 600 / 250 V
Insulation resistance ≥ 10 10 Ω
Material polycarbonate
Limiting temperatures -40 °C ... 125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 0.3 mΩ
Crimp terminal
- mm² 1.5 ... 6 mm² /
0.14 ... 2.5 mm²
- AWG 16 ... 10 /
26 ... 14
Max. insulation diameter
- Power contacts 5 mm
Hoods/Housings
Plastic hoods/housings
Material thermoplastic
Locking element Polyamide
Hoods/Housings seal NBR
Limiting temperatures -40 °C ... 125 °C
Flammability acc. to UL 94 V 0
Degree of protection acc. to DIN EN 60 529
for coupled connector IP 65
Hoods/Housings, metal,
with additional PE contact
Material metal
Locking element Stainless steel
Hoods/Housings seal NBR
Limiting temperatures -40 °C ... 125 °C
Degree of protection acc. to DIN EN 60 529
for coupled connector IP 65
Accessories
Crimping tools chapter 99
