95
.
19
"https://b2b.harting.com/ebusiness/en/
09 33 000 9910
"
1)
"https://b2b.harting.com/ebusiness/en/
09 33 000 9912
"
1)
"https://b2b.harting.com/ebusiness/en/
09 00 000 5340
"
"https://b2b.harting.com/ebusiness/en/
09 00 000 5339
"

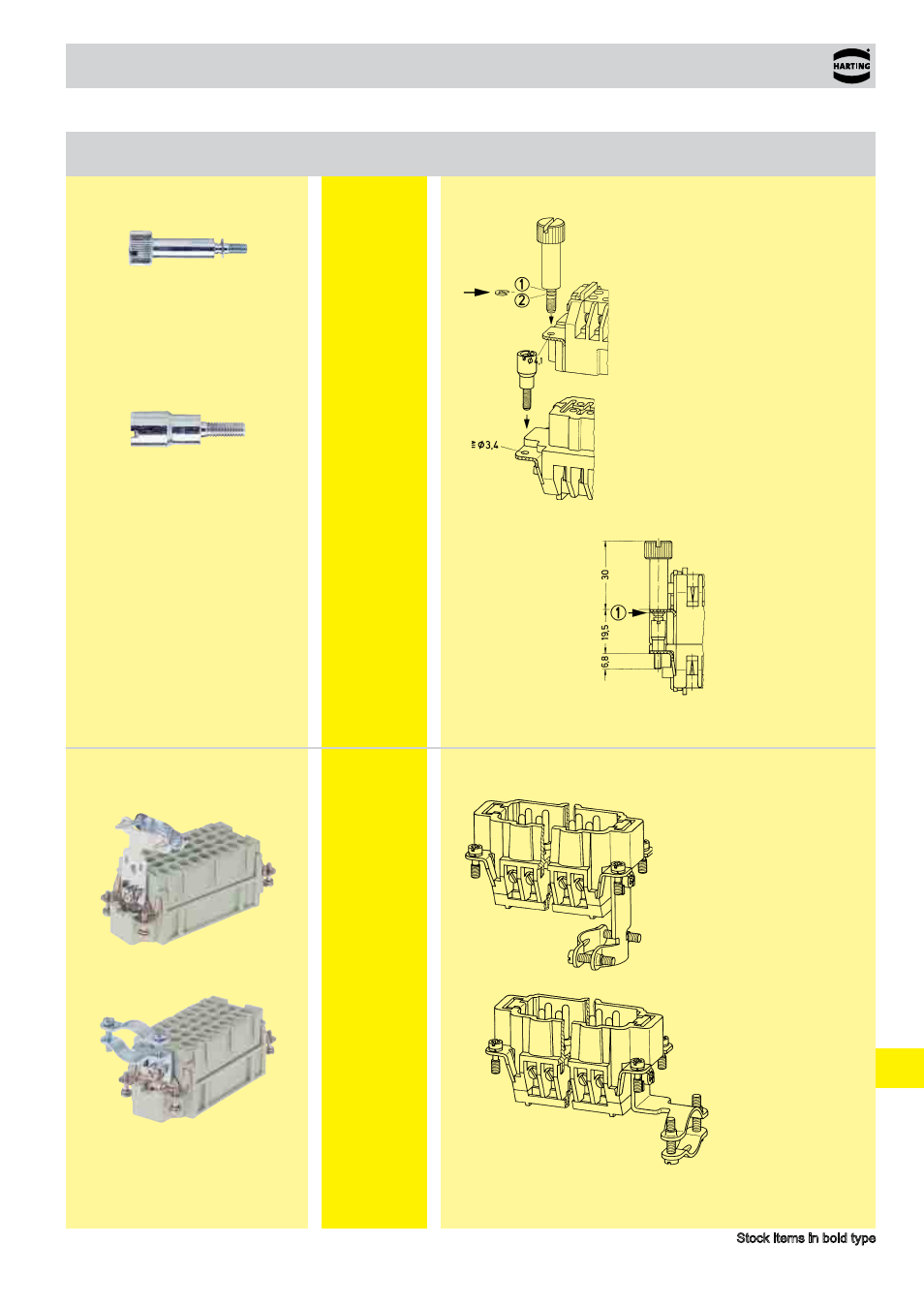

Accessories
Special insert fixing screws
Screw pin
Bush
When using inserts without hoods
or housings and requiring a locking
facility this system is suitable for all
rectangular connectors of the Han ®
series. For each connector we re-
commend two screw pins and two
bushes as shown which are fitted
diagonally to the inserts instead of
the ordinary fixing screws. Holes for
fixing to be drilled as shown.
Mounting example
Straight cable clamp fitting
straight
angled
When using inserts without hoods
or housings and requiring a strain
relief this system is suitable for all
rectangular connectors of series
Han DD ® , Han ® 40-64 D, Han E ®
/ Han ® ES, Han ® HsB, Han Hv E ®
/ Han ® Hv ES, Han ® EE, Han ® K
8/24. Fitted at the opposite end to
the PE-termination.
Range of delivery:
Cable clamp fitting with 2 screws M3
Fixing screw M4 with washer
Clamping range of strain relief clamp: 9...19 mm
Han ® Accessories
Stock items in bold type
Identification Part number Drawing Dimensions in mm
1) Order 2 pieces for one connector
