Han
A
01
.
04
Technical characte-
ristics Han ® 3 A with
HARAX ® termination
Han ® 3 A with HARAX ® termination
Features
• Time saving rapid termination technique HARAX ®
• Advantages of HARAX ® first in an industrial con-
nector
• Reconnection to the same or bigger wire gauge up
to 10 times
• No special tools required
Specifications DIN EN 61 984
DIN EN 60 352-4
DIN EN 60 664-1
Approvals ,
Technical characteristics
Conductor cross section 0,75 - 1,5 mm²
Cable outside diameter 6 - 9 mm
Wire diameter ≤ 2,8 mm
Wire of ind. strands ≥ 0,2 mm
Insulation material PVC
Degree of protection IP 65 / IP 67
Rated current 10 A
Rated voltage 230 / 400 V
Tightening torque
of screw cap 8 Nm
Limiting temperatures -40 °C ... +85 °C

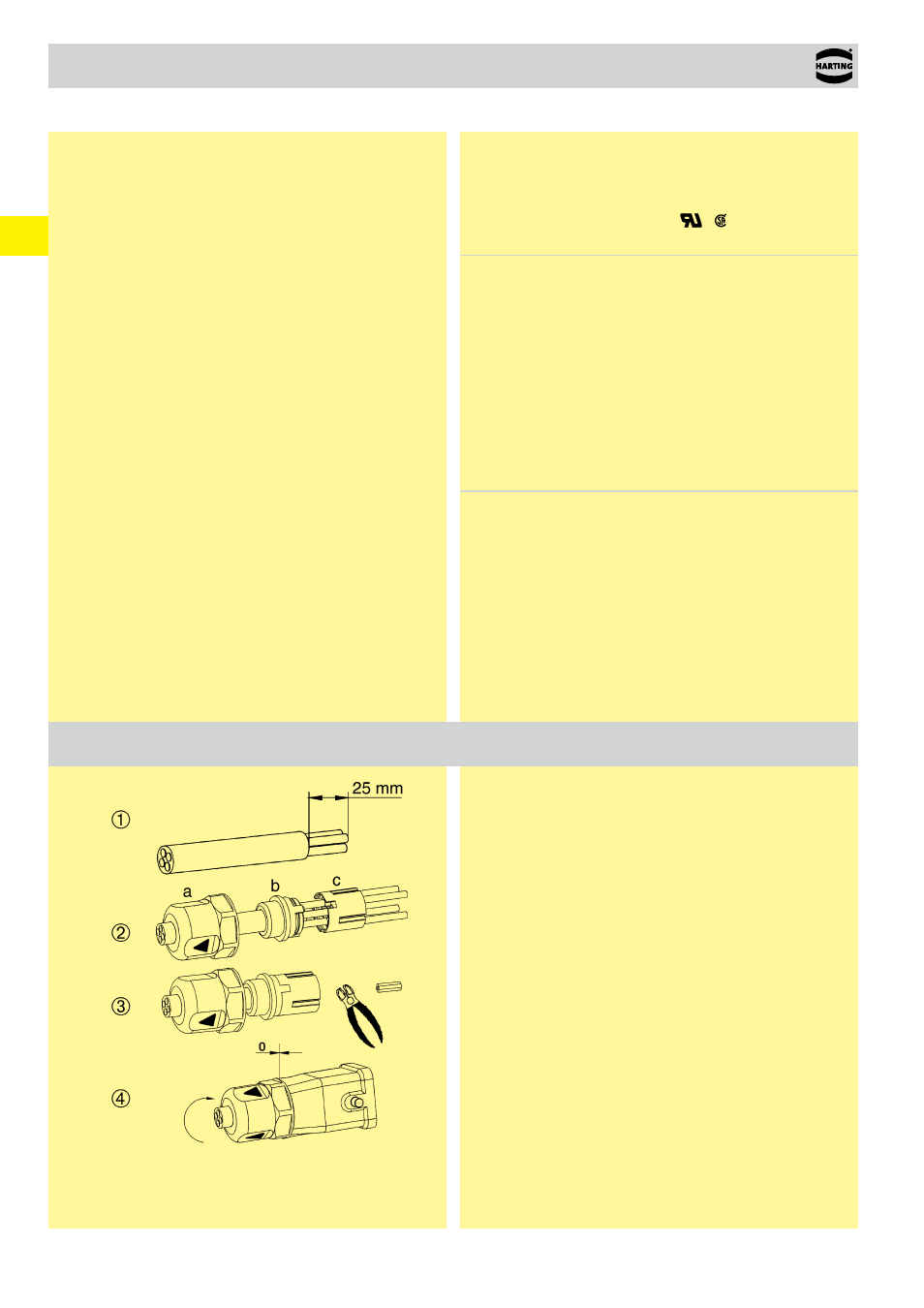

Assembly instructions
1. Strip off cable mantle
2. Assemble HARAX ® elements
3. Cut off cable ends
4. The nut must be screwed completely down until
the notches engage on the contact carrier nut
latch
a = Screw cap
b = Sealing
c = Splice ring
Included in delivery:
Screw cap, sealing, splice ring
