Northern Connectors Harting HAN Industrial Rectangular Connectors - Manual (Page 337)

20
.
20
① ① ②
PCB
termination
PCB Adapter for Han ® DDD module
Features Technical characteristics
• Modular construction
• Robust design
• Suitable for standard Han
® and EMC hoods
and housings
• Low wiring costs
Han ® DDD module with PCB adapter
Electrical data
acc. to DIN EN 61 984 7.5 A 160 V 2.5 kV 3
Rated current 7.5 A
Rated voltage 160 V
Rated impulse voltage 2.5 kV
Pollution degree 3
Wire gauge 0.14 ... 2.5 mm²

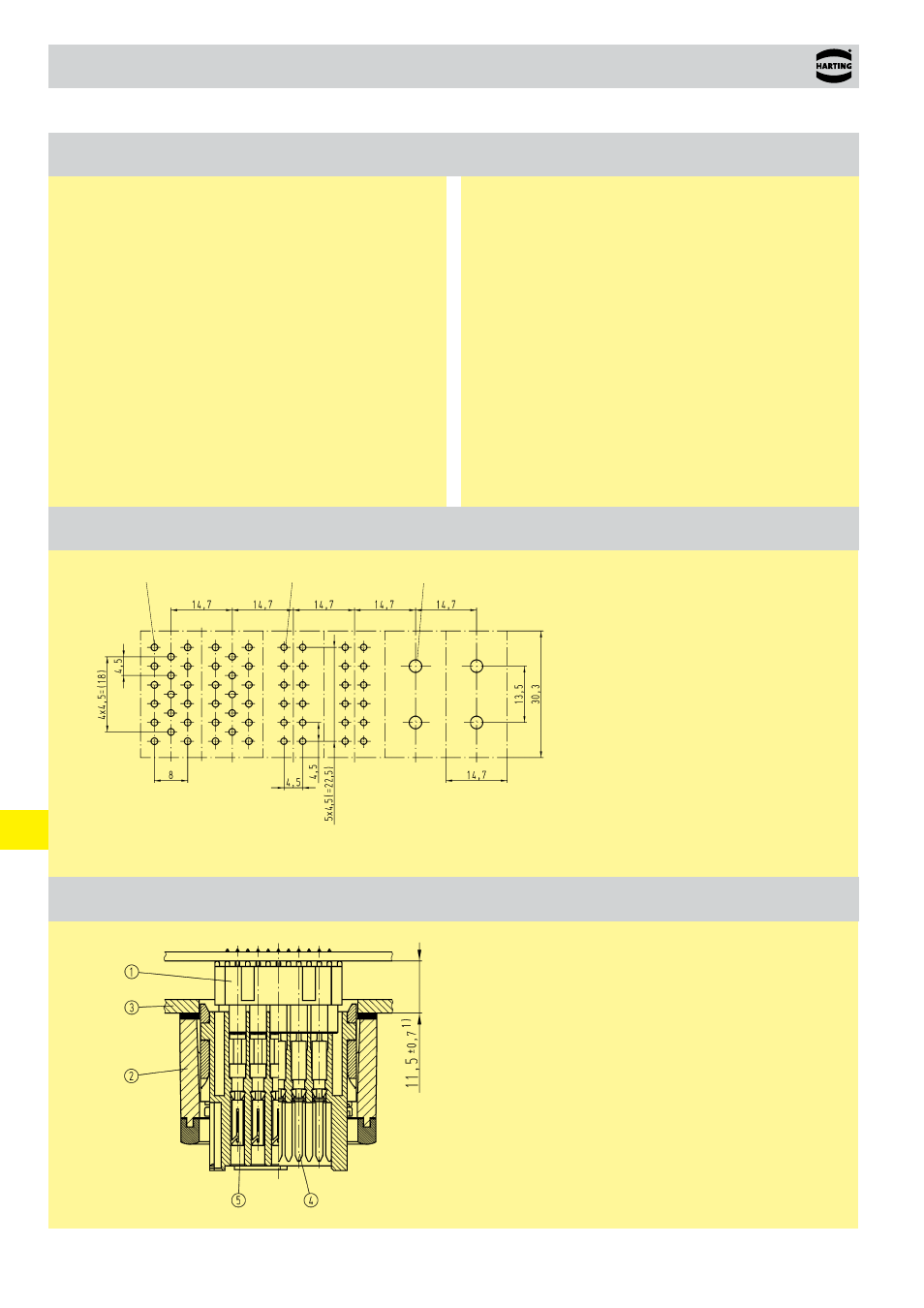

Layout of PCB
Assembly situation
Dimensions in mm
Dimensions in mm
① Recommended hole diameter: 0.8 mm
② Recommended hole diameter: 3.2 mm
① Han DDD ® PCB adapter 5 pins
② Han ® B bulkhead mounted housing
③ Switch board panel
④ Han D ® double male contact,
"https://b2b.harting.com/ebusiness/en/
09 15 000 6197
"
⑤ Han D ® double female contact,
"https://b2b.harting.com/ebusiness/en/
09 15 000 6291
"
For further information and Han-Modular ® frames please refer to chapter 06 (Han-Modular ® )
Han ® DDD module Han ® DD module Han ® 70 A module
1) for Han ® B EMV hood and housing spacing of 12.5 ±0.7 mm
is necessary as no flange seal is used.
