PCB
termination

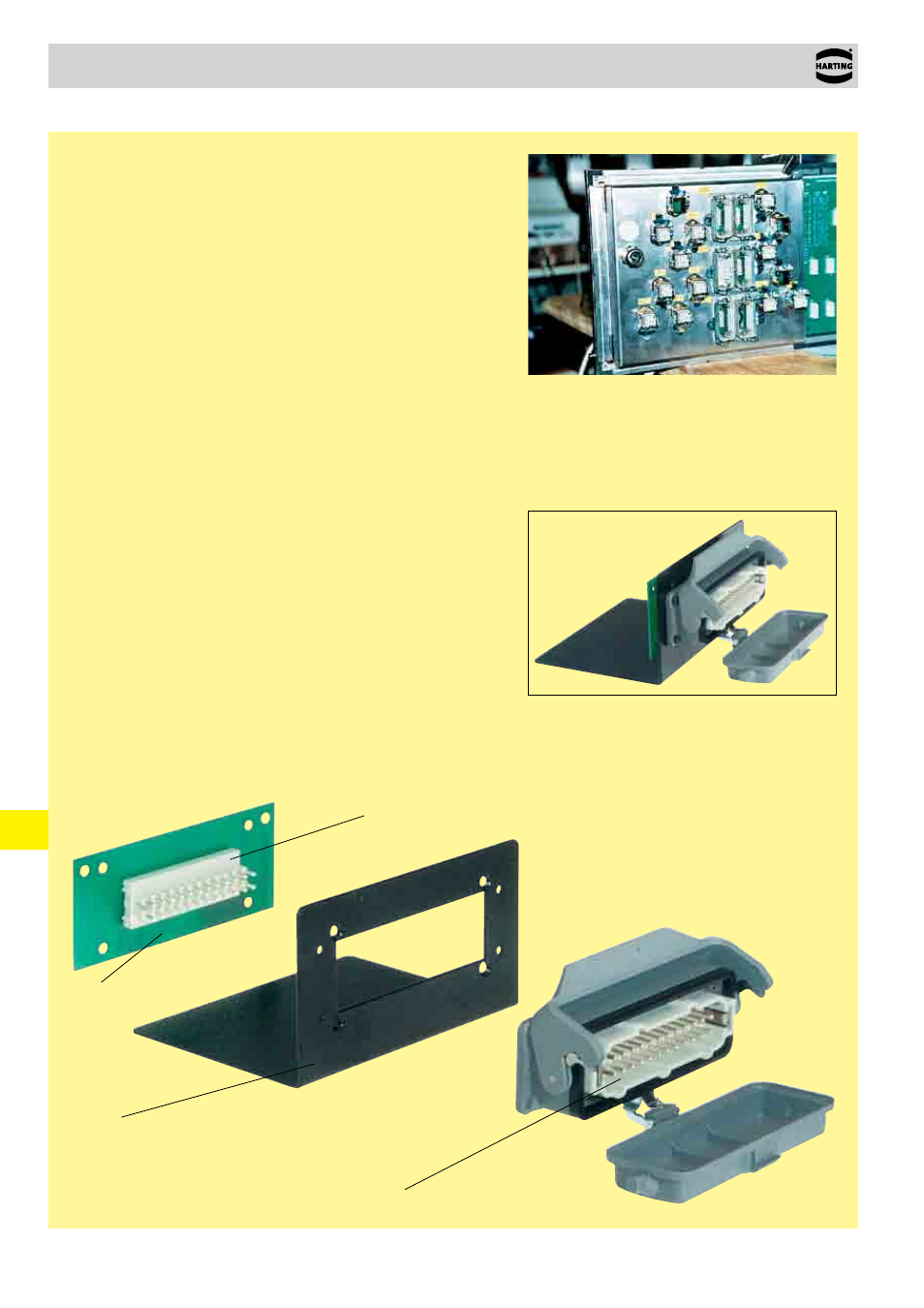

Han ® PCB-adapter Applications
● Secondary mating between industrial connector and
printed circuit board.
● No higher force is applied on the soldering joint when ma-
ting the industrial connector due to an additional matting
point.
● No wiring between printed circuit board and industrial
connector necessary.
● This no wiring faults ➪ no testing, no costs
● Connecting times are minimized.
● Easy handling is time and cost saving.
● The production of mechanical and electrical / electronical-
ly components can be completely separated.
● Possibility to reach a higher degree of automation in the
production (i. E. wave soldering of the PCBs).
➀ PCB-adapter for Han E
®
➁ Han E
® connector in a bulkhead mounted
housing
➂ Switch board panel
➃ Printed circuit board (PCB)
Han DD ® dnd Han ® Q 5/0 PCB-adapter
Wilhelm Fette GmbH, Germany
Han E ® PCB-adapter
