325
H
ARVEST
C
LAAS
Q
UANTIMETER
Notes:

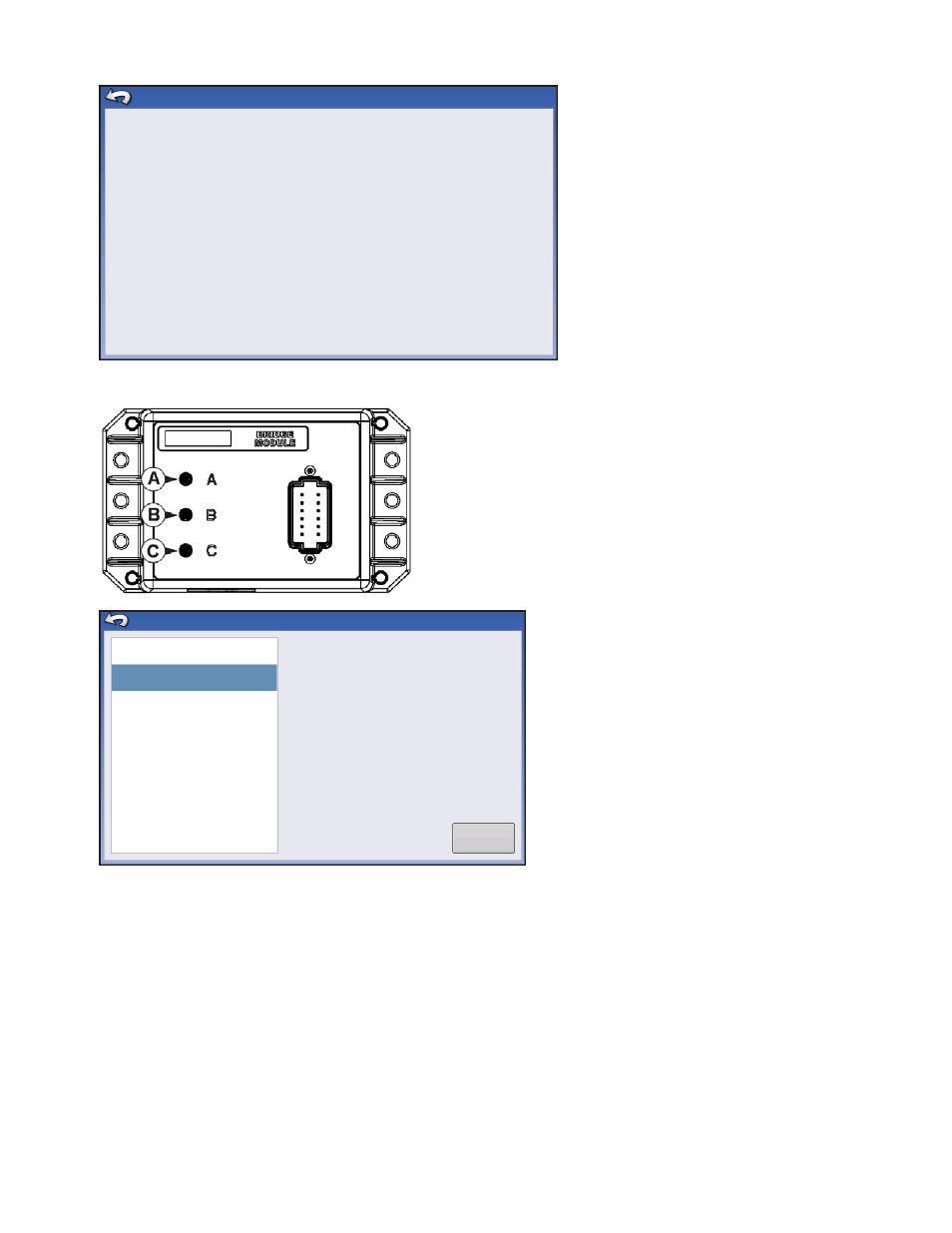

• The Grain Harvest Diagnostics screen
displays different information than the
Diagnostics screen that appears for other
Harvest configurations. This information is
relayed from the CEBIS monitor.
For specific information regarding
settings shown on this screen, contact
Technical Support.
Bridge Module
The Bridge Module routes communication between
• (A) CAN-Bus
• (B) ParaDyme CAN-Bus
• (C) CLAAS CAN-Bus
Three indicator lights verify communication received from
these systems. A green light indicates good communication;
an amber light indicates no communication.
When the Bridge Module is communicating
with the display, it should appear on the
display’s Devices list. (For more information
on Device Information, see
“Device
Information” on page 77 ).
T
ROUBLESHOOTING
CLAAS Q
UANTIMETER
C
ONFIGURATIONS
During the operation of a CLAAS Quantimeter field operation configuration, you may see the following
error messages. Below is a table describing the cause and solution of the error messages that could
appear.
Error Message: Warning: “Full header width doesn’t match Quantimeter full header width”
Possible Cause: The full header width that was specified in the display’s Header Setup Wizard does
not match the header width in the CEBIS monitor.
Solution: Set the swath width in the CEBIS monitor to match the swath width of the
operating configuration in the display.
Error Message: Crop Type Changed: “The current configuration is no longer valid”
Cal Factor
Moisture
Temperature
Header
Ground Speed
Density
Header Width
Active Width
Grain Type
1.35
18.6 %
73.4 F
Down
5.5 mph
60 lb/bu
29.9 ft
29.9 ft
3
Engine Hours
Threshing Status
Separator Hours
Chopper Hours
Total Fuel
Total Fuel (Field)
Total Fuel (Road)
Active Segments
Engine Speed
1395.6
OFF
1250.5
1248.2
290.6 gal
178.3 gal
112.3 gal
10
1112 rpm
Header Segments
Total Distance
Distance (Field)
Distance (Road)
Total Yield
Total Yield (Dry)
Fuel Rate
Calibration Flow
Header Pos
10
182168.6 ft
164042 ft
18126.6 ft
1090.7 T
1019.9 T
2.6 gal/h
2058.4 bu/h
25 %
Grain Harvest Diagnostics
Firmware:
Firmware ID:
Hardware ID:
Serial Number:
Revision:
Run Time:
Boot Counter:
1.0.15
AL BRIDGE
4001826
2009010001
1.255.255.255
34209
212
Devices
DISPLAY
207 AL BRIDGE
Diagnostics
