The following settings appear on the General Tab.
Minimum Height Mode includes three selections:
• Absolute
no sensors are allowed to move closer to the target than
the minimum height setting.
• Relative
no sensors are allowed to move closer to the target than
the distance of the target height minus the minimum
height setting.
• Disabled
Disables the minimum height mode.
Note: “Target” refers to the ground in Soil Mode, and the crop canopy in Crop Mode.
• Minimum Height. If desired, press
to adjust the following settings.
- Soil Mode - The minimum height setting when operating in Soil Mode.
Crop Mode - The minimum height setting when operating in Crop Mode.
Also, consult the NORAC UC5
manual for more information.
• Advanced Settings
For use by a technician.
• Retune
From time to time it may be necessary to recalibrate (Retune) the UC5 electronics to your sprayer’s
hydraulics. Examples of such times are:
• When a hydraulic solenoid valve is changed.
• When the hydraulic pump is changed or adjusted.
• When the normal working temperature of the hydraulic oil has shifted significantly from when the system
was previously calibrated.
If you are running a pull type sprayer and use different tractors to operate the sprayer, you should run
the Retune procedure each time the tractor is changed. If you have a flow control for the boom
hydraulics, set it prior to tuning. If you change the flow setting by more than 20 percent, you should
Retune.
L
OAD
C
ONFIGURATION
Press: Select Event button.
Select a Season, Grower, Farm, and
Field on the Management Selection
screen.

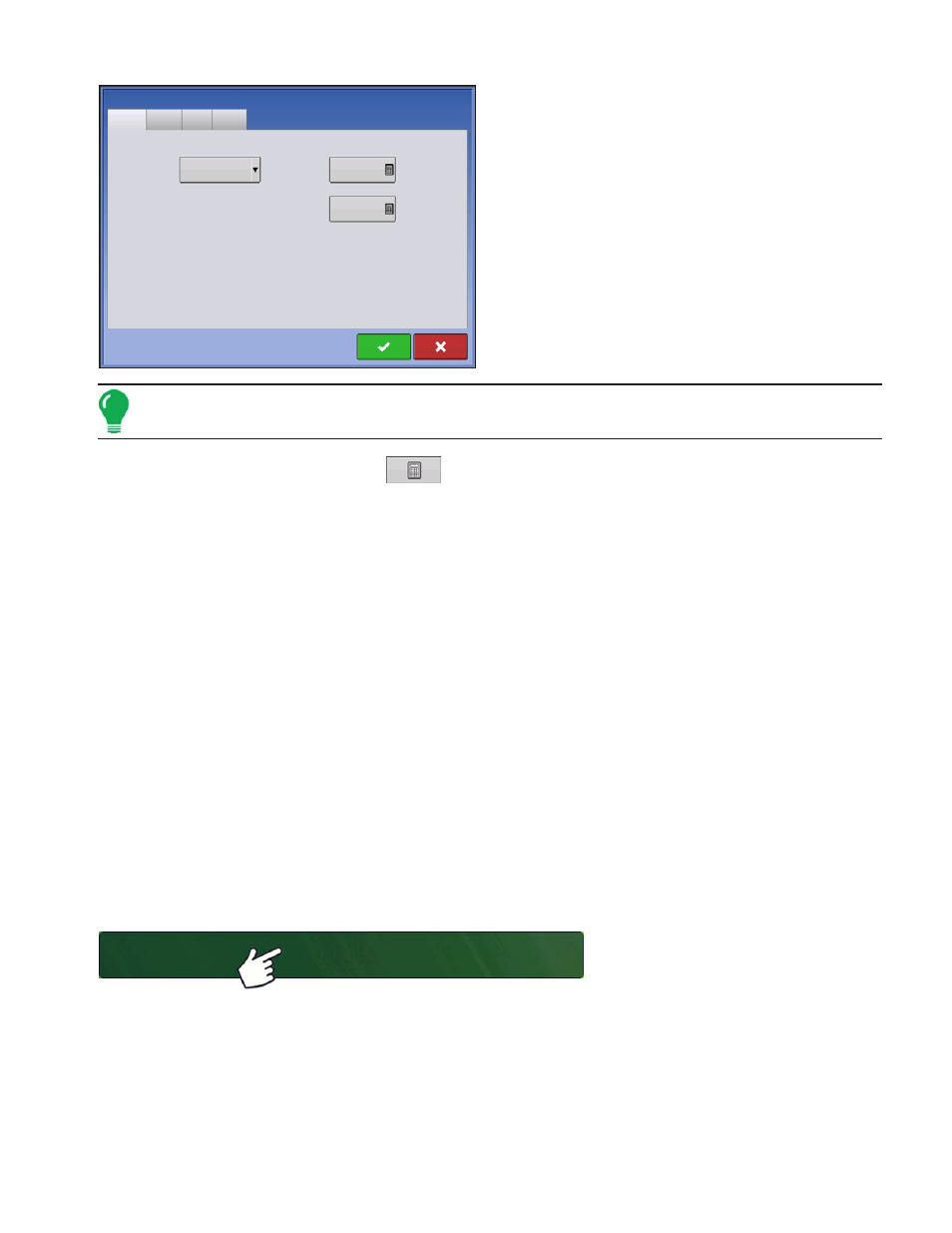

Norac UC5 Setup
General
Sensor
Valve
Switch
Minimum Height Mode
Disable
Minimum Height
Soil Mode
24 in.
Crop Mode
24 in.
Select Event
