Firmware Version 5.2

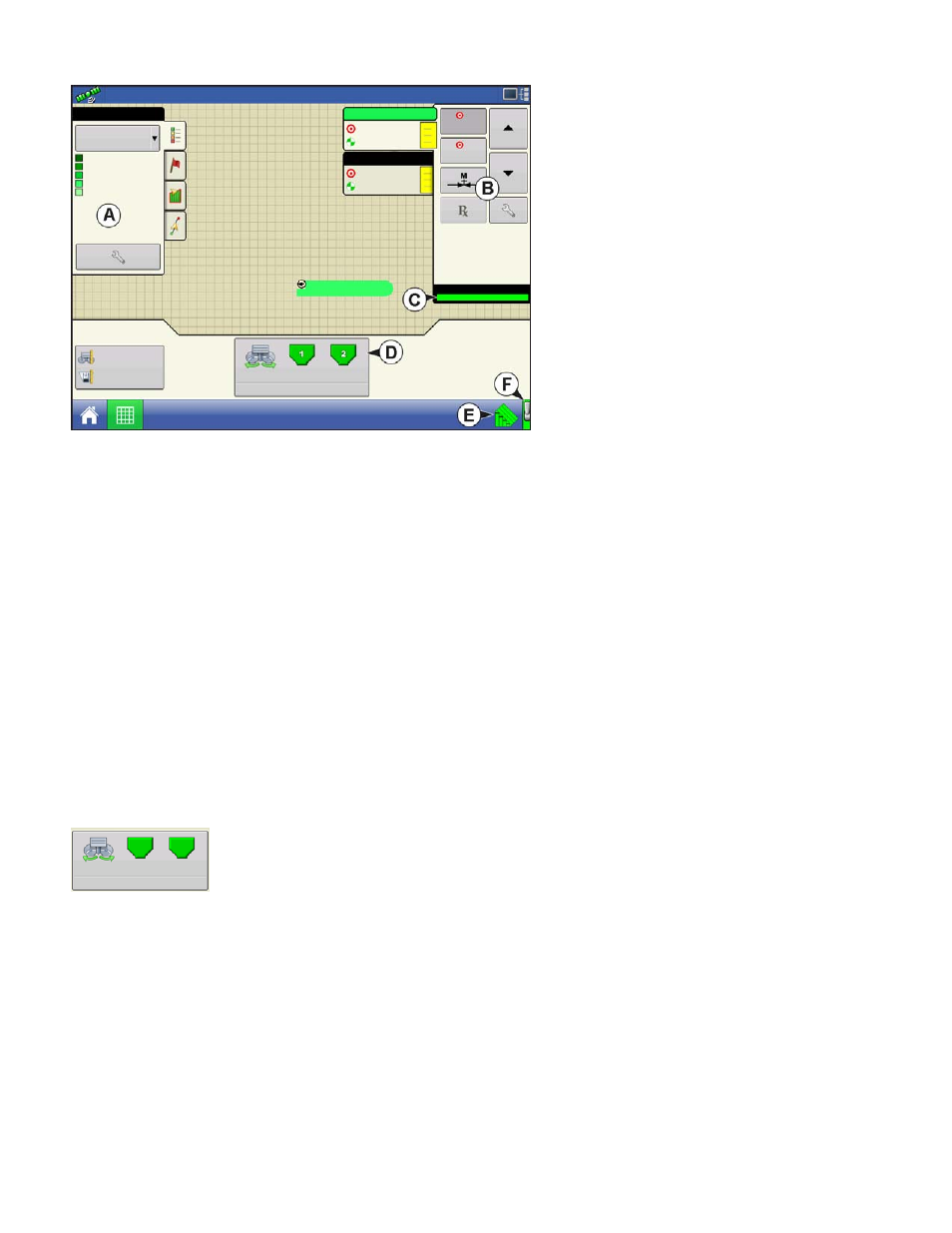

• (A) Mapping Toolbox
• (B) Product Control Toolbox
• (C) Conveyor Indicator
• (D) Spreader Control button
• (E) AutoSwath
• (F) Master Switch Status (on)
S
PINNER
S
PREADER
,
WITH TWO
-
BIN
CONFIGURATION
• Spreader Control button
Displays the status of the product control channel. The Conveyor Speed (in RPM) is shown underneath the
bin icon; the Spinner Speed (also in RPM) is shown at bottom. Press the Spreader Control button to display
the Spreader Control screen and settings. These settings include Spread Width, Spinner Speed (if
enabled), Product Density, Feed Gate Opening, and Conveyor Rate. For more information, see section
beginning at
“Spreader Control screen” on page
• Conveyor Indicator
The Conveyor Indicator is shown at the bottom of the Product Control toolbox when the Map screen is
shown in Zoom to Extent. When the Map screen is shown in the Zoom to Details view or Perspective View,
the conveyor indicator is shown as a bar that appears behind the vehicle icon.
R
UN
T
IME
O
PERATIONS
During Run Time Operations, Spinner Spreader operators can press the Spreader
Control button to open the Spreader Control screen. At this screen, you can adjust
Spread Width, Spinner Speed, Product Density and other settings.
• Each of these settings described below must be set for each individual Product Channel (bin).
• Changed settings do not take effect until verified. However, if your machine is equipped with Fan Frame
& Feed Gate Actuators, and you have also purchased a New Leader Linear Actuator unlock code, the
settings on the spinner bed will change automatically.
• The Spread Width, Spinner Speed, Product Density, Feed Gate 1 Opening and the Conveyor 1 Rate
are all stored with each combination of product and control channel.
205 +
185 - 205
165 - 185
145 - 165
0 - 145
Rate
Flow:
Container:
272.4 lb/min
146 bu
1.91
ac
15.0
mph
200.00
150.00
lb/ac
1
200
2
175
DAP
150.00
200.00
Potash
lb/ac
60 ft 0 in
Fan Frame
Feed Gate
3.5
2.0
25
25
700
1
DAP
RPM
1
2
25
25
700
RPM
