182 Firmware Version 5.2

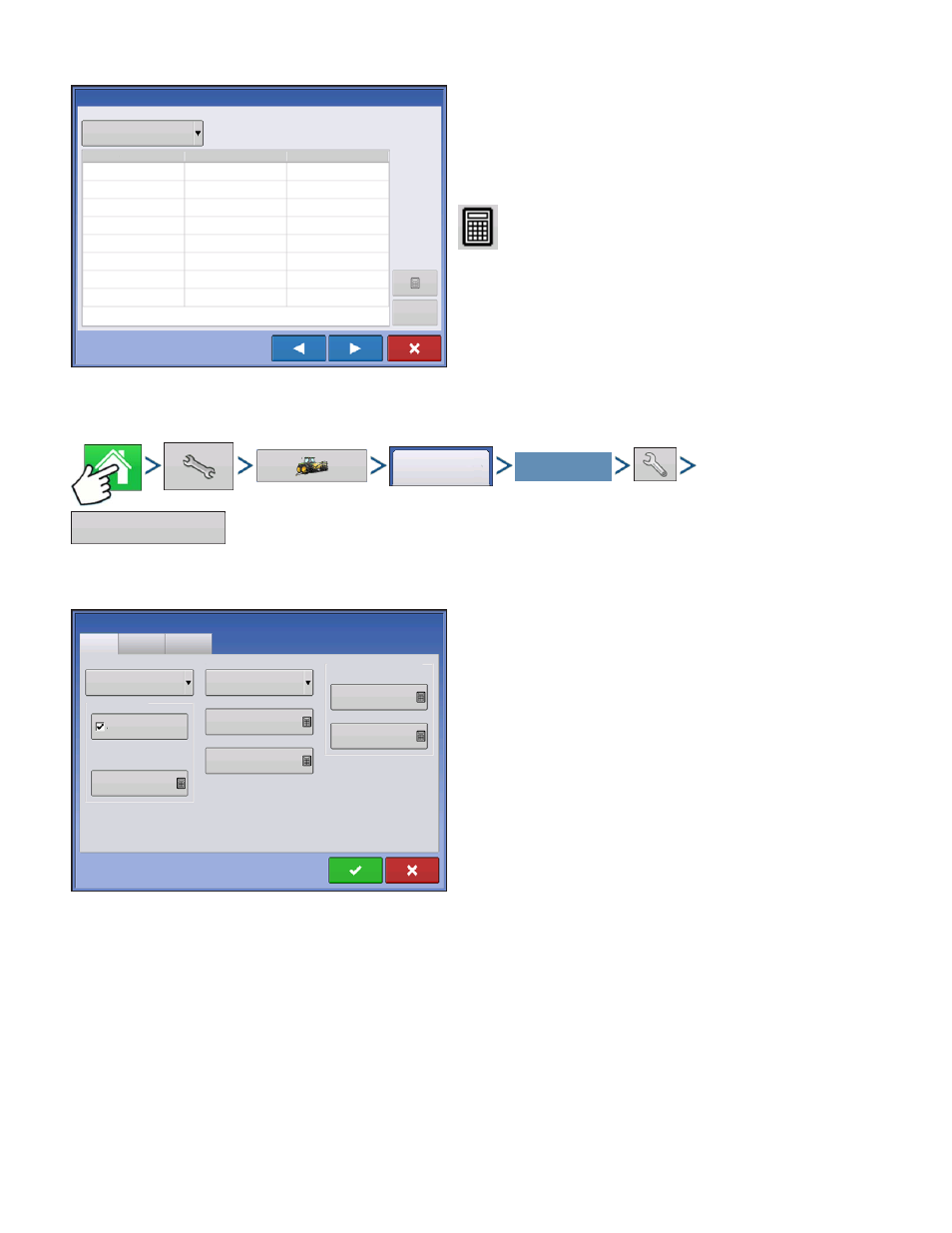

At the Down Force Options screen, the operator can
choose a Down Force configuration from the drop
down menu:
The rows listed are the recommended rows where the
sensors should be installed.
The operator can assign rows if custom installed.
Row 1 is the on the left side of the planter (when
standing behind the planter facing forward).
S
ETUP
D
OWN
F
ORCE
C
ONFIGURATION
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Down Force button
Down Force screen General tab
Down Force Mode
• Monitor Only (default)
- Allows user to monitor the weight on the gauge wheels but does not adjust down pressure.
- Control Settings (Automatic Hold and Hydraulic Pressure to Down Force Conversion) are grayed out
when using Monitor Only mode.
• Control
- Allows user to monitor the weight on the gauge wheels and have system automatically adjust down
force.
Automatic Hold: a feature which holds down force at last know force per channel when AutoSwath
turns off a section.
Down Force Configuration
2 Channel, 4 Sensor
Channel Sensor Row
1
1
1
1
2
2
2
2
1
2
3
4
1
2
3
4
2
7
18
23
11
12
13
14
Operating Configuration Wizard: Down Force Options
Configuration
Select Your Specific
Configuration
Down
Force
Hydraulic Pressure To
Down Force Conversion
Channel 2 Channel 1 General
Down Force Mode
Control
Control Settings
Automatic Hold
6.24 PSI/lb
Gauge Wheel Sensor
John Deere
Uplift Force
0 lb
Maximum Force
Gauge Wheel Load Alarm
448.79 lb
Minimum Load
Time Threshold
20 lb
3 s
Down Force
